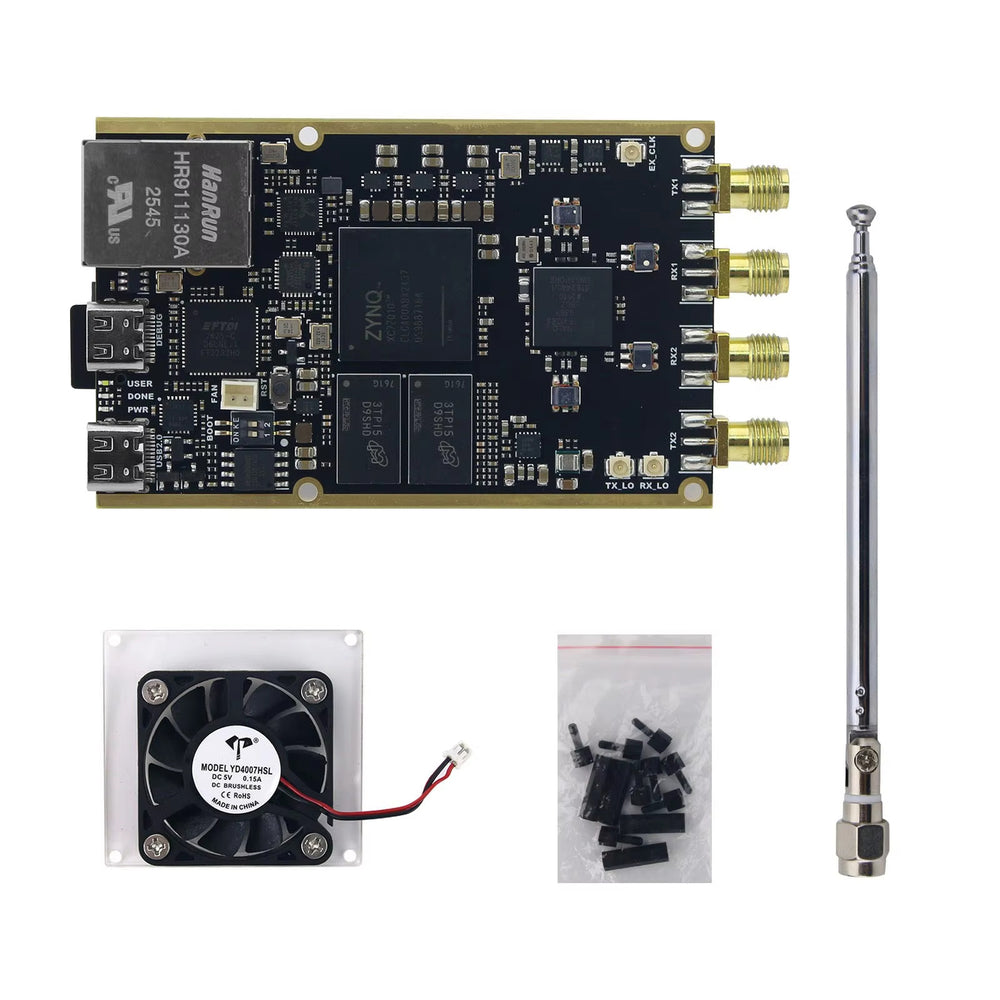

HamGeek 70MHz-6GHz Zynq7010+AD9363 SDR Software Defined Radio Development Board for Pluto SDR MATLAB - Black

Improvements:

Adopting new domestic balun, the performance is better than before.

Features:

1) AD9363 chip, replacing AD9361, with frequency range of 70MHz~6GHz. Current laboratory tests show that there is not significant differences between these two chips.

2) Board size: about 5 x 8cm

3) Peripheral: double DDR, 1GB

4) For N25Q128 FLASH, can be used to start.

5) One channel SD card, can be used to start.

6) Integrated FT2232 debugger, with serial port.

7) PS end USB2.0.

8) PS end gigabit Ethernet port.

9) PL end with crystal oscillator, can drive AD9363 with pure PL.

10) Support external input of local oscillator.

11) Support AD9363 external input clock

Supported Software:

For IIO Oscillscope, SDR Sharp, GNU Radio, MATLAB, and other software that support for libiio.

Package Included:

1 x SDR Development Board

1 x Antenna
