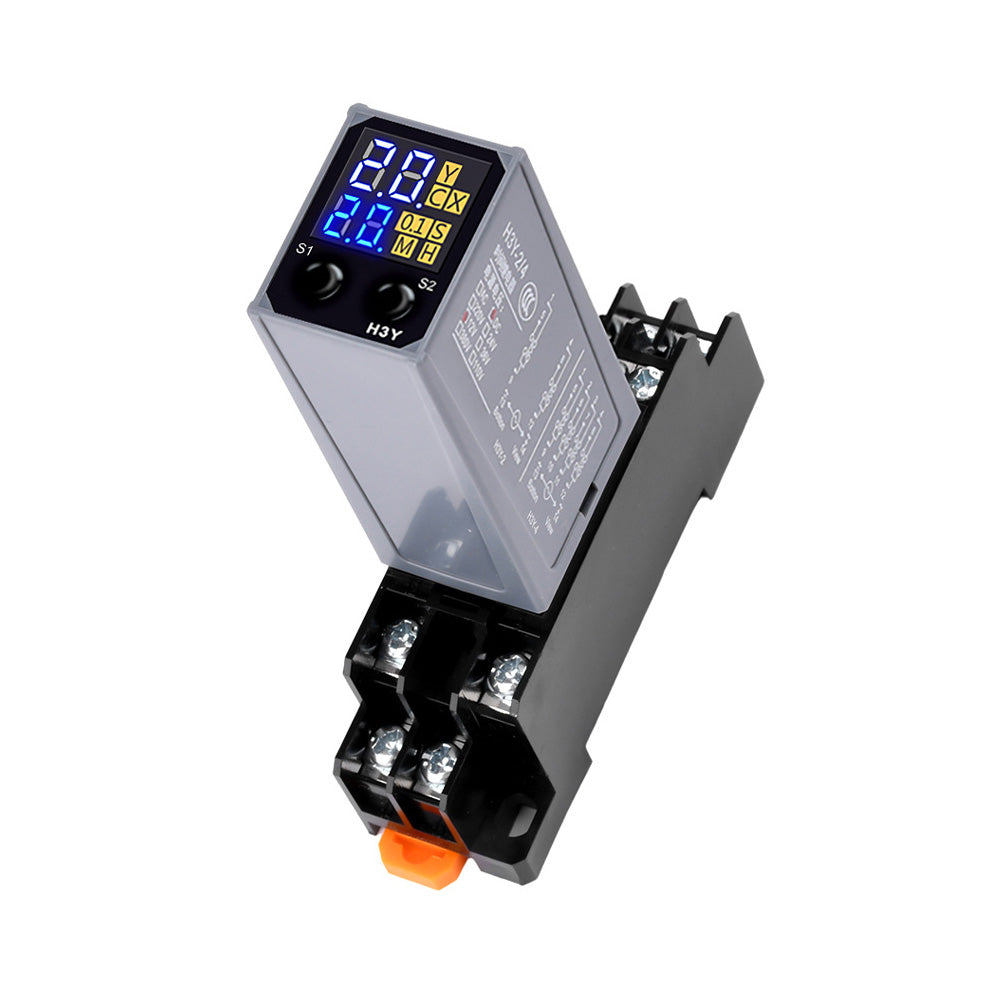

H3Y-2 LCD Time Relay AC 220V DC 12V 24V Adjustable Digital Display Dual Time Control Cycle Delayer with Base High-Precision Timing

• Voltage: 12V

Specifications:

>>>Manual: Click here to open<<<

Product Name: Time Relay (8 pins/2 open and 2 closed)

Voltage: DC 12V, DC 24V, AC 220V (optional)

Time Range: 0.1s-99h

Time Error: 1%

Power Consumption: Max. 1.5VA

Environmental Temperature: -25~75℃

Permissible Voltage Range: 90-110% of rated voltage

Features:

1. Robust and Safe Construction:

Constructed with a PC casing that is resistant to fire and high temperatures, providing enhanced safety during operation. This robustness ensures that the device remains functional and secure even under extreme conditions, offering reliability for various applications.

2. Clear and Intuitive Display:

Features an LED high-definition screen that delivers a clear and intuitive digital display. This allows for easy monitoring and setting adjustments, enhancing user experience by ensuring that all necessary information is easily visible and accessible.

3. High-Performance Contacts:

Incorporates silver contacts which provide stable performance, resistance to oxidation, and high work efficiency. This leads to reliable and consistent operation, minimizing the risk of contact-related failures even under frequent use.

4. Premium Pin Materials:

Equipped with large capacity pins made from copper galvanized material. These pins offer a high melting point and strong resistance to oxidation and corrosion, ensuring excellent conductivity and longevity in diverse environmental conditions.

5. Versatile Delay Modes:

Supports four delay modes including power-on delay, delayed release, cycle delay, and cycle delay number setting. This versatility allows the time relay to be used in a wide range of timing applications, making it adaptable to different user requirements and operational scenarios.

Package included:

1 x Time Relay

1 x Base
