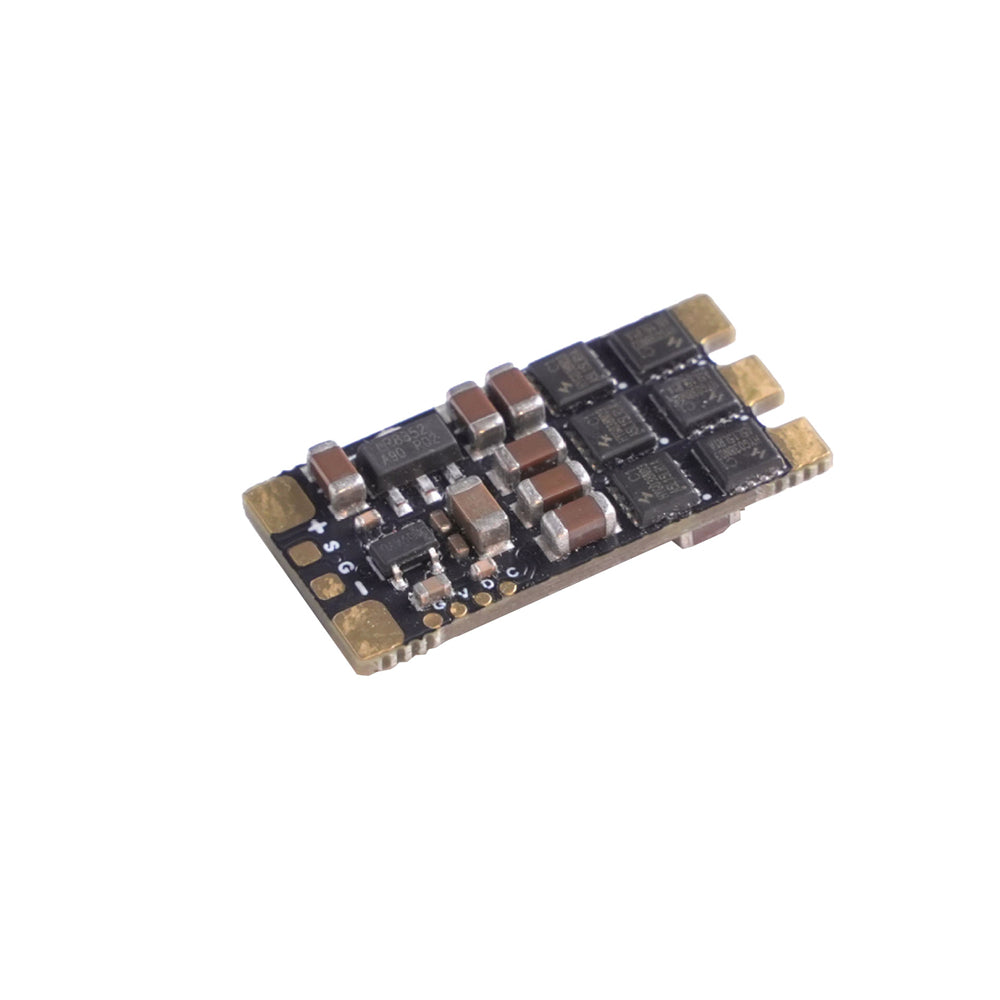

GMRC-25A AM32 2-5S 32-bit Single ESC for RC FPV Racing Drones Support PWM / DSHOT300 / DSHOT600

Note: The default firmware KV value is set to 980KV. As shipped, it is configured for 2312-class motors; if using high-KV motors such as 2207 or 2306, the corresponding KV value must be adjusted within the ground station software.

Specification:

Product Name: GMRC-25A 32-bit Single ESC
Supported Voltage: 2-5S
BEC Output: None
Max Current: 25A (10s)
Continuous Current: 20A
Main Controller Type: AT32F421 G8U7
Gate Driver: JS1801/6288Q
Firmware Type: AM32 2.20PB4
Supported Protocols: PWM / DSHOT300 / DSHOT600
Forward/Reverse: Supports Bidirectional Control (Car-mode PWM 1500)
Telemetry: Supports Dshot Bidirectional Telemetry for RPM/Temperature Data
Dimensions: 25mm × 12mm × 4.6mm
Weight: 5.3g

Package Included:
1 x Single ESC
