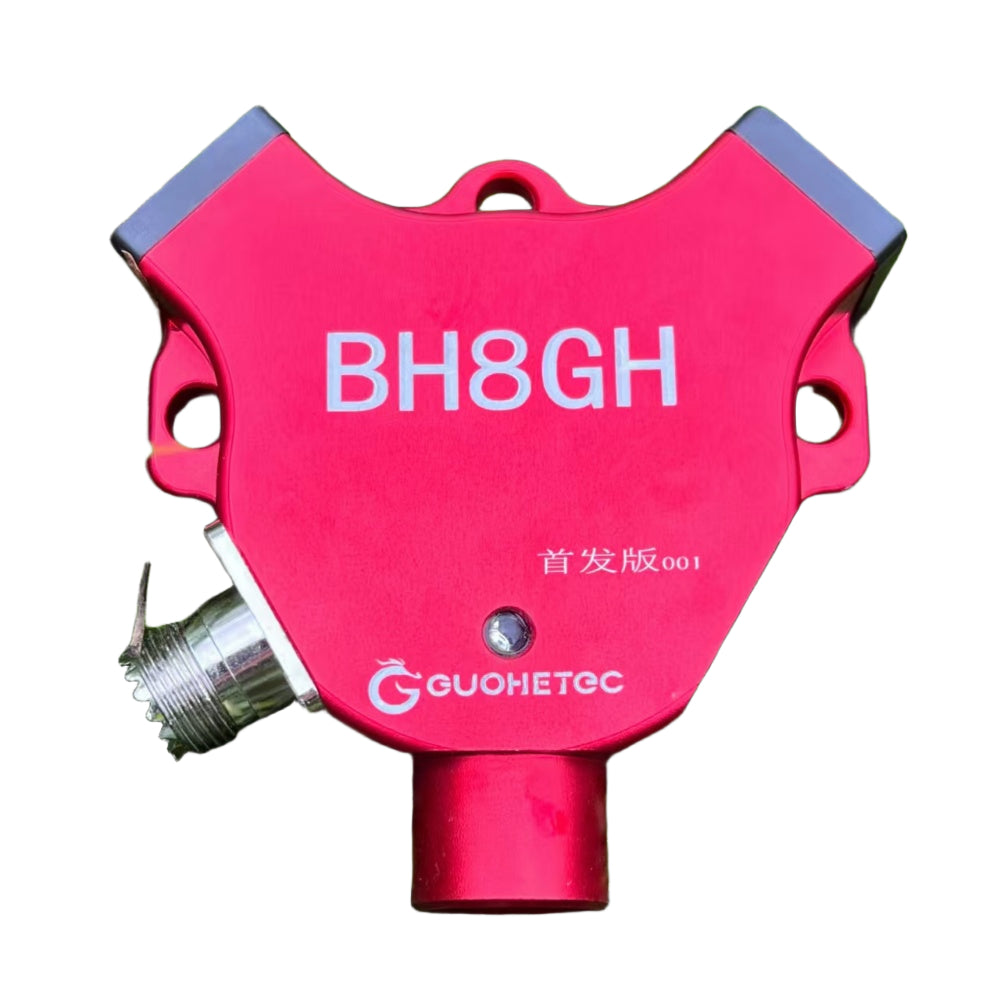

GH-V5 7MHz-430MHz HF UHF VHF Antenna 400W Short Wave Portable Dipole Antenna - Red

Product Overview:
The GH-V5 is a portable V-shaped symmetrical antenna for HF-VHF-UHF band communication (7MHz-430MHz). It features wide frequency coverage, flexible deployment, and stable signal transmission. Ideal for amateur radio communication and field emergency scenarios.

Features:
- Wide Band Coverage: Supports HF-VHF-UHF multi-band communication
- Portable Design: Adjustable telescopic rods for quick field setup
- Long-lasting Construction: Aluminum alloy + stainless steel materials
- Weather Resistance: IP68 waterproof balun
- Read before use: Do not exceed 400W power input.

Specifications:
- Frequency Range: 7MHz-430MHz (supports 7/14/18/21/24/28/29/50/144/430MHz)
- Impedance: 50Ω
- VSWR: ≤1.5:1 (adjusted)
- Max Power: 400W
- Material:
Main Body: 6061 high-strength aluminum alloy
Telescopic Rods: 201 stainless steel (anti-rust, lightweight)
- Extended Length: Adjustable single rod (53cm-560cm)
- Working Angle: 90° V-shape
- Weight:
- Balun: 310g±10
- Total Antenna: 890g±10 (excluding 7M oscillator)
- Operating Conditions: -30°C to 60°C, IP68 waterproof balun

Package Includes:
1× Balun
2× 5.6m telescopic oscillator rods
2× 10m antenna oscillators
1× Flexible storage pouch

(Note: The stand is not included.)
