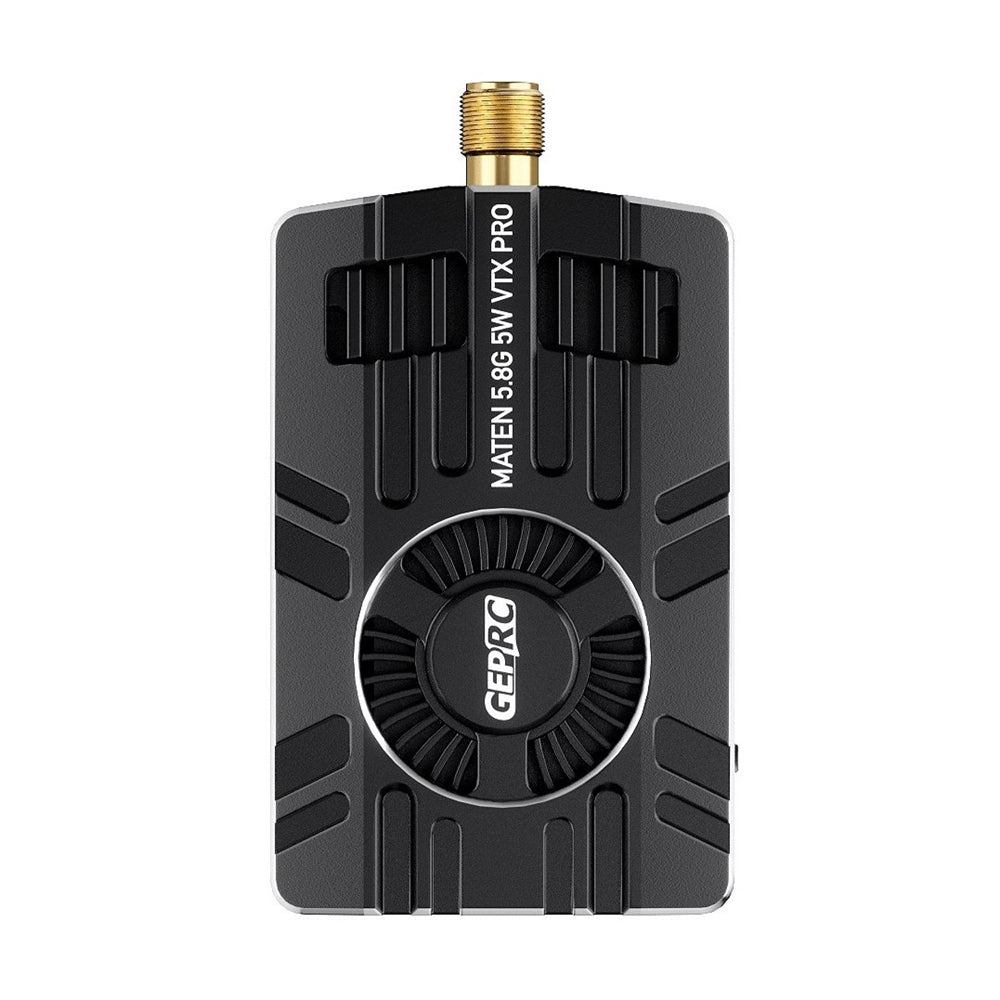

GEPRC MATEN 5.8GHz 5W VTX PRO, 80CH, 4.9-5.8GHz, 300/600/1600/3000/5000mW, Up to 15km, IRC Tramp OSD, Built-in Mic, CNC Aluminum + Turbofan Cooling, SMA, 7-36V, 5V 600mA Out, 20×20 & 25.5×25.5mm, 49.5g, for Extreme Long-Range FPV Drone - Black
Description
5 Watts. 15 Kilometers. The Long-Range Benchmark. GEPRC engineered the MATEN 5W VTX PRO for pilots who measure distance in kilometers, not meters. Five adjustable power levels with real-world range projections based on line-of-sight open area: Power Level Projected Range Use Case - Pit Mode — Safe bench configuration, zero interference - 300mW 2 – 3 km Moderate range, general flying - 600mW — Intermediate long-range testing - 1600mW 5 – 7 km Serious long-range missions - 3000mW 8 – 10 km Extended cross-c0untry flights - 5000mW 12 – 15 km Extreme range—mountain surf, beyond visual limits
80 Channels. 4.9-5.8GHz Full Spectrum.
Unlike standard 40CH VTX modules locked to the 5.8GHz band, the MATEN 5W spans 4.9GHz to 5.8GHz with 80 channels. Access the quieter 4.9GHz low band for long-range. Use standard 5.8GHz channels for general flying. Switch via IRC Tramp protocol through your Betaflight OSD. One VTX covers the entire usable FPV spectrum.
CNC Aluminum + Active Turbofan. 5W Runs Cool.
Five watts generates serious heat. The MATEN 5W manages it with a dual-cooling system: a high-strength CNC aluminum alloy shell (60×33.2×19.1mm) that passively conducts heat away from the RF electronics, and a built-in micro turbofan that actively forces air through the housing. Temperature control protection automatically reduces output power if temperatures exceed safe limits—preventing burnout while keeping your video link alive.
Built-in Microphone. Hear Your Flight.
The MATEN 5W carries a built-in microphone that captures real-time flight audio—motor RPM, wind shear, prop wash, environmental sounds. That audio streams alongside your video feed, synced to every frame. Diagnose mechanical issues by sound. Add immersion to DVR playback. Most high-power VTXs transmit in silence. The MATEN doesn't.
IRC Tramp. Full OSD Control.
Configure all settings—channels, bands, power levels, frequency selection—through your Betaflight OSD via IRC Tramp protocol. Buried deep in a long-range fuselage? No problem. One function button and three indicator LEDs provide manual backup. No physical access required for everyday operation.
7-36V Input. 5V 600mA Camera Output.
Direct 7-36V (2S-8S) LiPo input covers every battery configuration. Integrated 5V/600mA output powers your FPV camera or additional cooling fan directly—no separate BEC, no extra wiring. Note: 5V output is for camera/fan only. Do NOT connect battery power to 5V port.
Dual Mounting Patterns. Every Frame.
20×20mm (M2) and 25.5×25.5mm (M2) mounting holes. Fits compact 3-inch builds through 7-inch+ long-range rigs. SMA connector with included SMA adapter for flexible antenna configuration. SH1.25 6-pin cable interface.
Key Features
* 5W MAX POWER – 6 LEVELS: Pit / 300mW / 600mW / 1600mW / 3000mW / 5000mW. Up to 15km projected range. Dial exact power per mission.
* 80CH / 4.9-5.8GHZ FULL SPECTRUM: Twice the channels of standard 40CH VTX. Access 4.9GHz low band through 5.8GHz standard band. One VTX. Every frequency.
* BUILT-IN MICROPHONE: Real-time motor and environmental audio transmitted alongside video. Immersive DVR playback. Mechanical diagnostics by sound.
* CNC ALUMINUM SHELL + TURBOFAN: Passive conduction + active forced air. Temperature control protection prevents thermal damage. Runs cool at full 5W output.
* IRC TRAMP PROTOCOL: Full OSD control via Betaflight. Switch channels, bands, and power levels without touching the VTX.
* 7-36V INPUT / 5V 600MA OUT: Direct 2S-8S LiPo power. Integrated camera/fan supply. Note: 5V for camera/fan only.
* DUAL MOUNTING: 20×20MM & 25.5×25.5MM M2: Fits compact builds and standard stacks. 60×33.2×19.1mm. 49.5g.
* SMA CONNECTOR + ADAPTER INCLUDED: Standard SMA interface. Adapter cable included for flexible antenna configuration.
Specification:
| Brand: | GEPRC |
| Model: | MATEN 5.8G 5W VTX PRO |
| Projected Range: | Up to 15KM (Line-of-Sight Open Area) |
| 300mW | 2–3km |
| 1600mW | 5–7km |
| 3000mW | 8–10km |
| 5000mW（Full Power） | 12–15km |
| Dimension: | 60×33.2×19.1mm |
| Mounting Hole Size： | 20x20mm(M2),25.5×25.5mm(M2) |
| Output Power: | 300mW/600mW/1600mW/3000mW/5000mW/Pit mode |
| Frequency： | 4.9-5.8GHz |
| Channels: | 80CH |
| Input Voltage: | DC7-36V（2-8S Battery） |
| Output Voltage: | 5V@600mA |
| Protocol: | IRC Tramp |
| Antenna Connector: | SMA |
| Cable Connector: | Sh1.25 6pin |
| Microphone: | Built-in microphone |
| Weight: | 49.5g（VTX only） |
[Range Reference Table]
| Power Level | Projected Range (Line-of-Sight Open Area) |
|---|---|
| 300mW | 2 – 3 km |
| 1600mW | 5 – 7 km |
| 3000mW | 8 – 10 km |
| 5000mW (Full Power) | 12 – 15 km |
Note: Actual range depends on environmental factors, antenna choice, receiver sensitivity, local RF interference, and regulatory power limits. Projections based on ideal line-of-sight open area conditions.
Notes:
1. Installing antenna before use.
2. Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
3. The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.
Package included:
1 x MATEN 5.8G 5W VTX PRO VTX
1 x SMA(Internal needle) to SMA (Internal hole) connector
1 x sh1.25 6P connection cable
6 x M2*5 screw
6 x M2*6 screw
1 x Manual
