FNIRSI-FNB48P Ammeter Voltmeter USB Tester TYPE-C Fast Charge Detection Trigger Capacity Ripple Measurement with CNC Metal Shell
$32.99
In Stock
Description
Features:
- Professional USB power analyzer for chargers, cables and power banks
- Measures voltage (3.8-24V), current (0-6.5A) and power (up to 156W) with 0.00001 resolution via external 16-bit ADC

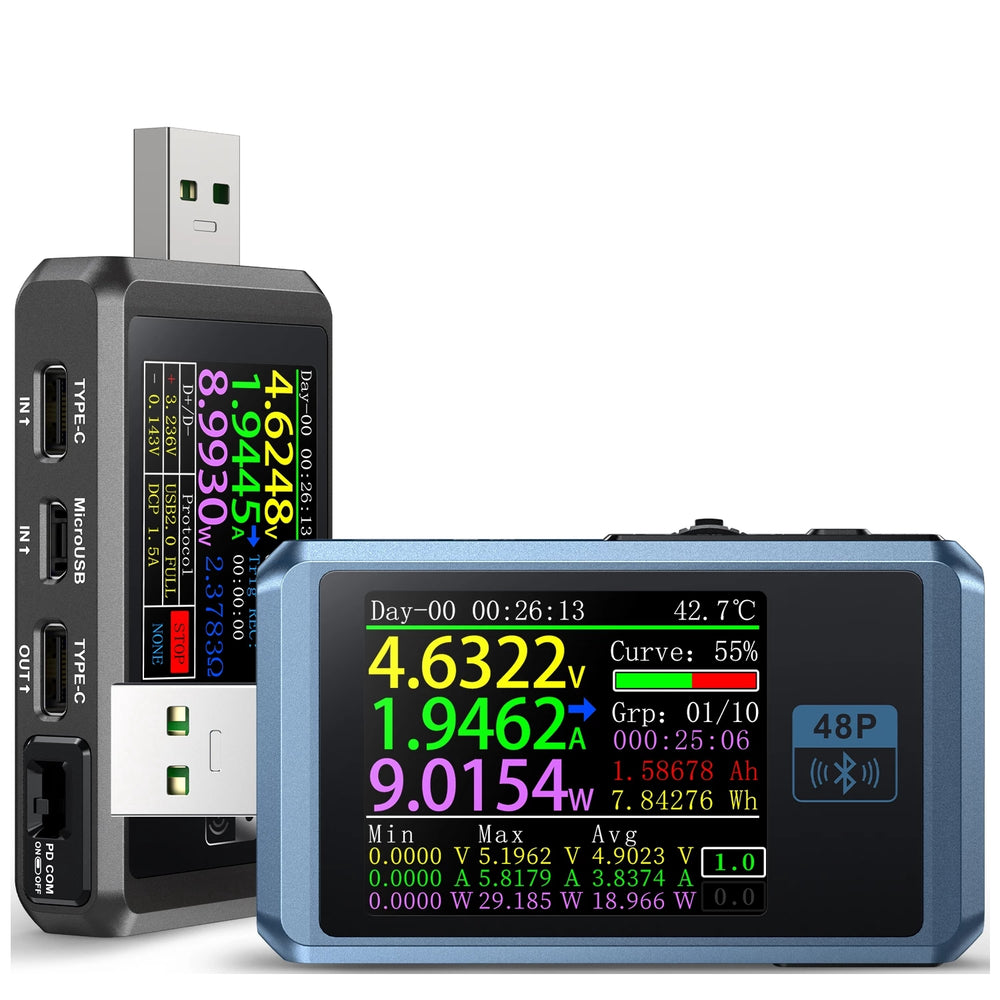

- Color TFT display with numeric and oscilloscope-style graphic view, 360-degree rotating screen
- Fast charge protocol detection and trigger: QC2.0/QC3.0, PD2.0/3.0, Huawei FCP/SCP, Samsung AFC, Apple 2.4A, VOOC/WARP/SuperVOOC, MTK PE
- Triple interface: USB-A, Micro-USB and Type-C, with USB-A in/out, USB-C in/out and dedicated PD COM port
- PD E-Marker cable detection: reads CC line data and e-marker chip information
- Cable resistance measurement (0-9999.9 ohm), battery capacity (0-9999.99Ah) and energy (0-9999.99Wh) statistics
- Data recording up to 99 days with PC connectivity for firmware upgrade and analysis
