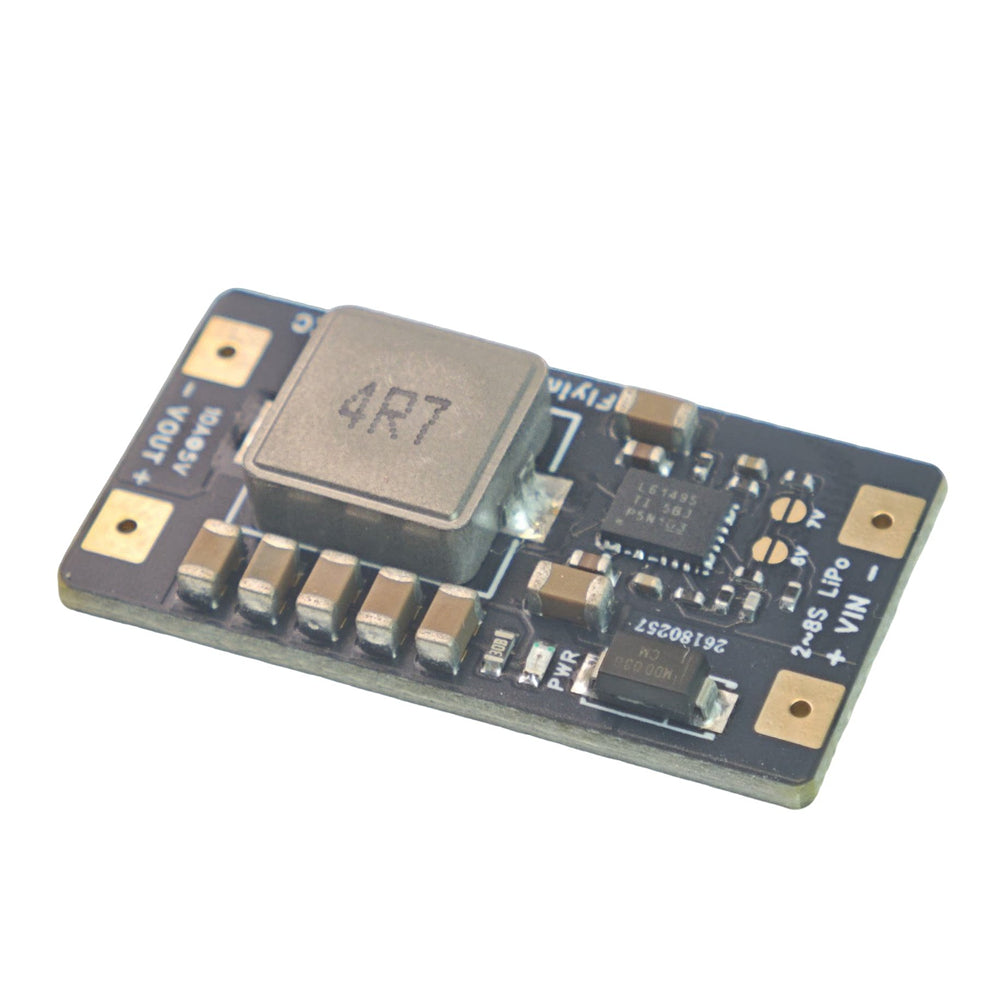

10A 8S Mini BEC 5V / 6V / 7V Step Down Module & 16V 680μF Capacitor & Heatsink for RC FPV Racing Drones
Description
Specification:
Item name: 10A 8S BEC
Input voltage: 6–36V, 2–8S LiPo (Input voltage must be at least 0.8V higher than the set output voltage)
Output voltage: Selectable 5V, 6V, or 7V
Output current (continuous):
- No cooling (no heatsink, no airflow): 5V 8A, 6V 8A, 7V 7A
- With cooling (heatsink or airflow): 5V 10A, 6V 10A, 7V 9A
- Output current (peak/instantaneous): 5V 12A, 6V 11A, 7V 10A
Dimensions: 33.9mm (L) x 18.5mm (W) x 5.5mm (H); 10.3mm (H) with heatsink attached
Weight: 5g (unit only), 7.6g (with heatsink), 9g (with heatsink and capacitor)
PCB layers: 4 layers
PCB thickness: 1.60mm
Immersion gold finish: Yes (1μm)
Features:
- Compact, high-performance BEC step-down module.
- Uses the LM61495 chip; 36V voltage rating.
- Current-loop control for maximum responsiveness; ideal for powering servos.
- Maximum peak output current of 12A.
- Continuous output of 8A without cooling.
- Continuous output of 10A with cooling.
Package Included:
| Bare BEC Board (Self-soldering) | 1 x BEC |
| With Heatsink & Pre-soldered Capacitor |
1 x BEC 1 x Heatsink |
| Full Kit with Heatsink & Pre-soldered Components |
1 x BEC 1 x Heatsink 1 x Welding line |
| Pre-soldered Capacitors & Wires (No Heatsink) |
1 x BEC 1 x Welding line |
