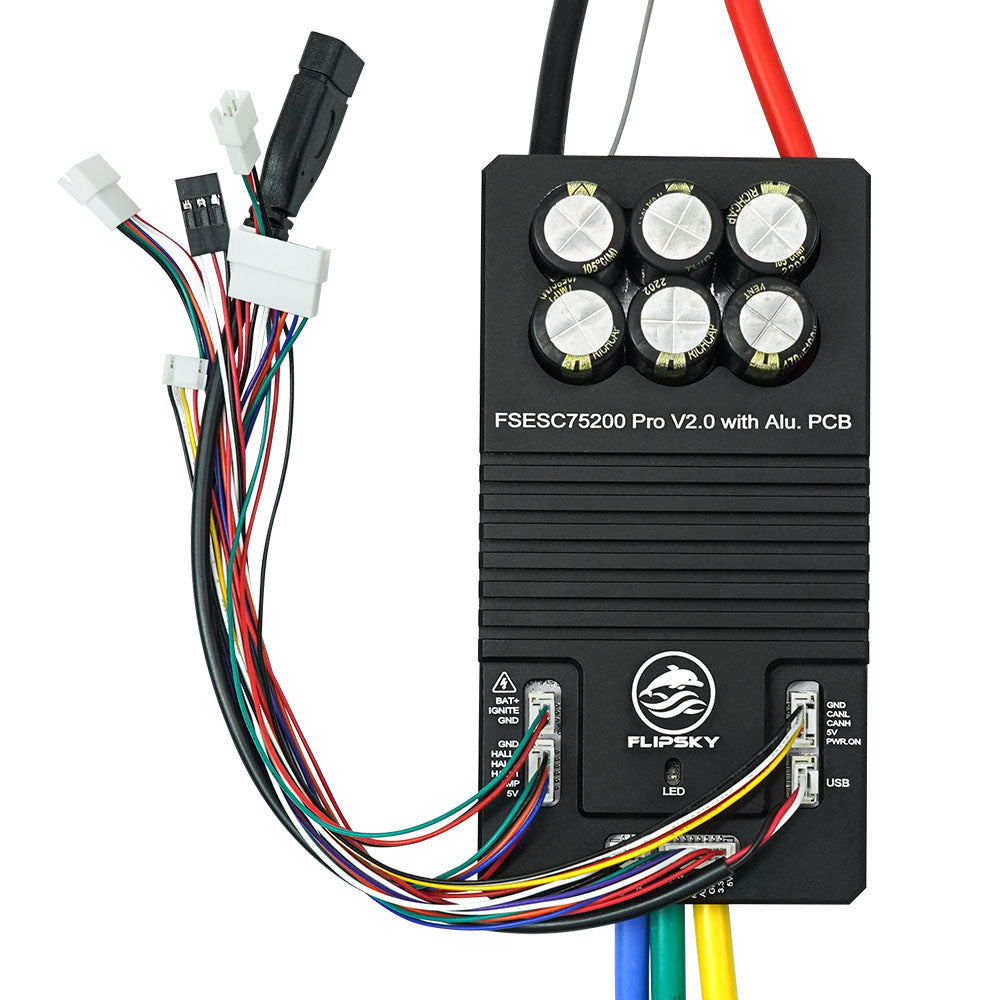

75200 Pro V2.0 With Aluminum PCB Based on VESC Power Button For Electric Skateboard Electric Scooter Ebike Speed Controller - Black

Specification:
Model: 75200 Pro V2.0
Firmware: 6.02, supports firmware upgrade
Voltage: 14-84V (safe for 4-20S)
Continuous current:50v/200A: 75V/150A(Values depend on the mounting, abbient temperature and air/water circulation around the device!)
Burst current: 300A
BEC: 5V@1A
Support Modes: DC, BLDC, FOC (sinusoidal)
ERPM: 150000
Communication Ports: USB, CAN, UART, SPI, IIC
Supported Sensors: ABI, HALL, AS5047, AS5048A
Input Source Support: PPM, ADC, NRF, UART
Supported Sensorless: Yes
Regenerative capacity: Yes
Size:130x68x41mm
Motor/power wire size: 8 AWG
Phase Filter: Yes
Power Switch Button: Red

Feature:
* Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, MOSFETs / motor over temperature protection.
* Support various control modes: Current / Duty cycle / Speed / PID control modes.
* Support the function of balancing the car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
* CPU: 32F405 with frequency 168MHz
* Aluminum PCB with good heat dissipation to expand life span.
* 75200 Pro V2.0 aluminum substrate single drive: supports single serial port function, and integrates Bluetooth module function (convenient to connect Bluetooth parameters and read data in real time), and built with power on/off switch.

Package included:
1 x Flipsky 75200 Pro V2.0 With Aluminum PCB Based on VESC
1 x Manual
1 x USB Cable
