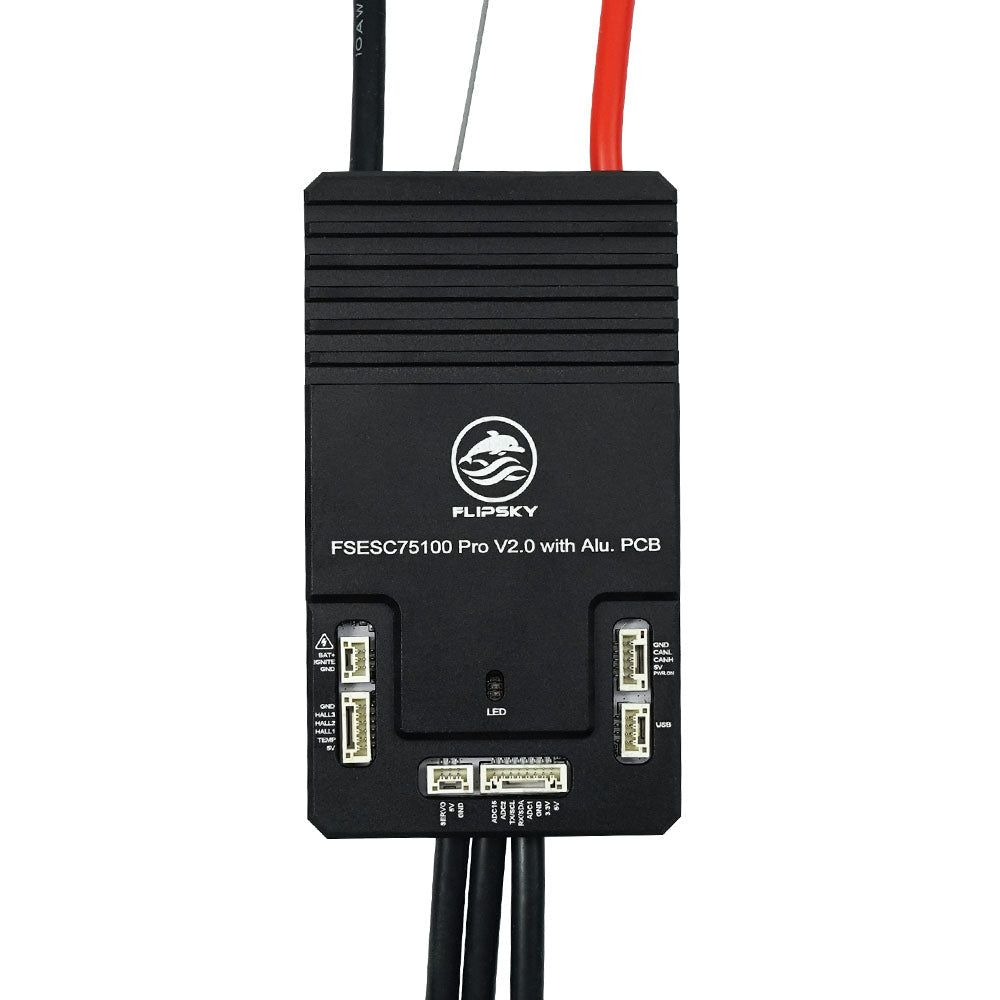

75100 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard Electric Scooter Ebike Speed Controller - Black
$119.99
In Stock
Description
Specification:
Model: 75100Pro V2.0 With Aluminum PCB Speed Controller
Firmware: 6.02 (firmware update supported)
Size: L103mm*W58mm*H27.7mm
Voltage:14-84V (4-20S)
Current:100A Continuous
BEC:5V@1.5A
Support BLDC square waves mode control and FOC sine wave mode
ERPM:150000
Control Interface Ports: USB, CAN, UART
Supported Sensors: ABI, HALL, AS5047, AS5048A
Input Set Support: PPM, ADC, NRF, UART
Wire Size: 10AWG(75100 Pro)
Programmable: Yes
Regenerative Capacity: Yes
Phase Filter: Yes
Power Switch Button: Red
integrates Bluetooth module function
The maximum peak current is 150A
The absolute maximum current is recommended to be set to 200A
Package included:
1 x FLIPSKY 75100Pro V2.0 With Aluminum PCB Speed Controller
1 x USB Cable
1 x Manual
