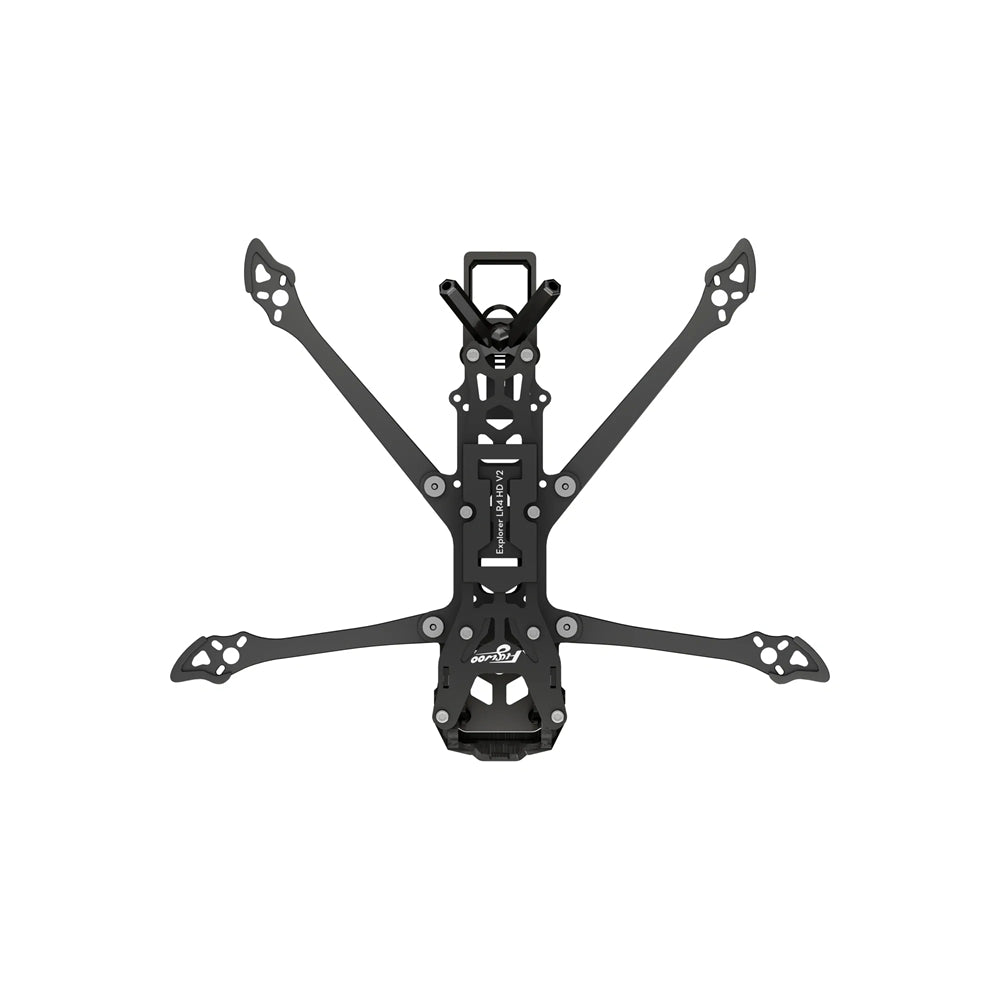

Explorer LR 4 V2 4 Inch Frame Kit / Corner Bumpers / TPU Set / Hardware Pack / Damper-ball / Top Plate / Middle Plate / Bottom Plate for DIY RC FPV Racing Drones
Description
Product Description:
Explorer LR 4 V2 Frame Kit is a lightweight 4-inch FPV long-range frame kit for pilots building their own Explorer LR platform.
The V2 frame uses a revised camera damping structure with four rubber damper balls. This design supports DJI O3, DJIO4 Wide, DJIO4 Pro and Walksnail Pro kit air unit installation.
The frame provides planned mounting space for FC + ESC, VTX, GPS and FLYWOO Finder, while keeping the structure light and practical to maintain.
Specification:
Model: Explorer LR 4 V2
Product Name: 4 Inch Frame Kit $ Frame Parts (Optional)
4 Inch Frame Kit:
Category: 4-inch long-range FPV frame kit
Frame Weight: Approx. 52g net frame weight
Camera Structure: V2 damping structure with four rubber damper balls
Camera Size Support: 20 x 20mm
Air Unit Support: DJI O3 / DJI O4 Wide / DJI O4 Pro / Walksnail Pro kit air unit installation
Motor Mount Hole: φ9mm / φ12mm
FC + ESC Mounting: 16 x 16mm / 20 x 20mm mounting hole patterns
FC + ESC Installation Space: Approx. 19.5mm height x 32.5mm width
VTX Mounting: 16 x 16mm / 20 x 20mm / 25.5 x 25.5mm mounting hole patterns
VTX Installation Space: Approx. 19.5mm height x 43mm width
Reserved Mounting Positions: GPS and buzzer / FLYWOO Finder mounting positions
Recommended Accessories(not included): FLYWOO Finder V1.0 and GOKU GM10 Mini GPS
Product Highlights:
- 52g lightweight frame kit for 4-inch long-range FPV builds.
- V2 damping camera structure with four rubber damper balls.
- Supports DJI O3, DJI O4 Wide, DJI O4 Pro and Walksnail Pro kit air unit installation.
- Camera supports 20 x 20mm size.
- Motor mount hole supports φ9mm and φ12mm.
- FC + ESC mounting supports 16 x 16mm and 20 x 20mm hole patterns.
- VTX mounting supports 16 x 16mm, 20 x 20mm and 25.5 x 25.5mm hole patterns.
- Reserved mounting positions for GPS and FLYWOO Finder.
-I ncludes TPU mounts, straps, pads, damper parts and hardware set.
Package Included:
1 x Explorer LR 4 V2 Frame Kit / Frame Parts (Optional)
