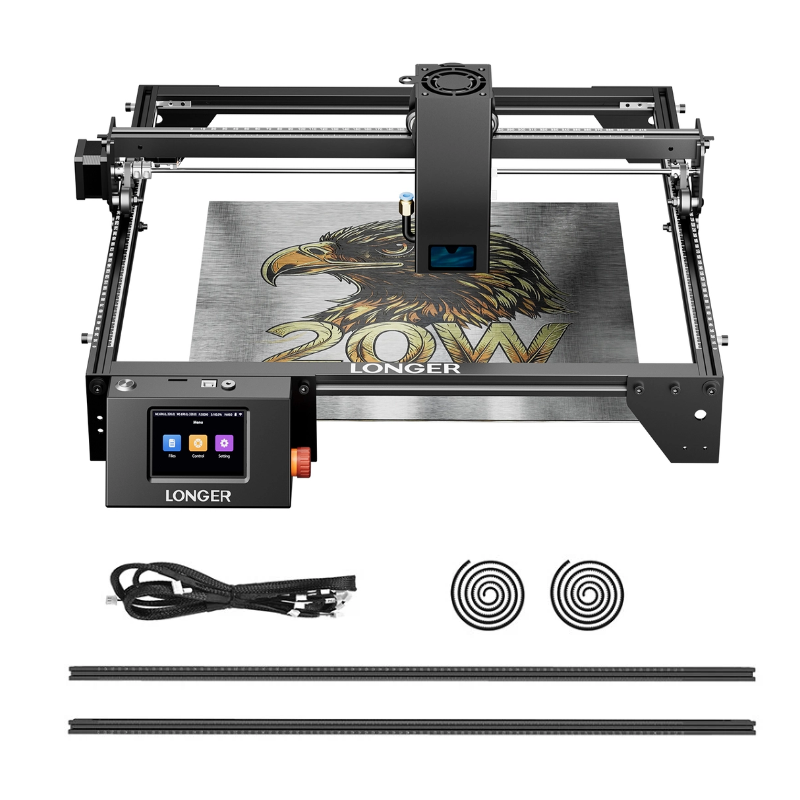

[EU/US Direct]LONGER RAY5 20W Laser Engraver Cutter Newly Upgraded Version 24000mm/min Engraving Speed Fixed Focus 400x365mm Working Area+ Longer RAY5 Extension Kit

Specifications:
[LONGER RAY5 20W Laser Engraver Cutter]:
Module:RAY5(Newly Upgraded Version) Laser Output Power: 20W Machine Power: 120W Motherboard: 32-bit Laser Wavelength: 450nm Laser Spot Size: 0.08 x 0.01mm Focal Length: Fixed focus (50mm) Engraving Speed: 24,000mm/min Software: LaserGRBL, LightBurn (with AI features) Engraving Area: 400 x 365mm (15.75 x 14.37inches) Emergency Stop Button: Standard Flame Detector: Standard Output Voltage: DC 24V 5A Input Voltage: AC 110-240V File Formats: JPG, PNG, BMP, GIF, SVG, AI, etc. Net Weight: 4.55kg Gross Weight: 5.55kg Machine Dimensions: 610 x 670 x 200mm Package Dimensions: 620 x 300 x 130mm Offline Engraving: Supported Screen Size: 3.5 inches Connectivity: USB/TF Card/Wi-Fi Limit Switches: Included Air Assist Port: Air pump interface included; automatic start/stop based on the design Focus Adjustment: Fixed-focus spacer Profile Markings: Screen-printed scale Y-axis Structure: Single-motor synchronous drive via optical shafts X-axis Structure: Pulley system

[Longer RAY5 Extension Kit]:
Model: RAY5
Application Model: for Longer RAY5 Laser Engraver

Features:
[LONGER RAY5 20WLaser Engraver Cutter]:
1.20W Powerful Cutting Longer Ray5 20W Laer engraver can cut 0.59"/15mm pine wood and 0.31"/8mm acrylic in one pass, 25mm wood and 35mm acrylic in multiple passes, in addition to 0.002"/0.05mm stainless steel. 2.0.08*0.1mm High Accuracy Laser Spot With newly upgraded 32 bits chipsets, the motherboard works more smoothly and stably. The advanced built-in 256-bit color scale with 0.08*0.1mm ultra-fine laser focus area achieves a finer engraving result and a higher contrast effect. 3.3.5inch Color Touchscreen & 4 Connection Methods Longer RAY5 20W laser engraver equips a 3.5-inch color touchscreen with a user-friendly interface that allows the users to directly operate the machine through the touchscreen, such as checking the engraving progress, adjusting the engraving speed, or other operations. And it supports WiFi, APP, USB cable, and TF cards data transmission. 4.Multicolor Engraving The 20W high-energy laser beam instantly oxidizes the metal surface, bringing rich colors to fulfill your colorful creative needs. 5.Safety Protections A laser emergency stop will be triggered when tilted, flame, data connection interruption, and laser head freezing over 15 seconds are detected. In addition, the panoramic filter glass can effectively filter the laser and protect the eyes, safer to use. 6.Multiple Machines Control One computer can control multiple RAY5 laser engravers work parallelly, Whether it is RAY5 5W, RAY5 10W, or RAY5 20W, and improve the production efficiency. 7.Wide Compatibility RAY5 20W laser engraver is compatible with various mature carving software, such as LaserGRBL, and LightBurn, and supports Windows 7+, mac0S, and Linux; carving file formats support JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc.

[Upgraded Details]

1.The maximum engraving speed is raised from 10,000 mm/min to 24,000 mm/min for a 140% speed improvement. 2.The upgraded mainboard includes an air pump control port for automatic air pump start and stop matching engraving and cutting work; old mainboards have no such port and require manually controlled external air pumps for troublesome use. 3.Mainboard supply voltage is upgraded from 12V to 24V to unify voltage standards across all Ray5 models. 4.Updated mainboard firmware brings better machine stability and simpler operation. 5.The app's AI features now support Text-to-Image and Image-to-Image to generate custom patterns for personalized engraving. 6.A rod-style Wi-Fi antenna replaces the old adhesive antenna for faster and more stable data transmission. 7.Ray5 5W and 10W adopt a dovetail slot with L-shaped thumbscrew laser head lock instead of the original cylindrical thumbscrew for easier focal length adjustment. 8.A limit post and mechanical limit structure are fitted on the right profile to prevent machine damage caused by misoperation. 9.Timing belts are fixed with washers rather than direct screw clamping to lower belt damage risks. 10.Redesigned frame corner brackets work without front-back distinction during installation for easier assembly.

[Longer RAY5 Extension Kit]:
1. Simply replace the Y axis to quickly expand the working area of the laser engraver:
Ray5 5W/10W expanded from 400*400mm² to 400*850mm²,
Ray5 20W expanded from 375*375mm² to 375*825mm².
2. Stable structural design ensures high-quality engraving and cutting even at maximum speed and large area.
3. Suitable for large-area creation and batch creation to achieve higher work efficiency.

Package Include:
1x LONGER RAY5 20WLaser Engraver Cutter
2x Y-axis Crossbeam Aluminum Profiles
2x Synchronous Belts
1x Combined Cable
3x Zip Ties
1x Instruction Manual
