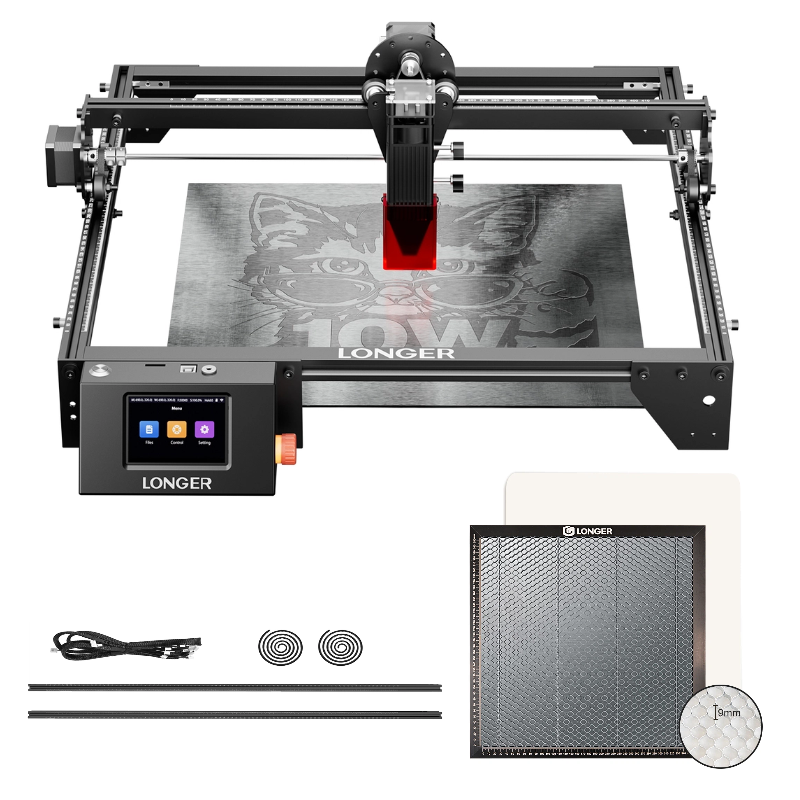

[EU/US Direct] LONGER RAY5 10W Laser Engraver Newly Upgraded Version 24000mm/min Engraving Speed 0.06x0.06mm Laser Spot 3.5 inch Touch Screen 400x400mm Working Area+RAY5 Extension Kit+400x400mm Laser Bed Honeycomb

Specifications:

[LONGER RAY5 10W Laser Engraver]:

Module:RAY5(Newly Upgraded Version)

Laser Output Power: 10W Machine Power: 60W

Motherboard: 32-bit Laser Wavelength: 450nm Laser Spot Size: 0.06 x 0.06mm Focal Length: Fixed focus (50mm) Engraving Speed: 24,000mm/min Software: LaserGRBL, LightBurn (with AI features) Engraving Area: 400 x 400mm (15.75 x 15.75 inches) Emergency Stop Button: Standard Flame Detector: Standard Output Voltage: DC 24V 2.5A Input Voltage: AC 110-240V File Formats: JPG, PNG, BMP, GIF, SVG, AI, etc. Net Weight: 3.9kg Gross Weight: 4.9kg Machine Dimensions: 610 x 670 x 200mm Package Dimensions: 620 x 300 x 130mm Offline Engraving: Supported Screen Size: 3.5 inches Connectivity: USB/TF Card/Wi-Fi Limit Switches: Optional（Purchase Separately） Air Assist Port: Air pump interface included; automatic start/stop based on the design Focus Adjustment: Fixed-focus spacer Profile Markings: Screen-printed scale Y-axis Structure: Single-motor synchronous drive via optical shafts X-axis Structure: Pulley system

[Longer RAY5 Extension Kit]:
Model: RAY5
Application Model: for Longer RAY5 Laser Engraver

[400x400mm Laser Bed Honeycomb]:

Material: Iron and aluminum

Work SIze: 400*400*22mm³

Aperture Size: 9mm

Features:

[LONGER RAY5 10W Laser Engraver]:

1.More Powerful Functions & Wide Applicable Materials Ray5 10w with 3.5-inch touch screen added new functionality like multiple ways for data transfer and multiple machines control. Compared to other laser engravers, it can engrave up to 1000+ materials. 2.Ultrafine Laser Point & 10W Powerful Laser Module With dual beam technology, Ray5 10W has a stronger laser power, which enables better cutting and engraving capacity. It is able to cut 20mm thick wood board and 30mm acrylic. It features 400x400mm engraving size and 24000mm/min engraving speed.Ray5 adopts the latest compressed laser technology, which generates an ultra-fine laser spot of 0.06x0.06mm, two times thiner than ordinary lasers. 3.Offline Engraving & Multiple Ways for Data Transfer It supports offline engraving and cutting functions, so there's no computer connection is needed while engraving and cutting, making the operation easier for you to meet various DIY requirements. Wi-Fi, USB cable, APP, and TF cards are supported to transfer the data. 4. Safety Protection LONGER RAY5 10W laser engraver is designed with flame protection, move protection, and motionless protection functions. When Ray5 detects any accidental flame while working, flame protection will automatically stop the laser and generate a continuous buzz alarm. When the engraving machine is accidentally displaced or tilted, the machine will automatically shut down for personal safety. And the laser will be turned off automatically when the laser module is frozen for over 15 seconds. 5.32-Bit Chipset Ray5 is built with an ESP32 chipset, which is running at 240MHz. Faster and more powerful than comparably equipped machines with the 8-bit chipsets. 6.Wide Software Compatibility This machine is compatible with various mature carving software, such as LaserGRBL and LightBurn. It supports Windows 7+, mac0S, and Linux, supports JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc. carving file formats.

[Upgraded Details]

1.The maximum engraving speed is raised from 10,000 mm/min to 24,000 mm/min for a 140% speed improvement. 2.The upgraded mainboard includes an air pump control port for automatic air pump start and stop matching engraving and cutting work; old mainboards have no such port and require manually controlled external air pumps for troublesome use. 3.Mainboard supply voltage is upgraded from 12V to 24V to unify voltage standards across all Ray5 models. 4.Updated mainboard firmware brings better machine stability and simpler operation. 5.The app's AI features now support Text-to-Image and Image-to-Image to generate custom patterns for personalized engraving. 6.A rod-style Wi-Fi antenna replaces the old adhesive antenna for faster and more stable data transmission. 7.Ray5 5W and 10W adopt a dovetail slot with L-shaped thumbscrew laser head lock instead of the original cylindrical thumbscrew for easier focal length adjustment. 8.A limit post and mechanical limit structure are fitted on the right profile to prevent machine damage caused by misoperation. 9.Timing belts are fixed with washers rather than direct screw clamping to lower belt damage risks. 10.Redesigned frame corner brackets work without front-back distinction during installation for easier assembly.

[Longer RAY5 Extension Kit]:
1. Simply replace the Y axis to quickly expand the working area of the laser engraver:
Ray5 5W/10W expanded from 400*400mm² to 400*850mm²,
Ray5 20W expanded from 375*375mm² to 375*825mm².
2. Stable structural design ensures high-quality engraving and cutting even at maximum speed and large area.
3. Suitable for large-area creation and batch creation to achieve higher work efficiency.

[400x400mm Laser Bed Honeycomb]:

1. Protect desk from laser damage & better engraving/cutting effect

2. 15.7"x15.7"x0.86"/400x400x22mm³ large size honeycomb working table
3. 9mm aperture size, the best airflow during use, more effective smoke exhaust
4. Made of iron and aluminum, more sturdy and faster heat dissipation
5. Suitable for most laser engraver

Package Include:
1x LONGER RAY5 10W Laser Engraver

2x Y-axis Crossbeam Aluminum Profiles
2x Synchronous Belts
1x Combined Cable
3x Zip Ties
1x Instruction Manual

1x 400x400mm Laser Bed Honeycomb Working Table
