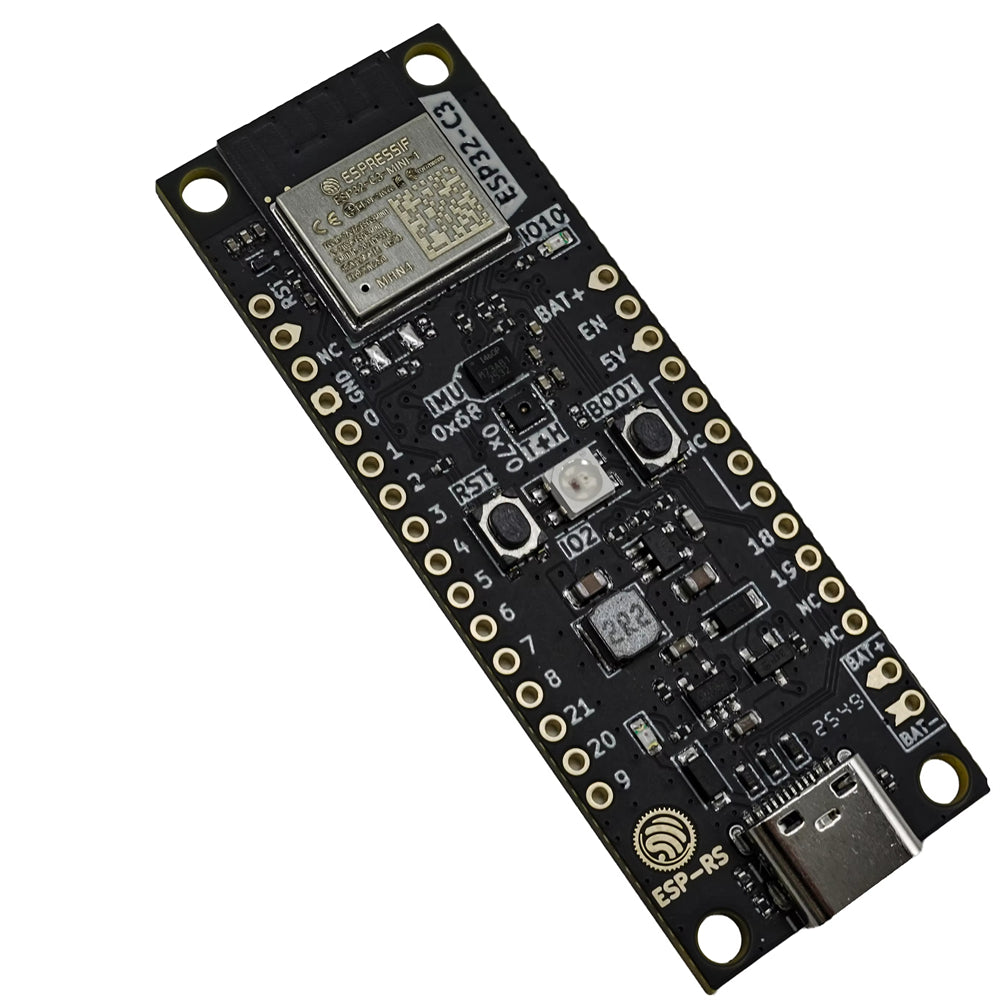

Espressif ESP32-C3 DevKit-RUST-2 Development Board WiFi bluetooth LE IMU SHTC3 Temperature Humidity Sensor Module Type-C - Black
$39.99
In Stock
Description
Specifications:
Core module: ESP32-C3-MINI-1 with Wi-Fi and Bluetooth Low Energy coexistence; integrates 4 MB SPI flash
User LED: GPIO LED connected to GPIO10
IMU: ICM-42670-P, connected via I2C interface
Temperature & humidity sensor: SHTC3, connected via I2C interface
Boot button: Hold Boot and press Reset to enter Firmware Download mode via the serial port
RGB LED: Addressable RGB LED driven by GPIO2
Battery charging: Built-in charging circuit for single-cell lithium batteries; red LED indicates charging
USB Type-C port: USB‑CDC power supply and communication interface for flashing and debug
Power regulation: 5 V to 3.3 V buck converter
Reset button: Restarts the system
Pin headers: Most available GPIO pins broken out on both sides for external access; breadboard friendly
Features:
1. Based on ESP32-C3-MINI-1 with 4 MB SPI flash and Wi-Fi + Bluetooth LE for connected projects.
2. Onboard ICM-42670‑P IMU and SHTC3 temperature/humidity sensor, both on I2C.
3. Single-cell Li‑ion charging circuit with a red charge-indicator LED.
4. USB Type-C USB‑CDC for board power, firmware flashing, and debugging.
5. Prototyping friendly: pin headers on both sides, user LED on GPIO10, RGB LED on GPIO2, Boot/Reset control.
Package included:
1 x ESP32-C3-DevKit-RUST-2 Development Board
