ESP32 WROOM-32U WROVER WiFi Module with 2.4G Antenna Development Board
Description
Description:
ESP32 DevKitC is an entry-level ESP32 development board. The integrated ESP32 pin on the board has been led out for easy connection and use. It can be used to evaluate all ESP32 modules and chips, and can be easily inserted into the test board.
Size: 48.1 * 27.8mm
Package Includes:

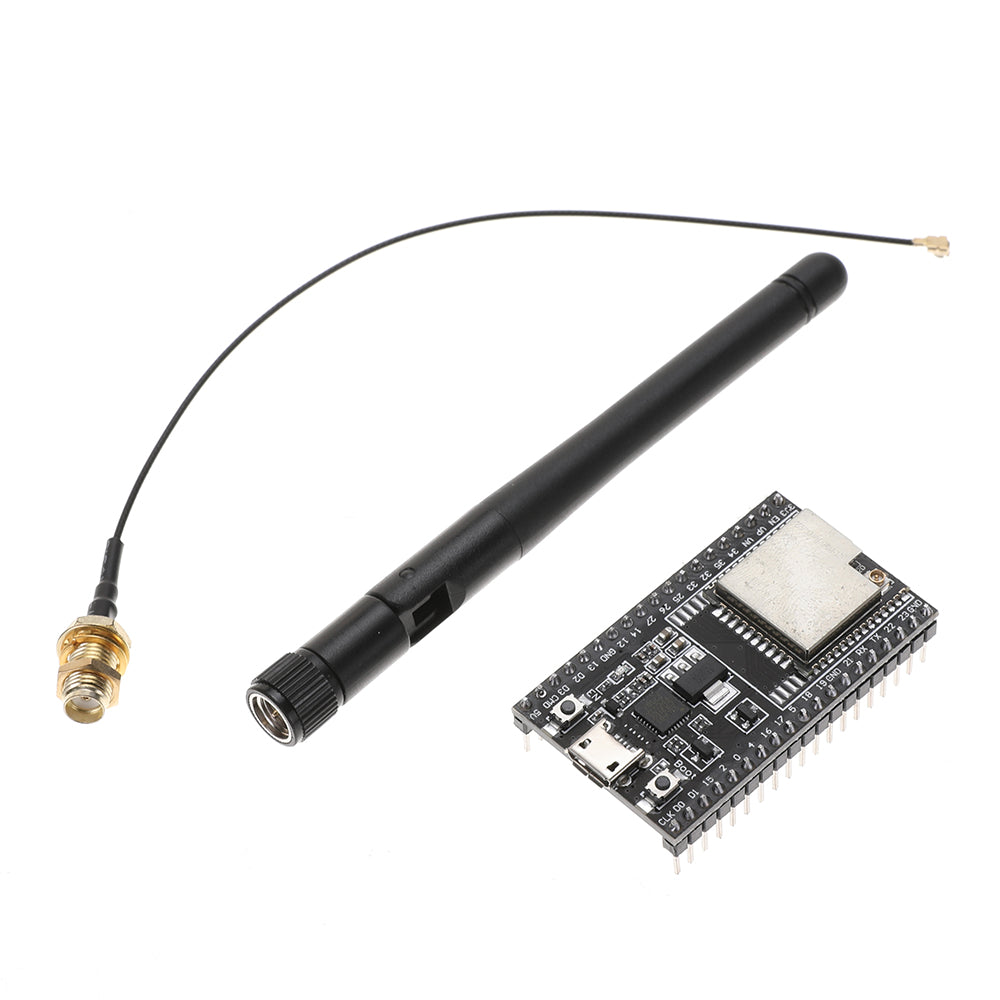

1x WROOM-32U Development Board
1x Antenna
>>>ESP32-WROOM-32U chip data: Click here to open<<<
Pinout:
J2:
| No. | Name | Type ① | Function |
| 1 | 3V3 | P | 3.3 V power supply |
| 2 | EN | I | CHIP_PU, Reset |
| 3 | VP | I | GPIO36, ADC1_CH0, S_VP |
| 4 | VN | I | GPIO39, ADC1_CH3, S_VN |
| 5 | IO34 | I | GPIO34, ADC1_CH6, VDET_1 |
| 6 | IO35 | I | GPIO35, ADC1_CH7, VDET_2 |
| 7 | IO32 | I/O | GPIO32, ADC1_CH4, TOUCH_CH9, XTAL_32K_P |
| 8 | IO33 | I/O | GPIO33, ADC1_CH5, TOUCH_CH8, XTAL_32K_N |
| 9 | IO25 | I/O | GPIO25, ADC2_CH8, DAC_1 |
| 10 | IO26 | I/O | GPIO26, ADC2_CH9, DAC_2 |
| 11 | IO27 | I/O | GPIO27, ADC2_CH7, TOUCH_CH7 |
| 12 | IO14 | I/O | GPIO14, ADC2_CH6, TOUCH_CH6, MTMS |
| 13 | IO12 | I/O | GPIO12, ADC2_CH5, TOUCH_CH5, MTDI |
| 14 | GND | G | Ground |
| 15 | IO13 | I/O | GPIO13, ADC2_CH4, TOUCH_CH4, MTCK |
| 16 | D2 | I/O | GPIO9, D2 ② |
| 17 | D3 | I/O | GPIO10, D3 ② |
| 18 | CMD | I/O | GPIO11, CMD ② |
| 19 | 5V | P | 5 V power supply |
J3:
| No. | Name | Type ① | Function |
| 1 | GND | G | Ground |
| 2 | IO23 | I/O | GPIO23 |
| 3 | IO22 | I/O | GPIO22 |
| 4 | TX | I/O | GPIO1, U0TXD |
| 5 | RX | I/O | GPIO3, U0RXD |
| 6 | IO21 | I/O | GPIO21 |
| 7 | GND | G | Ground |
| 8 | IO19 | I/O | GPIO19 |
| 9 | IO18 | I/O | GPIO18 |
| 10 | IO5 | I/O | GPIO5 |
| 11 | IO17 | I/O | GPIO17 ③ |
| 12 | IO16 | I/O | GPIO16 ③ |
| 13 | IO4 | I/O | GPIO4, ADC2_CH0, TOUCH_CH0 |
| 14 | IO0 | I/O | GPIO0, ADC2_CH1, TOUCH_CH1, Boot |
| 15 | IO2 | I/O | GPIO2, ADC2_CH2, TOUCH_CH2 |
| 16 | IO15 | I/O | GPIO15, ADC2_CH3, TOUCH_CH3, MTDO |
| 17 | D1 | I/O | GPIO8, D1 ② |
| 18 | D0 | I/O | GPIO7, D0 ② |
| 19 | CLK | I/O | GPIO6, CLK ② |
① (1,2) P: Power supply; I: Input; O: Output. ② (1,2,3,4,5,6) The pins D0, D1, D2, D3, CMD and CLK are used internally for communication between ESP32 and SPI flash memory. They are grouped on both sides near the USB connector. Avoid using these pins, as it may disrupt access to the SPI flash memory/SPI RAM. ③ (1,2) The pins GPIO16 and GPIO17 are available for use only on the boards with the modules ESP32-WROOM and ESP32-SOLO-1. The boards with ESP32-WROVER modules have the pins reserved for internal use.
