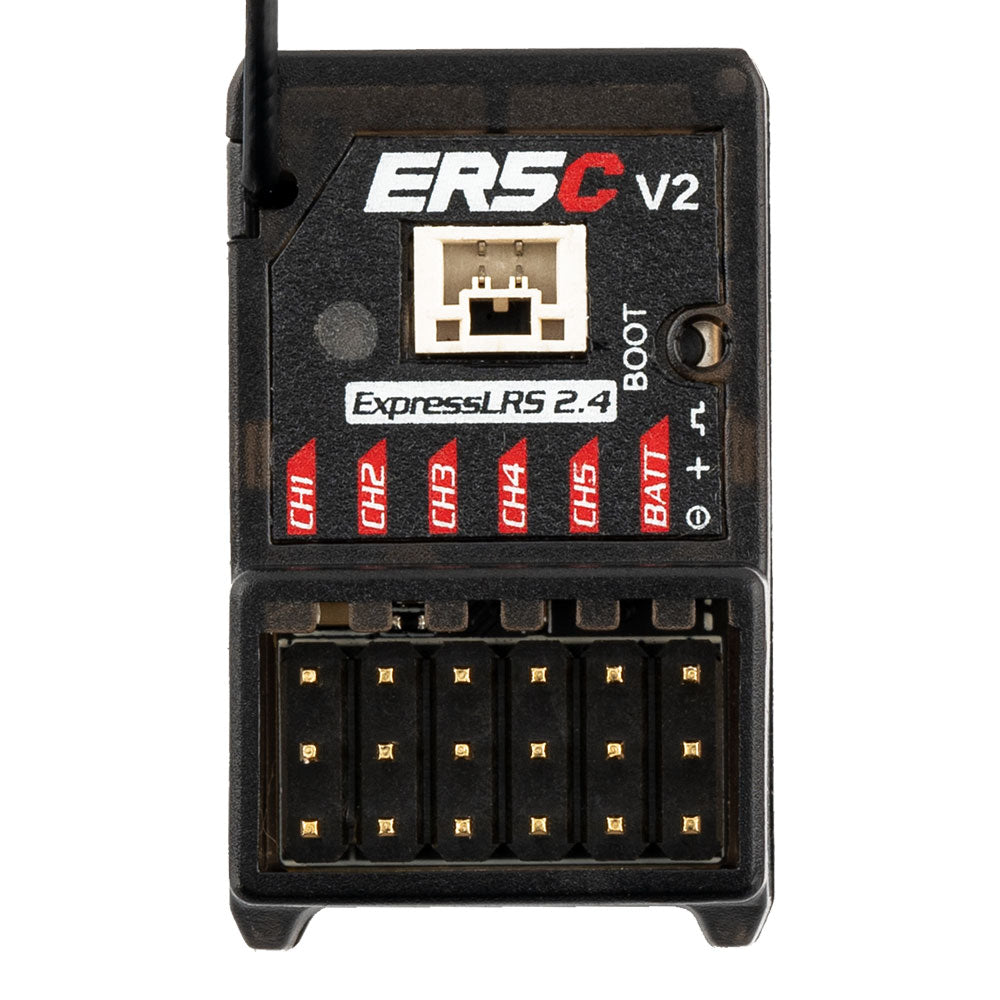

ER5C V2 2.4GHz 5CH ELRS PWM RX Receiver for RC Airplane Car Boat MT12 Radio Controller
Description
- RC Drone Spare Parts: Radio Receiver
- Control Channels: 5 Channels
- Frequency: 2.4GHz
Radiomaster ER5C V2 2.4GHz 5CH ELRS PWM RX Receiver for RC Airplane Car Boat MT12 Radio Controller
ER5C V2 receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-quick response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience. The ER5C V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. It is designed for all types of surface & marine R/C applications.
Description:
Item: ER5C V2 2.4GHz ELRS PWM Receiver Power supply: DC 4.5-8.4V Antenna type: High-sensitivity antenna Wireless Protocol: ELRS 3.3.0 pre-installed Channels: 5 Telemetry Voltage Detection Range: DC 4.0 - 35V RF Telemetry: Yes Telemetry Power: 10mw Weight: 5.7 grams Size: 30.0 * 18.5 * 13.0mm Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5C 2.4GHz PWM RX
Features:
* Based on the Revolutionary ExpressLRS System
* High performance, high reliability, flexible configuration, quick response speed and ultra-long range
* Support 5 PWM Channels
* Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
* Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
* Optimized ground up PCB design
* Supports Wi-Fi updates and WEBUI configuration
* Compact size, easy to install. Perfect for surface & marine R/C applications
Package Included:
1 * ER5C V2 2.4GHz ELRS PWM Receiver
1 * Voltage telemetry wire
1 * User Card
