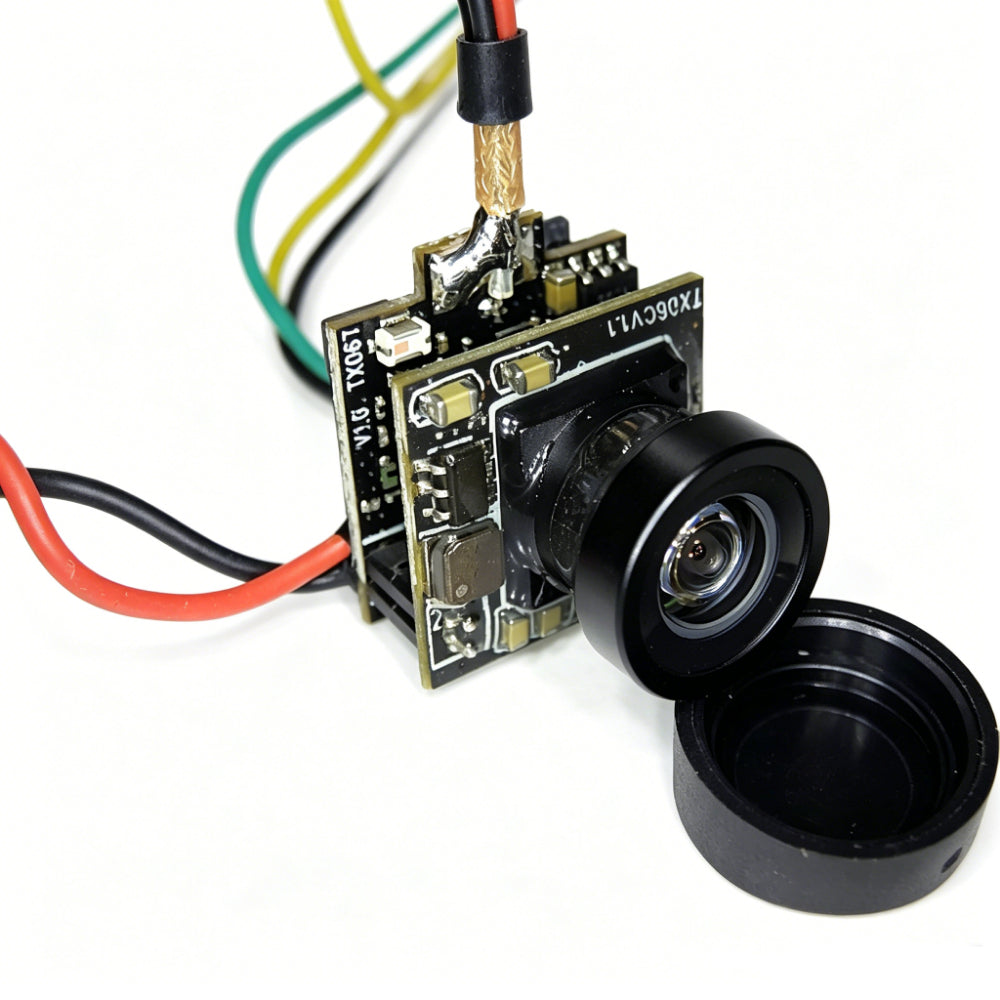

Eachine TX06 5.8GHz 48CH AIO FPV Camera VTX, 700TVL, 120° FOV, 25mW, SmartAudio, Pit Mode, OSD, 3.3-5.5V, 2.8g, NTSC/PAL for Tiny Whoop Toothpick Drone

Four Components. One Board. Zero Extra Wiring. The TX06 integrates everything you need for a complete analog FPV system onto a single 14×13.8mm board: a 700TVL camera, a 5.8GHz 48CH 25mW VTX, a brass dipole antenna, and OSD capability. No separate VTX to mount. No camera-to-VTX wiring to route. No antenna connector to secure. Just provide 3.3-5.5V power from a 1S LiPo, and you're airborne with a full FPV feed. 700TVL on a 120° Wide-Angle Lens. 700TVL horizontal resolution delivers sharp, clear analog video—gate edges, obstacles, and ground textures resolve with clarity that budget AIOs blur. The 120° field of view provides excellent situational awareness for indoor whoop tracks and backyard proximity flying. NTSC or PAL selectable. M7 lens standard. Low power consumption preserves your 1S flight time. 48 Channels. 6 Bands. Including Raceband. Full 48CH coverage across 6 bands from 5474-5945MHz, including the critical Raceband for event flying. Find a clean frequency in any environment. SmartAudio support enables OSD configuration through your flight controller's UART—change channels, bands, and settings without touching the physical button. SmartAudio + Pit Mode. Full Control. The TX06 supports SmartAudio protocol for OSD configuration via FC UART. Customize and display real-time flight data—battery voltage, throttle, flight mode. Pit Mode allows safe bench configuration at ultra-low power without interfering with other pilots. The onboard button with dual LED groups (6 Blue for band, 8 Red for channel) provides manual backup with visual confirmation. 2.8 Grams. 1S Direct Power. At 2.8 grams (without mount), the TX06 adds virtually zero weight penalty. 3.3-5.5V input connects directly to a 1S LiPo. 280mA typical current consumption. The included Molex 1.25mm to JST-DS 2.0mm power cable provides plug-and-play connection. Optional 26×26mm or 19×19mm PLA camera mounts (sold separately) provide flexible installation on popular whoop frames. Button Control with LED Feedback. Short press: Cycle through 8 channels. Red LEDs show current channel. Press & hold 2s: Cycle through 6 bands. Blue LEDs show current band. LED combination: Blue LED1 + Red LED1 = Band 1, Channel 1 (5865MHz). Blue LED6 + Red LED8 = Band 6, Channel 8 (5600MHz). Memory function: Settings retained through power cycles. Key Features * 4-IN-1 AIO INTEGRATION: Camera + VTX + Antenna + OSD on a single 14×13.8mm board. No extra wiring. No separate components. Just add power. * 700TVL / 120° FOV: Sharp analog clarity. Wide-angle awareness for indoor whoop tracks and proximity flying. NTSC/PAL selectable. M7 lens. * 48CH / 6 BANDS (5474-5945MHZ): Full 5.8GHz coverage including Raceband. Find a clean channel anywhere. * SMARTAUDIO + PIT MODE: OSD configuration via FC UART. Real-time flight data overlay. Safe bench configuration. * 2.8G ULTRALIGHT: 14×13.8mm footprint. Adds virtually zero weight penalty to micro builds. * 1S DIRECT POWER (3.3-5.5V): Connect directly to 1S LiPo. 280mA typical current. Included Molex to JST-DS power cable. * DUAL LED GROUP CONTROL: 6 Blue LEDs for band. 8 Red LEDs for channel. Visual confirmation of settings at a glance. * SETTINGS MEMORY: Retains channel and band settings through power cycles.

Frequency Chart

LED Status Guide
