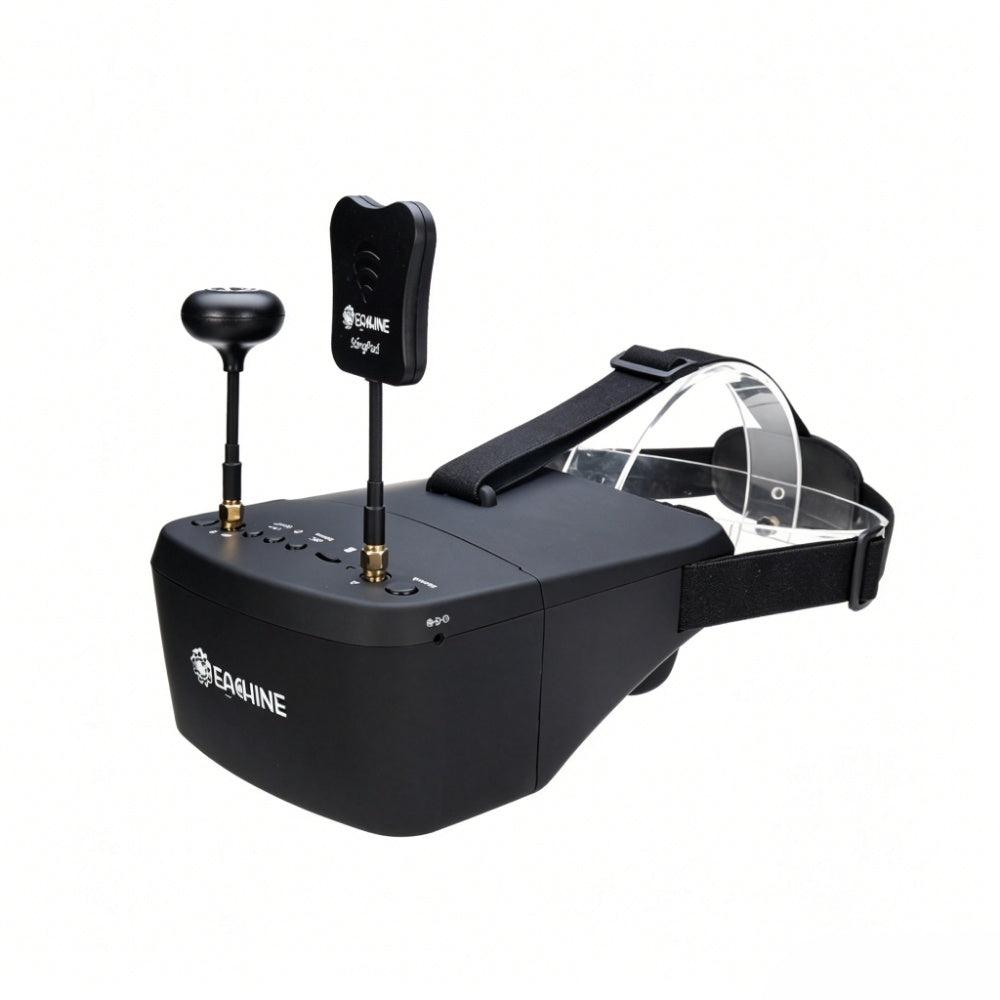

Eachine EV800D FPV Goggles 5.8GHz 40CH FPV Goggles 5" 800x480 HD DVR Diversity Dual RX5808 PRO Receiver Removable Screen with Battery for FPV Drone Racing
Description
- Screen Ratio: 4:3/16:9 Switchable
- Screen Size: 5.0 Inch
- Type: Analog Signal
- Brand: Eachine
- Camera Resolution: HD
- RC Drone Spare Parts: FPV Goggles
- Frequency: 5.8GHz
- Applicable User: Intermediate
- Interface Type: DC
- Application: Pilot
- EV800D cannot be used with framed glasses.
- Battery level is for reference only, runtime varies by usage. High brightness, 120Hz, diversity, DVR and head tracking drain power faster. Use charging cable for continuous power supply.
Feature
Experience Zero-Signal-Dropout Diversity with Dual RX5808 PRO Receivers. Two independent receiver modules with -90dB sensitivity continuously scan and lock the strongest signal. When one antenna fades behind trees or buildings, the second takes over instantly—no single-point failure, no frozen frames. Pair the included directional panel and omnidirectional clover antennas for full environmental coverage at fpv racing or long-range flights. Transform Your Goggles into a Standalone FPV Monitor in Seconds. The 5-inch 800×480 display delivers 600cd/m² brightness through a 3× magnification lens for immersive flight. Detach the screen, mount it to your radio controller via the tripod nut, or secure it to any standard 1/4-inch tripod screw. One display. Two form factors. Zero compromises. Record Every Flight at 720×576px with Zero Frame Loss. The dual-core chipset separates display processing from DVR recording—your feed stays lag-free while every moment is captured at full frame rate. Review racing lines, analyse crashes, share your best footage. Requires a C10 32GB microSD card. Playback directly through the goggle menu. Fly Up to 2 Hours on a Single Charge with Flexible Power Options. The included 3.7V 2000mAh battery (random shipment; older 7.4V 1200mAh version also available) delivers extended session time. Need more? Connect any 2S 7.4V or 3S 11.1V backup battery via the DC power cable. Recharge with the supplied 12V 2A adapter. See the Full Picture with 82° FOV, 92% Light Transmittance Lenses, and 40-Channel Coverage. Distortion-free optics with 3× magnification deliver a 140° horizontal by 120° vertical viewing angle. Switch between 16:9 and 4:3 aspect ratios. Full 5.8GHz analog coverage across 40 channels and 5 bands (A/B/E/F/R) ensures compatibility with every standard analog VTX. Three-way adjustable head strap balances weight for all-day comfort.
| Brand | Eachine |
| Model | EV800D – English manual |
| Frequency | 5.8GHz |
| Screen Size |
5.0 inch |
| Resolution |
800 × 480 |
| Brightness |
600 cd/m² |
| Aspect Ratio |
16:9 / 4:3 Switchable |
| Viewing Angle |
140°(H) / 120°(V) |
| Lens Magnification | 3× |
| Lens Transmittance |
92% |
| Receiver |
Dual RX5808 PRO Diversity |
| Sensitivity |
-90 dB |
| Antennas | linear + omni antennas |
| Channels |
40CH (5 Bands: A/B/E/F/R) |
| Built-in DVR | Yes |
| DVR Resolution |
720 × 576 px (Full Frame Rate) |
| SD Card |
C10 32GB Max (Not Included) |
| Playback: | Support replay in menu |
| Battery |
3.7V 2000mAh / 7.4V 1200mAh (Random) |
| Working Time |
Approx. 2 Hours |
| Charging |
12V 2A, DC 2.5mm |
| Backup Power |
2S (7.4V) / 3S (11.1V) Support |
| Dimensions |
180 × 145 × 82 mm |
| Weight | 362 g (Without Antenna) |
| Belt: | Three-way adjustable belt |
| Notice: |
|
EV800D vs EV800DM Comparison
| Feature | EV800D | EV800DM |
|---|---|---|
| Weight | 362g | 320g |
| Dimensions | 180×145×82mm | 150×170×80mm |
| Screen Size | 5.0" | 3.0" |
| Resolution | 800×480 | 900×600 |
| Brightness | 600cd/m² | 600cd/m² |
| Aspect Ratio | 16:9 / 4:3 | 4:3 |
| Viewing Angle | 140°(H) / 120°(V) | 140°(H) / 120°(V) |
| Lens | 3× Magnification, 92% Transmittance | 3× Magnification, 92% Transmittance |
| Receiver | Dual RX5808 PRO, -90dB | Dual RX5808 PRO, -90dB |
| Channels | 40CH, 5 Bands (A/B/E/F/R) | 40CH, 5 Bands (A/B/E/F/R) |
| DVR | 720×576px, C10 microSD (Not Included) | 720×576px, C10 microSD (Not Included) |
| Varifocal | — | * 20mm Adjustable, Multi-Stop |
| Glasses Fit | — | * Up to 140×40mm |
| Removable Screen | * Tripod Mount (1/4") | — |
| Battery | 7.4V 1200mAh / 3.7V 2000mAh (Random) | 3.7V 2000mAh |
| Battery Life | ~2 Hours | ~2.2 Hours |
| Charging | 12V 2A, DC 2.5mm | 5-20V, DC 2.5mm |
| External Power | 2S / 3S | 2S / 3S |
Quick Selection Guide
| Choose EV800D if you want… | Choose EV800DM if you want… |
|---|---|
| 5" removable screen + tripod mount | Lighter build (320g vs 362g) |
| 16:9 & 4:3 dual aspect ratio | Higher pixel density (900×600 @ 3") |
| Standalone monitor for bench/ground station | Adjustable focus for different eyesight |
| — | Wear glasses while flying (≤140×40mm) |
| — | Longer battery life + wider charging voltage |
Purchase Notes - The new version of EV800D includes a 3.7V 2000mAh battery (sent randomly, replacing the older 7.4V 1200mAh model) - The goggles package does not include an SD card (C10 32G card recommended for DVR recording) - The TX06 camera kit is sold separately (add to cart for a complete FPV setup) - All products undergo strict factory testing before shipment; enjoy our reliable after-sales support
Recommanded Parts
EV800D 3.7V 2000mAh Battery, click here
EV800D URUAV PLA Spacer to Adjust Focus 15mm,click here
EV800D URUAV PLA Spacer to Adjust Focus 27.5mm, click here
EV800D DC 12V 2A Charger AC Adatper US Plug, Click here.
Package Included
