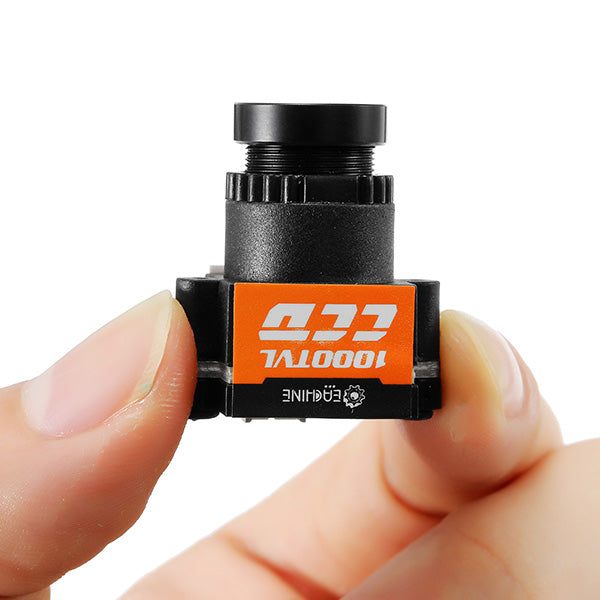

Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Wide Voltage 5-20V Mini FPV Camera NTSC PAL Switchable
$14.00
In Stock
Description
- Type: N/P Switchable
- Brand: Eachine
- Camera Resolution: 800-1000tvl
- RC Drone Spare Parts: Camera&Screen
Features:
-With 1/3'' CCD sensor
-With lens cover,well protecting the lens
-With WDR function in default
-Without OSD
-Super lightweight,ultra-low power consumption,suitable for RC multicopter
Specification:
| Brand | Eachine |
| Name | Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Mini FPV Camera |
| Input Voltage: | 5-20V |
| Power Consumption: | 105mA-27mA |
| Lux: | 0.08Lux/ F1.2 |
| Sensor: | 1/3 "CCD |
| Format: | NTSC/PAL(Free switch) |
| Resolution: | Ultra High Definition 1000TVL |
| PAL: | 976H X 582V |
| NTSC: | 976H X 494V |
| Lens: | 2.8mm IR coated |
| FOV: | 110 ° |
| Operating temperature: | 0 to 40°C |
| Camera size: | 28 * 24.5 * 17.5mm |
| Len Size: | 17mm *14mm |
| Screw of Lens: | M12 |
| Net Weight: | 10.4g ( not included the box and cable) |
| Note: | The fpv transmitter module and antenna showed in the picture are not included in the package. |
Package Included:
1x 1000TVL FPV Camera
1x Cable
1x Lens Cover
