DSLogics U2Basic Logics Analyzer 16 Channels 100MHz USB 2.0 Up To 1GHz Sampling Hardware Trigger Protocol Analysis Digital Signal Debug Tool - Black

Specification

Product Series: DSLogics Series Logics Analyzer

Model: DSLogics U2Basic

USB Interface: USB 2.0

Channels: 16 channels

Sampling Rate: 100MHz

Maximum Sampling Rate: Up to 1GHz (8 channels)

Hardware Memory: Up to 4Gbits

Acquisition Modes: Buffer mode, Stream mode

Trigger Types: Simple trigger, 16-level hardware trigger, protocol trigger

Supported Protocols: I2C, SPI, UART, CAN

Threshold Voltage: 0-5V adjustable, 0.1V step

Withstand Voltage Range: +/-30V

Input Impedance: 250K//~13pF

Maximum State Sampling: 50MHz

Transmission Support: USB 2.0/3.0 high-speed transmission

Cable Type: High-frequency shielded cable interface, independent shielded ground for each channel

Logics Analyzer Size: 79mm x 74mm x 9mm

Oscilloscope Size: 115mm x 74mm x 16mm

Features

1) Designed for digital signal debugging with multi-channel, high-speed, and long-time gap-free acquisition.

2) Supports Buffer mode for short-time high-precision capture and Stream mode for continuous acquisition.

3) Up to 1GHz sampling rate on 8 channels with up to 4Gbits hardware memory.

4) Supports simple trigger, 16-level hardware trigger, and protocol trigger for precise signal capture.

5) Supports protocol analysis for I2C, SPI, UART, and CAN in embedded development and circuit debugging.

Package Included

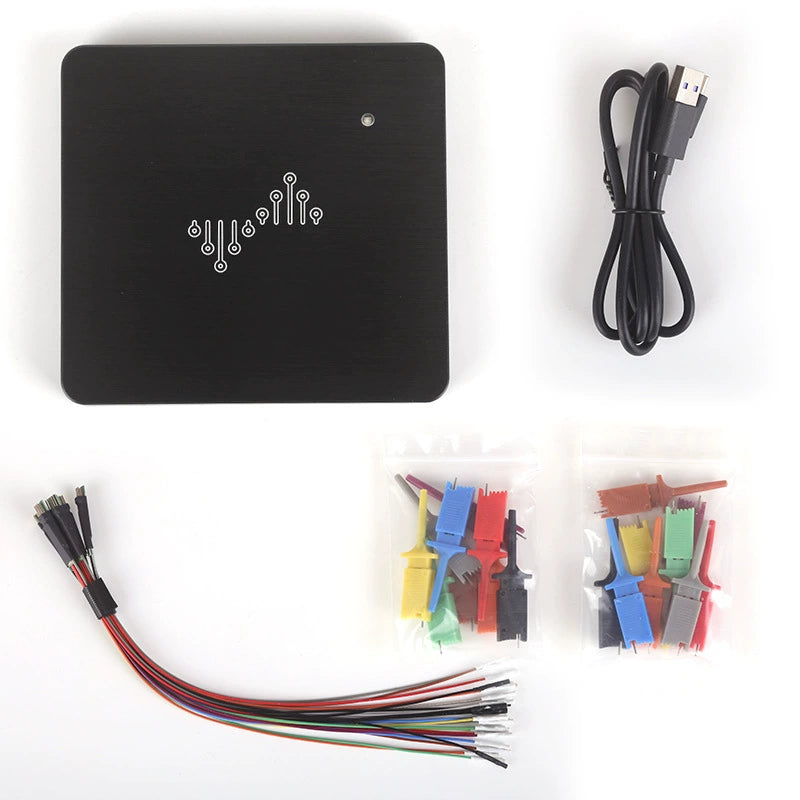

1 x DSLogics Series Logics Analyzer Kit
