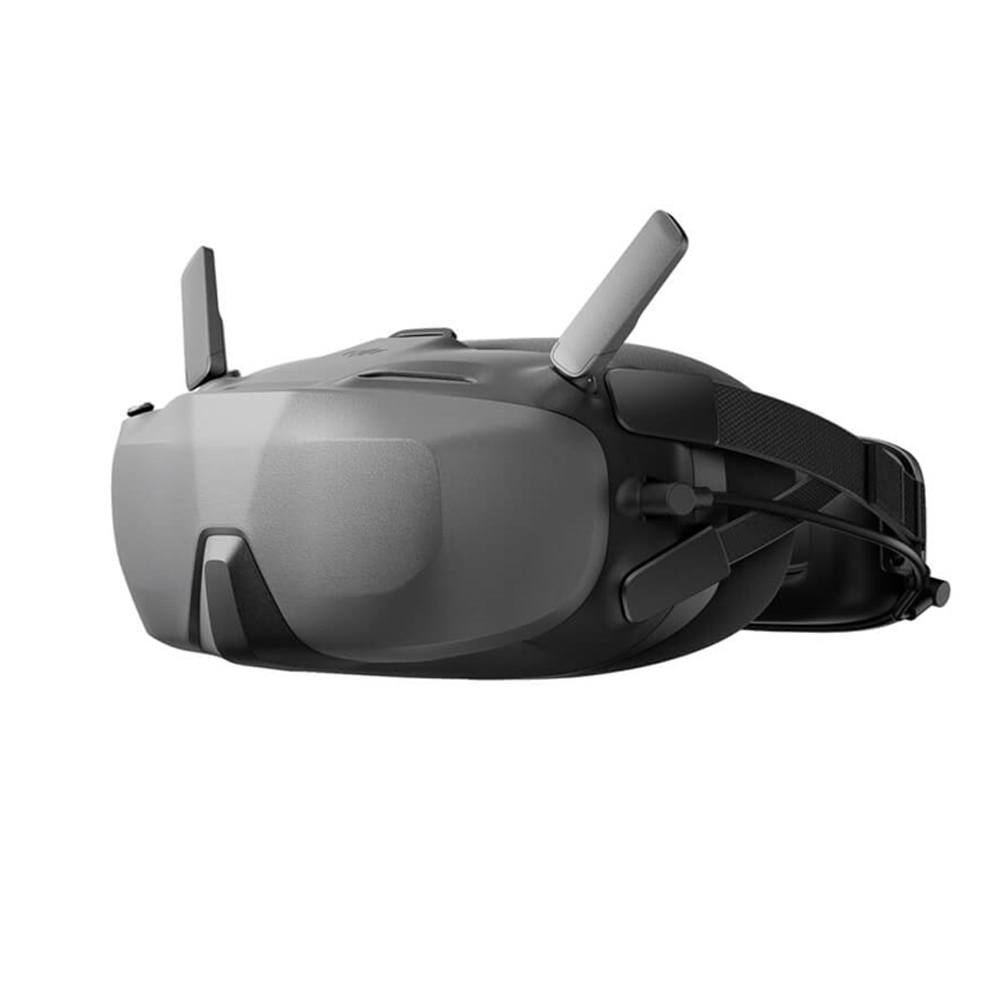

DJI GOGGLES N3 FPV Goggles 2.4GHz-5.8GHz 3.5" 1920*1080 4K/60fps 1080P 60Hz LCD 54° FOV Compatible with O4 Full HD Video Transmission & 2.7H Battery Life Fit for DJI NEO Avata 2 RC Drone - Gray
Description
- Type: N/P Switchable
- Camera Resolution: 1080P
- RC Drone Spare Parts: FPV Goggles
- Frequency: 5.8GHz
- Applicable User: Intermediate
- Interface Type: Type C
- Application: Pilot
- Power: Above 1000mw
Perfectly compatible with: DJI NeoTwo (2025) DJI Neo (2024) DJI Avata 2 (2024) DJI O4 Pro Air Unit (2025) DJI O4 Air Unit (Lite) (2025)
Immersive FPV Flight for DJI Neo & Avata 2 Pilots
- 1080P Ultra-Wide Visuals: 3.5-inch 1920*1080 screens with 54° FOV, delivering crisp, impactful aerial scenes.
- DJI O4 Video Transmission: 1080p/60fps live feed, 31ms ultra-low latency, and up to 13km range (FCC) for stable, smooth flying.
- 2.7-Hour Battery Life: Power through up to 13 DJI Neo battery cycles—no interruptions to your creative flow.
- AR Cursor & Head Tracking: Control your drone with head/wrist movements (paired with DJI RC Motion 3) for intuitive, seamless control.
- Ready-to-Wear Design: Accommodates prescription glasses, no IPD/diopter adjustments needed--just put on and fly.
Features 1. 1080P Ultra-Wide Screen - 3.5-inch single screen with 1920*1080 resolution and 54° diagonal FOV. - 4:3 aspect ratio optimized for FPV, making every aerial shot feel immersive and impactful.
2. DJI O4 FHD Video Transmission - Ultra-low latency: As low as 31ms (with DJI Avata 2, 1080p/100fps) for real-time "pilot-in-cockpit" feel. - Long-range stability: Up to 13km (FCC) / 10km (CE/SRRC/MIC) transmission distance. - Adaptive frequency: Auto-selects optimal 2.4GHz/5.8GHz bands for strong anti-interference performance. - High bitrate: Up to 60 Mbps (Avata 2) + SyncSmooth tech for buttery-smooth footage even at high speeds.
3. AR Cursor & Head Tracking - Pair with DJI RC Motion 3 to use it as an AR cursor for one-tap function activation and setting adjustments. - Activate head tracking to control your drone with natural head/wrist movements--perfect for freestyle and cinematic flying.
4. Ready-to-Use Comfort - Glasses-friendly: Roomy interior fits prescription frames without extra diopter/lens adjustments. - Balanced weight: Integrated headband + battery design reduces facial pressure for all-day comfort. - One-tap defogging: Accelerated internal fan clears lens fog in changing temperatures/humidity. - No IPD adjustment: Pre-calibrated for instant wear-and-fly convenience.
5. 2.7-Hour Long Battery Life - 2450mAh Li-ion battery (17.28Wh) delivers up to 2.7 hours of continuous use. - Supports up to 13 full DJI Neo battery cycles--ideal for extended creative sessions. - Fast charging: 5V 3A max charging power (power-off charging).
Specification:
| Brand | ||
Name: |
DJI GOGGLES N3 |
|
Model: |
TKGSM |
|
| User Manual | Click Here | |
FOV(Single Screen): |
54° |
|
Video Format: |
MOV (Video Format: H.264) |
|
Playbac File Format: |
MP4, MOV (Video Format: H.265, H.264; Audio Format: AAC, PCM) |
|
Panoramic Video Format: |
Spherical 2D panoramic video |
|
Resolution (Single Screen): |
1920*1080 |
|
Refresh Rate: |
Up to 60 Hz |
|
Maximu Supported Video: |
4K/60fps |
|
Power Input: |
Built-in battery |
|
Working Temperature: |
-10℃ to 40℃ |
|
Storage Card Types: |
MicrSD, Up to 512GB |
|
Recommended Storage: |
Kington CANVA Go! Plus 64GB U3 A2 V30 MicrSDXC |
|
Kington CANVA Go! Plus 128GB U3 A2 V30 MicrSDXC | ||
Kington CANVA Go! Plus 256GB U3 A2 V30 MicrSDXC | ||
Kington CANVA Go! Plus 512GB U3 A2 V30 MicrSDXC | ||
Screen Size (Single Screen): |
3.5 Inches |
|
Weight: |
536g (with battery and headband) |
349g (without battery and headband)
|
|
Dimensions: |
Antenna folded: 193mm long, 163mm wide, 103mm high |
|
Antenna unfolded: 206mm long, 163mm wide, 132mm high | ||
Pupillary Distance Adjustment Rang: |
No need to adjust the interpupillary distance,
ready to wear
|
|
Diopter Adjustment Rang: |
No support for diopter adjustment,
can wear personal frame glasses
|
|
Real-time Window Display: |
Does not support real-time window |
|
Image Transmission: |
O4 |
|
Working Frequency Band: |
2.400 to 2.4835 GHz |
|
5.150 to 5.250 GHz | ||
5.725 to 5.850 GHz | ||
Transmitting Power (EIRP): |
2.4 GHz: |
＜30 dBm (FCC) |
＜20 dBm (CE/SRRC/MIC) | ||
5.1 GHz: |
＜23 dBm (CE) |
|
＜21 dBm (FCC) | ||
5.8 GHz: |
＜33 dBm (FCC) |
|
＜30 dBm (SRRC) | ||
＜14 dBm (CE) | ||
Image Transmission Delay: |
With DJI Avata 2： |
1080p/100fps image |
With DJI Neo： |
1080p/60fps image |
|
Maximu Image Transmission Distance |
With DJI Avata 2: |
13 km (FCC)/10 km (CE/SRRC/MIC) |
With DJI Neo: |
10 km (FCC)/6 km (CE/SRRC/MIC) |
|
Maximu Image Transmission Code Rate: |
With DJI Avata 2: 60 Mbps |
|
With DJI Neo: 50 Mbps | ||
GFSK | ||
Working Frequency Band: |
2.400 to 2.4835 GHz |
|
Transmitting Power (EIRP): |
<26 dBm (FCC) | <20 dBm (CE/SRRC/MIC) |
|
Battery | ||
Dimensions: |
120mm long, 71mm wide, 44mm high |
|
Capacity: |
2450mAh |
|
Voltag: |
6.33V to 8.4V |
|
Type: |
Li-ion |
|
Chemica System: |
LiNiMnCoO2 |
|
Energy: |
17.28Wh |
|
Charging temperature: |
5℃ to 45℃ |
|
Maximu charging power: |
5V 3A (power off and charging) |
|
Operating Time: |
2.7 hours |
|
Related products: Transmission
DJI O4 Air Unit PRO, click here
DJI O4 Air Unit, click here
Package Included:
1 x DJI Goggles N3 FPV Glasses
