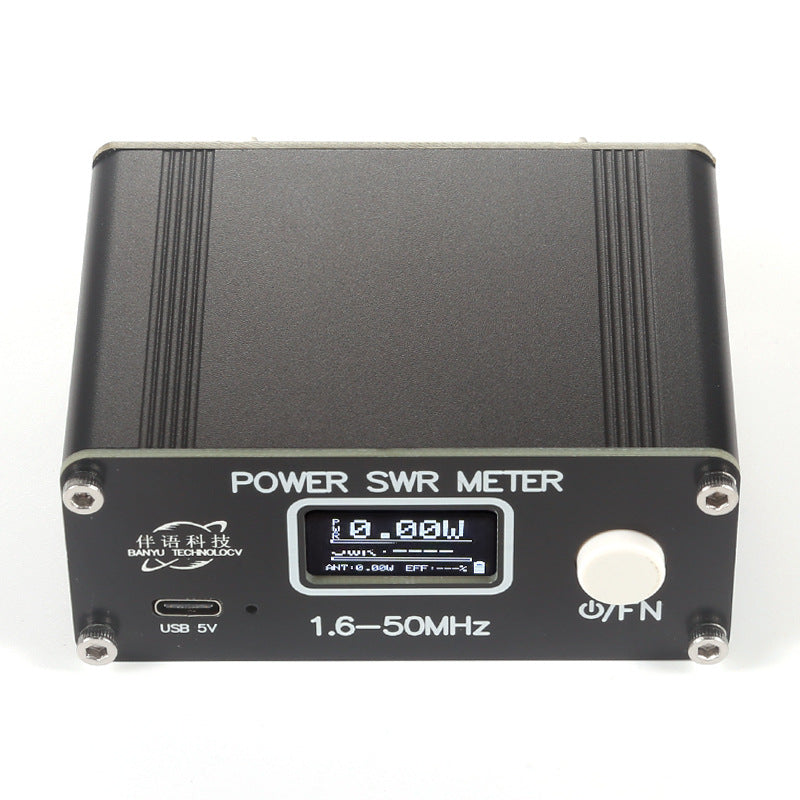

Digital SWR Power Meter 150W 1.6-50MHz USB Type-C High Accuracy Multiple Display Modes Built-in Lithium Battery

Specifications:

Product Name: Digital SWR Power Meter

Frequency Range: 1.6-50MHz

Power Measurement Range: 0.5W-150W

SWR Measurement Range: 1.0-99.9

Insertion Loss: <0.12dB

Insertion SWR: ≤1.02

Measurement Accuracy: Better than ±5%

SWR Alarm: ≥2.0 (with disable function)

RF Connector Type: SL16-M or N (default is M)

Display Content: Forward Power; SWR; Antenna Power; Efficiency

Power Supply: Built-in 3.7V/1000mAh rechargeable lithium battery or USB Type-C

Shutdown Power Consumption: <0.1uA

Data Communication: USB Type-C

Firmware Upgrade: Supported

Overall Size: 88 x 38 x 64mm / 3.5 x 1.5 x 2.5 inches (excluding protruding parts)

Features:

High Accuracy: Ensures measurement precision better than ±5% across the 0.5W-150W power range.

Multiple Display Modes: Five interface display modes can be selected with a single button press.

SWR Alarm: Buzzer alarm when SWR exceeds 2.0, providing immediate feedback.

Firmware Upgrade: USB firmware upgrades without a programmer, keeping your device up-to-date.

Long Battery Life: Built-in lithium battery provides over 50 hours of use on a full charge.

Package Included:

1 x SWR Power Meter
