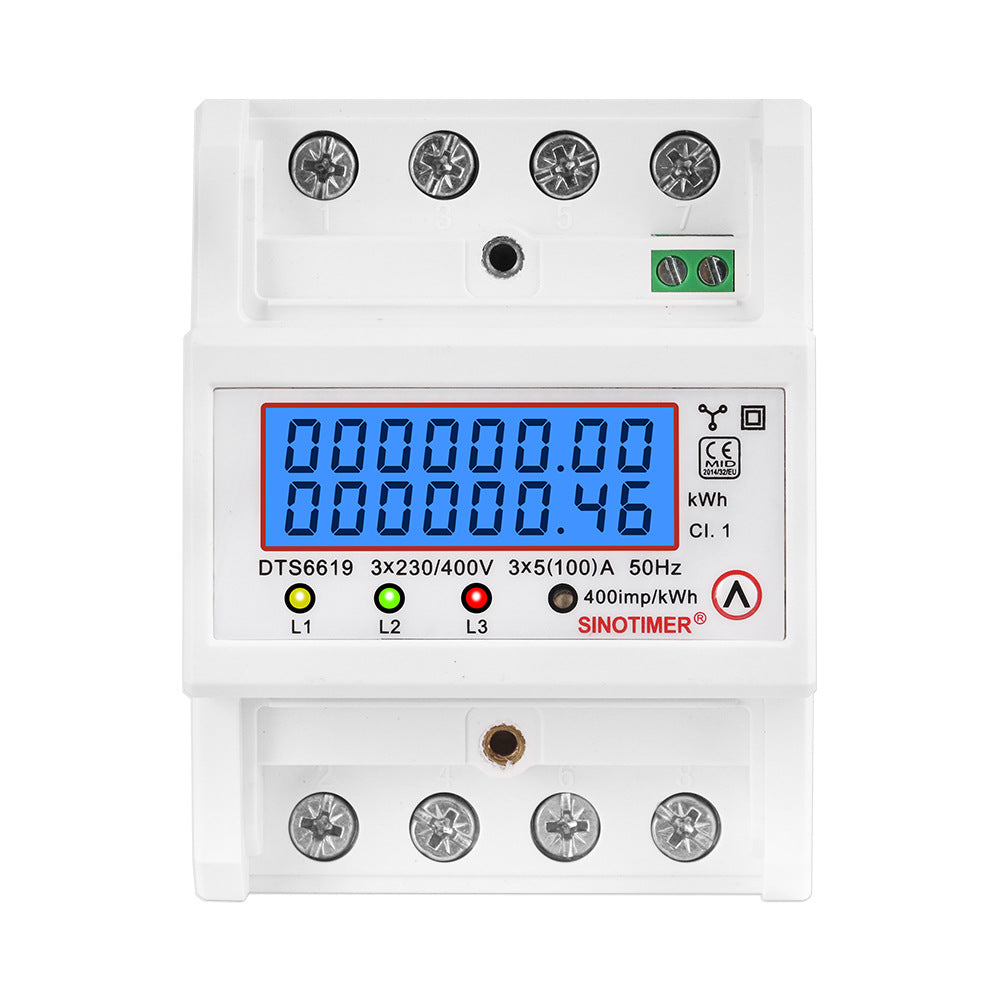

Dgital Wattmeter 100A 380V AC Three Phase Energy Meter Temporary kWh Can Be Reset Power Voltage Current

Specifications:

- Reference Voltage: 3 X 220/380(V), 3 X 230/400(V)

- Reference Current: 3 X10(100A)

- Accuracy Level: 1.0

- Rated Frequency: 50Hz

- Constant Pulse: 400imp / kWh

- Display: LCD 6 + 2

- Power Consumption: ≤2W, 10VA

- Starting Current: 0.004Ib

- Operating Temperature: -20 ~ 55°C

- Storage Temperature: -25 ~ 70°C

- Operating Voltage: 0.9-1.1 Rated Voltage

- Utmost Voltage: 0.8-1.15 Rated Voltage

- Temporary kWh Reset: Available

Features:

1. Highly Accurate Measurements:

   With an accuracy level of 1.0, this three-phase energy meter ensures precise monitoring of power usage, making it ideal for both industrial and residential applications.

2. Comprehensive Display:

   The large LCD screen with 6+2 digits provides clear and comprehensive real-time data on power, voltage, and current, ensuring user-friendly operation and easy readability.

3. Energy Efficiency:

   Designed for low power consumption (≤2W, 10VA), this device operates efficiently without significant additional energy costs, making it environmentally friendly.

4. Reliable Performance:

   Capable of functioning within a wide operating temperature range (-20 ~ 55°C) and a storage temperature range (-25 ~ 70°C), the meter is reliable in various environmental conditions.

5. Convenient kWh Reset Function:

   The resettable temporary kWh functionality allows for easy tracking and management of short-term energy usage, providing flexibility for users to monitor specific periods.

Package Included:

 1 x Digital Wattmeter (DTS6619-046)
