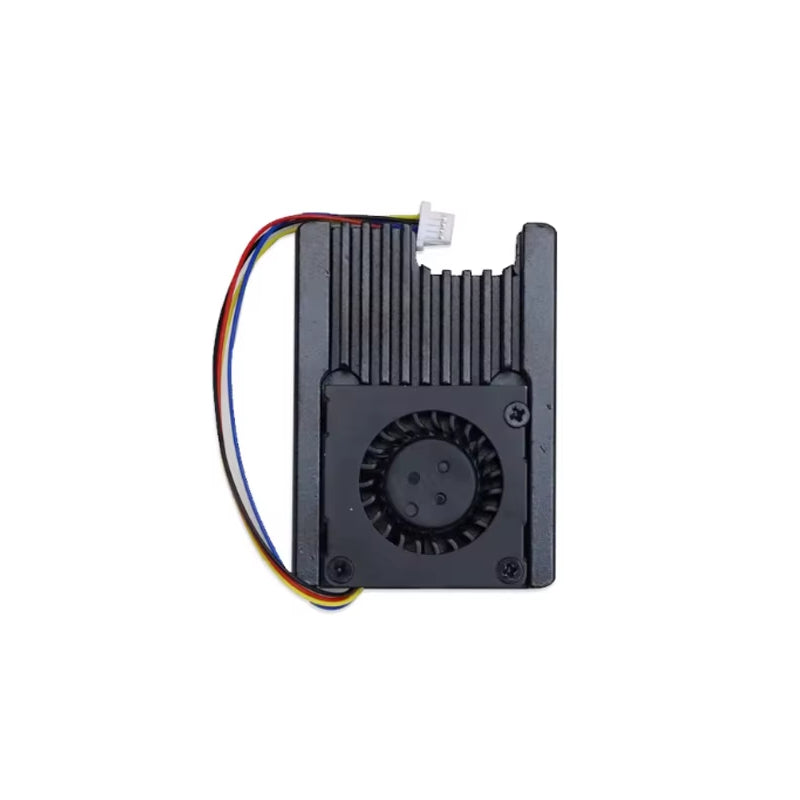

DC5V Cooling Fan Heatsink 8000RPM PWM Speed Adjustable Active Radiator Cooler with Thermal Pads for Raspberry Pi CM5/CM4



Specification:
Product Name: Cooling Fan Heatsink for Raspberry Pi Compute Module CM5/CM4
Application: Raspberry Pi CM5 on official CM5 IO Board (CM5 and IO Board not included)
Material: Aluminum heatsink + plastic fan housing
Dimensions: 54.0 × 38.9 × 9.8 mm (L×W×H)
Fan Type: Embedded blower fan, 4‑wire PWM control
Rated Speed: 8000 ±10% RPM
Rated Voltage: 5V DC
Cable Length: Approx. 85 mm
Mounting: 4‑point screw fixing, aligned with CM5 holes

Features:
1. Integrated aluminum heatsink and PWM fan in one compact module.
2. 4‑wire PWM interface for automatic speed control by the CM5.
3. Low‑noise operation suitable for desktops, labs and embedded projects.
4. Multiple thermal pads included for perfect contact with CM5 chips.
5. Precise size matching the CM5 outline and IO Board layout.
6. Simple installation with included screws and spacers, no extra tools required

Package Includes:
1 x CM5 cooling fan heatsink module

(The Raspberry Pi Compute Module is not includes, picture for reference only)
