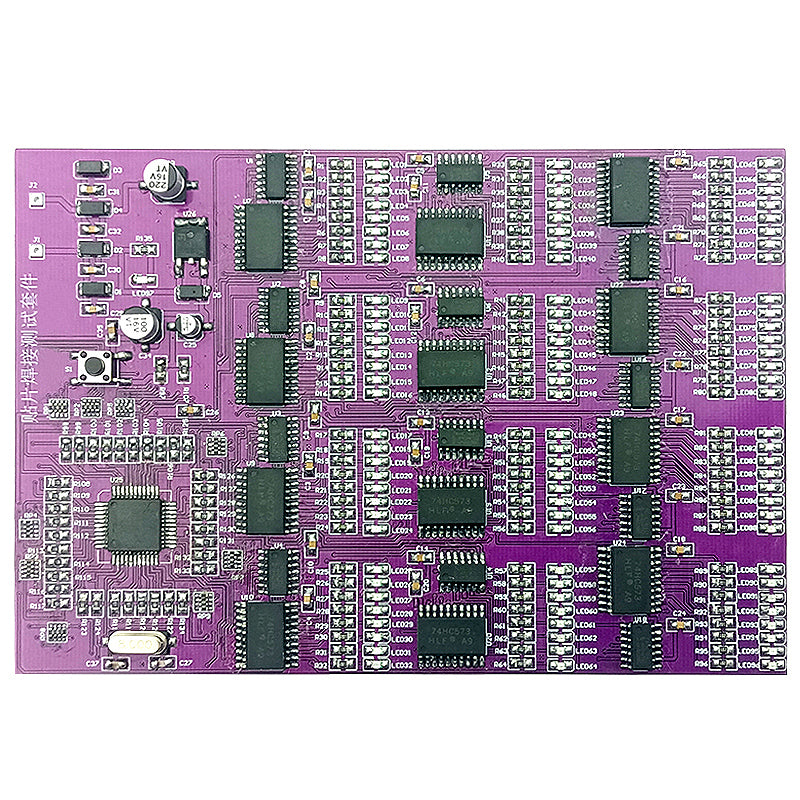

DC 9V SMT Soldering Test Kit Electronic Practice Set
$17.99
In Stock
Description
Description:
1. J1 and J2 are the power supply input terminals of the entire SMT board. It can work normally when connected to AC6V or DC9V. When working normally, all LED lights in this kit can work normally. At first, each group of LEDs flashes with water, and then flashes at intervals, and finally all Light up all the LEDs, then flash again, and cycle like this to check whether the LEDs are working and whether they are soldered well. If it is found that the corresponding LED does not flicker, it means that there is a welding error or a false welding.
2. The AC6V power supply is rectified by D1-D4 diodes, and then through each filter capacitor to pin 1 of the voltage regulator chip 78M05 (LED97 is always on, the rectifier circuit is working normally), and the output of DC5V is supplied to the whole test circuit through pin 3.
3. This test circuit is controlled by a single-chip microcomputer to work with 12 groups of 8-bit LED lights. Each group is composed of 1 74HC573 and 74HC164. One group can control 8 LEDs, 12 groups in total. Figure 1 is the control schematic diagram of one group. When working normally, all LED lights are on and can flash.
Specifications:
Product Name: SMD Soldering Test Kit
PCB material: FR-4PCB board
PCB size: 145*100MM
patch tape connection test
Power supply mode: DC DC9V
Applicable objects: junior welding patch personnel
Component Description: Common patch components are used
<
| S.N. | Name | Mark | Num. | Location |
| 1 | 103 capacitor※0805 | 30 | C1-C24,C26, C29-C32, C35 | |
| 2 | 20P 0805※ | 2 | C27, C37 | |
| 3 | 10uf/16V※ | 1 | C25 | |
| 4 | 100uf/16V※ | 1 | C34 | |
| 5 | 220uf/16V※ | 1 | C33 | |
| 6 | The resistance value of the resistor is between 1K-3K ohms※ | 102 | 101 | R1-R97, R123,R124,R135 |
| 7 | The resistance value of the resistor is between 0-100 ohms※ | 101 | 35 | R98-R106,R108-R122,R125-R134 |
| 8 | The resistance value of the resistor is between 8.5K-20K ohms※ | 203 | 1 | R107 |
| 9 | 10K exclusion※ | 103 | 9 | RP1-RP9 |
| 10 | IN4007 diode※ | 5 | D1-D5 | |
| 11 | LED light※ | 97 | LED1-LED97 | |
| 12 | 78M05※ | 1 | U26 | |
| 13 | Touch the button※ | 1 | S1 | |
| 14 | 8M crystal oscillator※ | 1 | Y1 | |
| 15 | 74HC573※ | 12 | U7-U12,U19-R24 | |
| 16 | 74HC164※ | 12 | U1-U6,U12-R18 | |
| 17 | STC89C52※ | 1 | U25 | |
| 18 | Single row of needles | 2 | J1,J2 | |
| 19 | PCB board | 1 | ||
| Note: Components marked with a ※ symbol in the table indicate that the component is a patch component. | ||||
Package Include:
1× SMT Soldering Test Kit
(Note: The products shipped are loose parts, and the actual products need to be assembled by the buyer.)
