- Brand: Others
- Camera Resolution: Without
- RC Drone Spare Parts: FPV Transmitter
- Frequency: 5.8GHz
- Applicable User: Professional
- Interface Type: DC
- Application: Other
- Power: 0-200mw
- Adjustable Power Levels: 4 selectable output powers (25/200/400/600mW) to adapt to short-to-medium-range flights, delivering excellent signal stability.
- Low Power Consumption: 5V DC input with only 600mA power draw (at 600mW output), directly powered by the flight controller’s 5V supply.
- Smart Control Protocol: Equipped with SmartAudio protocol, supporting OSD parameter tuning for real-time adjustments.
- Compact & Lightweight: Weighs only 3.5g with a 28×15mm mounting pitch, perfect for space-constrained FPV builds.
- Plug-and-Play Design: Integrated 4-pin connector simplifies installation, no complex wiring required.
- Connect the VTX’s white RX wire to the flight controller’s (FC) spare UART port (TX signal line or SOFTSERIAL1 signal line).
- Enter the Betaflight Configurator, go to the Ports tab. Enable the TBS (SmartAudio) function for the connected port, then save the settings.Note: The operation is the same for SOFTSERIAL1—just select the TBS (SmartAudio) function for the corresponding port.
- Navigate to the VTX parameter adjustment interface. Select the desired frequency and power level, then click "Save" to confirm and exit.
- 1 × DarwinFPV 600mW VTX
- 1 × Spare Screw Set
- 1 × 3cm 4-pin Cable
- 1 × Sticker

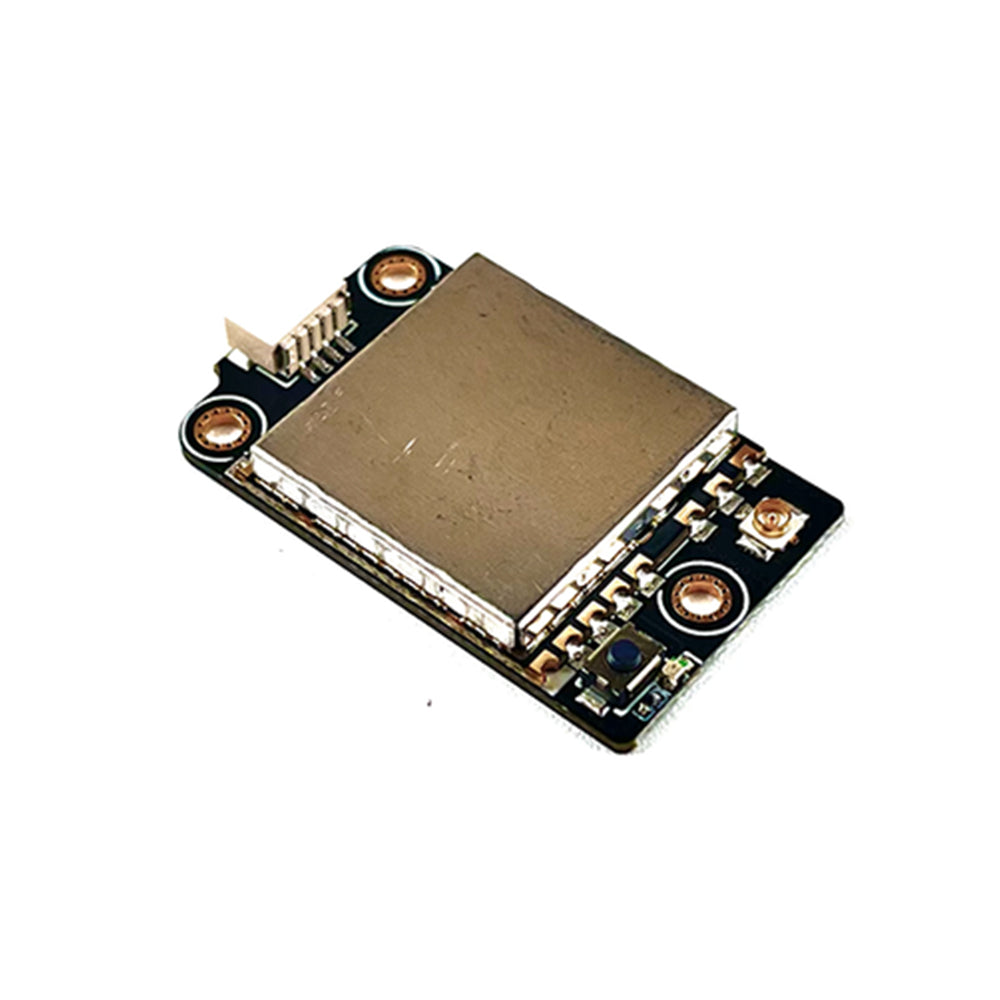

The DarwinFPV 600mW VTX is a lightweight, compact, and high-quality video transmitter with adjustable output power (25/200/400/600mW). It features an integrated 4-pin connector for convenient plug-and-play use. Key settings—including transmission power, frequency band, and channel—can be easily adjusted via the flight controller, with support for OSD parameter tuning.
-
Adjustable Power Levels: 4 selectable output powers (25/200/400/600mW) to adapt to short-to-medium-range flights, delivering excellent signal stability.
-
Low Power Consumption: 5V DC input with only 600mA power draw (at 600mW output), directly powered by the flight controller’s 5V supply.
-
Smart Control Protocol: Equipped with SmartAudio protocol, supporting OSD parameter tuning for real-time adjustments.
-
Compact & Lightweight: Weighs only 3.5g with a 28×15mm mounting pitch, perfect for space-constrained FPV builds.
-
Plug-and-Play Design: Integrated 4-pin connector simplifies installation, no complex wiring required.
Note: The indicator light indicates power level and working status (e.g., solid light for normal operation, flashing for parameter adjustment). Specific color/cycle details follow the flight controller’s OSD feedback.
- Connect the VTX’s white RX wire to the flight controller’s (FC) spare UART port (TX signal line or SOFTSERIAL1 signal line).
- Enter the Betaflight Configurator, go to the Ports tab. Enable the TBS (SmartAudio) function for the connected port, then save the settings.
Note: The operation is the same for SOFTSERIAL1—just select the TBS (SmartAudio) function for the corresponding port.
- Navigate to the VTX parameter adjustment interface. Select the desired frequency and power level, then click "Save" to confirm and exit.
- 1 × DarwinFPV 600mW VTX
- 1 × Spare Screw Set
- 1 × 3cm 4-pin Cable
- 1 × Sticker
