CP2100A Current Probe 300V CAT III 10A/100A DC to 800KHz
$304.49
In Stock
Description
The CP2100A Current Probe is a measurement tool designed for technical and scientific applications, featuring a bandwidth range of DC to 800KHz.
- Model: CP2100A
- Bandwidth: DC to 800KHz
- Rise Time: <437.5ns
- Current Ranges: 10A / 100A
- Output Sensitivity: 0.1V/A (10A), 0.01V/A (100A)
- DC Accuracy: (Typical) 10A: 3% ± 50mA 100A: 4% ± 50mA (500mA ~ 40Apk) 15% (40Apk ~ 100Apk)
- Signal Delay: <150ns (10A), <200ns (100A)
- Current Measurement Range: 50mA to 10Apk (10A) 1A to 100Apk (100A)
- Maximum Measurable Current: 100Apk / 70.7Arms (10A) 200Apk / 70.7Arms (100A)
- Maximum Working Voltage: CAT III 300V / CAT II 600V
- Maximum Float Voltage: CAT III 300V / CAT II 600V
- Maximum Conductor Diameter: 13mm
- Overload Indication: Buzzer beeping and button light flashing
- Power Supply: DC 5V
- Probe Head Size: 11 x 6.1 x 2.5cm
- Control Box Size: 10.8 x 5.6 x 2.6cm
Features include wide bandwidth capacity for accurate current measurement in low-frequency to high-frequency applications, high precision with DC accuracy as low as ±3%, and rapid signal response with a delay of under 200ns. It is rated for CAT III 300V and CAT II 600V, ensuring compliance with electrical safety standards. The probe supports a wide range of current measurements up to 200Apk.

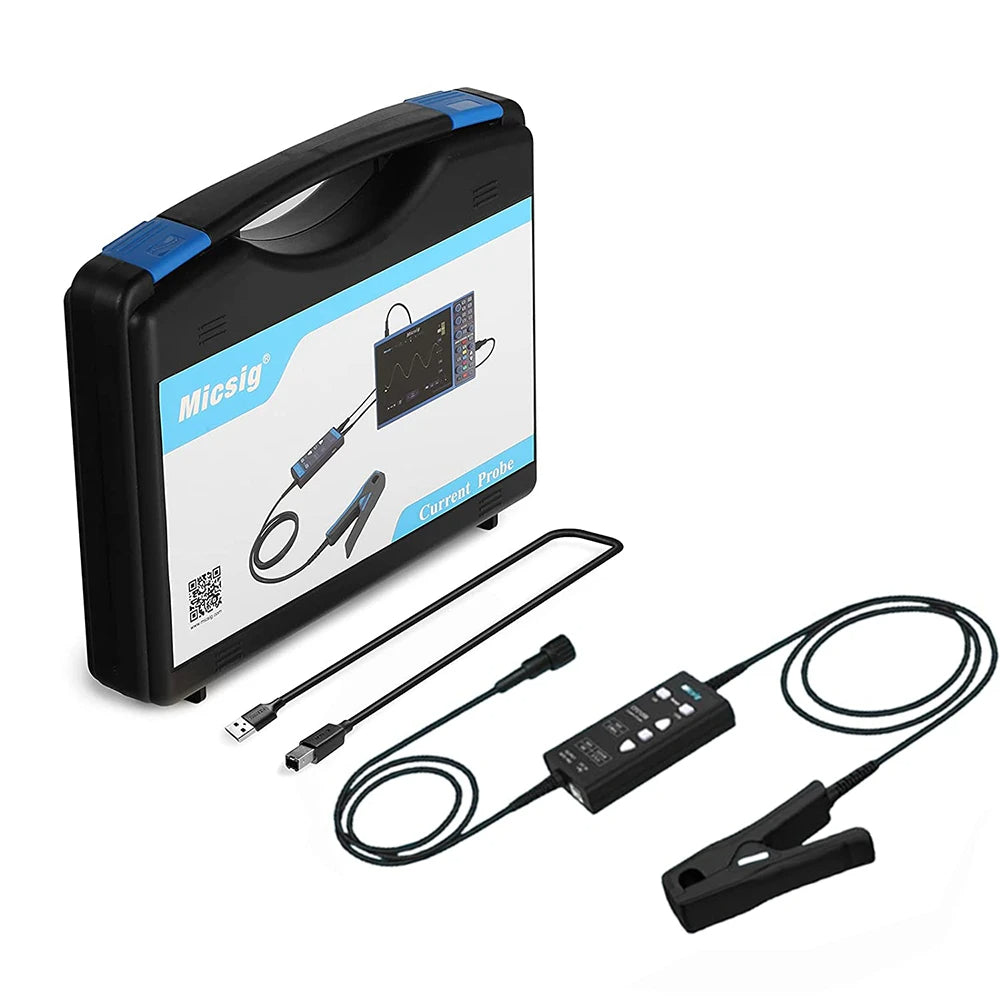

What's included: 1 x CP2100A Current Probe, 1 x Control Box, 1 x USB Power Cable, 1 x Storage Box.
