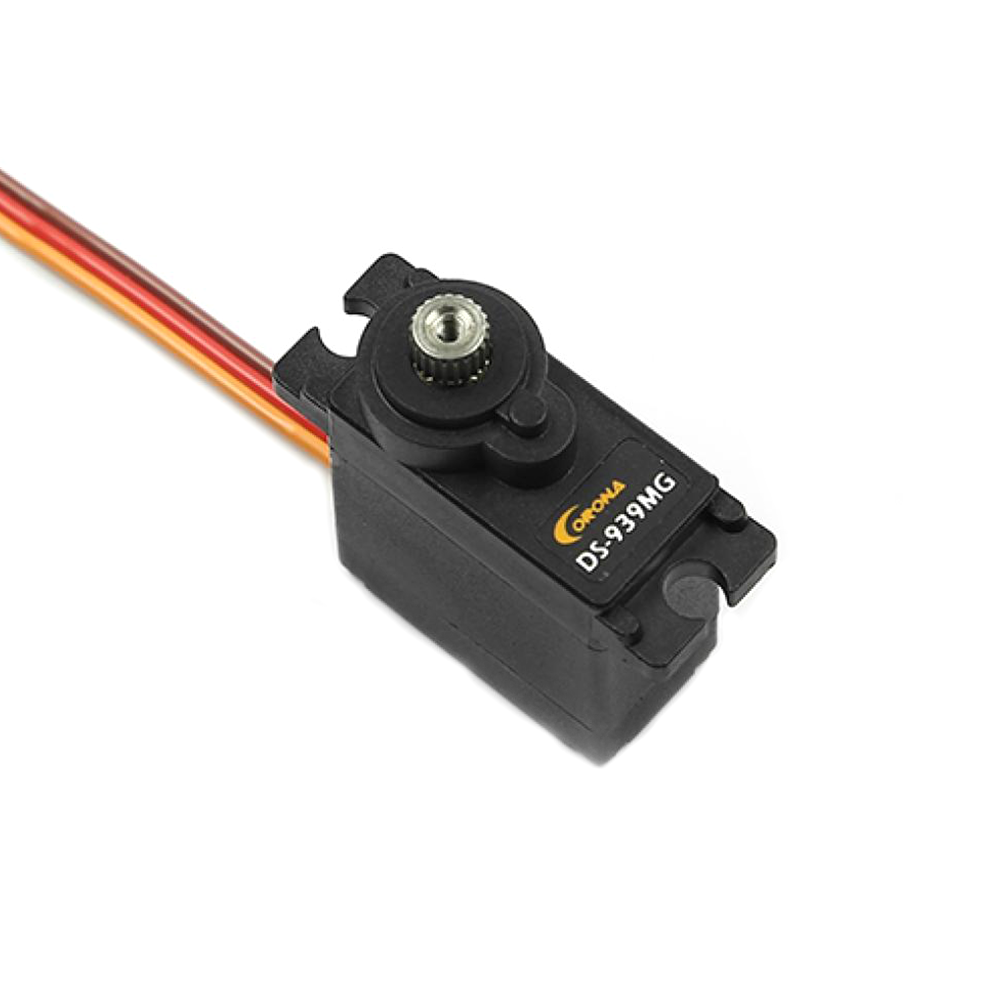

DS939MG 2.5kg Metal Gear Digital Servo for RC Airplane Boat Model

Description:

Item NO: DS939MG

Size: 22.5X11.5X24.6mm(0.88"x0.45"x0.96")

Weight: 12.5g/0.44 oz

Operating Voltage: 4.8V / 6.0V

Operating Current: 200mA / 240mA

Operating Speed: 0.14sec.60º/ 0.13sec.60º

Stall Torque: 2.5kg.cm / 2.7kg.cm

Dead Band: ≤5uSec

Operating Travel: 40º/one side pulse traveling 400us

Potentiometer: 2 slider/Direct Drive

Ball bearing: MR85

Gear: Metal

Connector wire: 215mm

Operating Temperature Range: -20℃～+60℃

Package Included:

1x DS939MG 2.5kg Metal Gear Digital Servo
