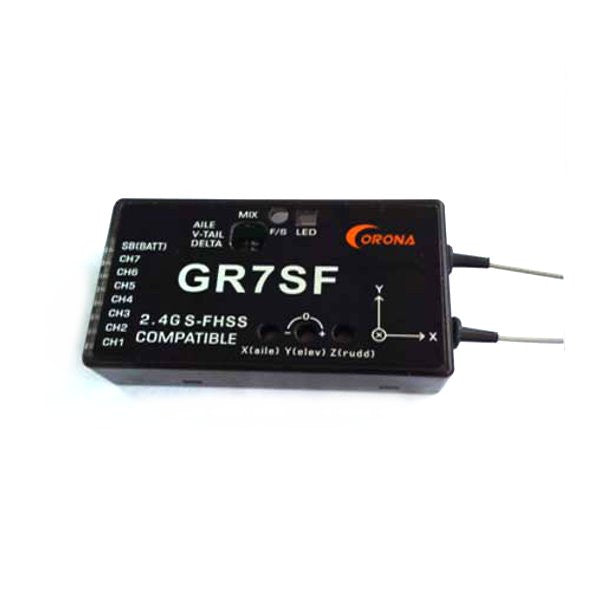

CORONA 2.4G 7CH GR7SF S-FHSS Compatible Receiver With Gyro for Futabas T6J T8J T10J T14SG Radio

• RC Drone Spare Parts: Radio Receiver
• Control Channels: 7 Channels
• Frequency: 2.4GHz

CORONA 2.4 7CH GR7SF S-FHSS Compatible Receiver With Gyro for Futabas T6J T8J T10J T14SG

Description: Brand: CORONA Item Name: CORONA GR7SF receiver Voltage Range :3.6~8.5V Operating Current:  60mA max Operation temperature: -10~70 degC Latency: 6.8mS Sensitivity: about -96dBm Weight: 16g Compatibility: CORONA 2.4GHz S-FHSS Compatible Receiver is designed to use with FUTABAS S-FHSS 2.4GHz transmitters, such as T6J, T8J, T10J and T14SG under S-FHSS protocol mode.
Features: Mode supply: No mixer, Dual-aileron, V-tail mixer, Deltas mixer Independent simple gyro gain adjustment for Aileron, Elevator and Rudder S.BUS output support expanding servo channels(will take effect in new version). Support gyro function switch on and off in flying by Switching signal of CH5 will take effect in new version.
Bind procedure:

1. Turn on the S-FHSS transmitter.

2. Connect the battery to the receiver while pressing receiver’s F/S button.

3. Red LED light on and Green LED off when searching signals, and turn to Green LED light on and Red LED off indicate bind is succeeded.
User Manual, Click here
Package included:
1x CORONA 2.4 7CH GR7SF S-FHSS Compatible Receiver With Gyro
