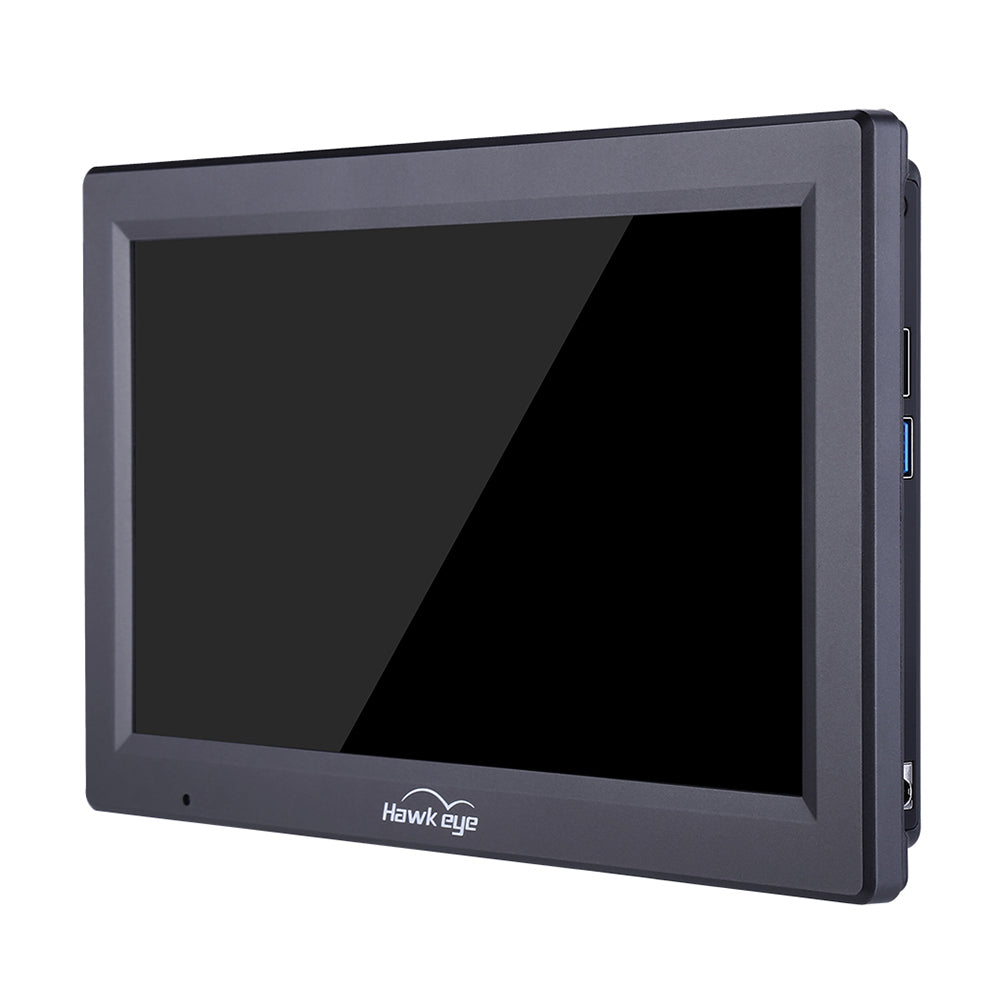

Captain 10.2" Android 1024*600 FPV Monitor HD 1080P for DJI Goggles V1/V2/DJI GOGGLES 2/DJI GOGGLES 3 OpenIPC - Black
Description
Feature:
- 1000Lux Ultra-High Brightness Screen
1024×600 16:9 LCD with 1000lux LED backlight, clearly visible even under direct outdoor sunlight, perfect for long-range FPV monitoring.
- Powerful Android Configuration
Equipped with 4GB RAM + 32GB ROM, supports up to 256GB Micro SD card expansion, smooth app running and massive video storage.
- Wide 3S–6S Power Input
Supports DC 10–26V wide voltage input, compatible with 3S to 6S drone batteries, stable power supply for outdoor use.
- Full DJI FPV Ecosystem Support
Compatible with DJI Goggles V1/V2 USB video output and DJI Goggles 2/3 OTG output; FPV Out App & DJI Fly App pre-installed for plug-and-play.
- OpenIPC Native Support
Pre-installed PixelPilot App for direct connection and control with OpenIPC cameras, easy channel selection and real-time monitoring.
- Built-in 8812AU Network Card & WiFi
Integrated 8812AU wireless network card and 2.4G WiFi, with dual 5.8G SMA antennas, strong and stable signal transmission.
- 1080P 60FPS HDM1 Output
Supports HDM1 1080p@60fps high-frame-rate video output for external display recording and live broadcasting.
- Capacitive Touch & Rich Interface
Responsive capacitive touch screen with 3.5mm audio jack, USB and Type-C OTG ports for versatile connection.
- All-in-One FPV Monitor Solution
Compact, durablee structure, ideal for FPV racing, long-range cruising, ground station monitoring and outdoor flight testing.
Specification:
| Brand | |
| Name | Captain FPV Monitor |
| LCD | |
| Resolutions | 1024×600 |
| Back light | LED |
| Brightness | 1000 Lux |
| Ratio | 16：9 |
| Response time | 10ms |
| Touch screen | Capacitive touch screen |
| System | |
| RAM + internal storage | 4G+32GB |
| tf card | Max 256G |
| Power | |
| Voltage | DC：3S-6S battery10-26V |
| Current | 780MA @12V；380MA @26V; |
| Input | |
| USB Port | DJI goggles V1/V2Mouse |
| TYPE C/otg | DJI goggles G2/DJI GOGGLES 3 |
| APP | |
| For DJI goggles V1/V2 | fpv out app(Preinstalled) |
| For DJI goggles G2/G3 | dji fly app(Preinstalled) |
| For openipc | PixelPilot(Preinstalled) |
| Output | |
| HDMIi | 1080P 60FPS |
| Audio | 3.5m earphone port |
| Package | |
| Size | 300mm×196mm×60mm |
| Weight | 1kg |
| Wireless | |
| Net work card | 8812AU |
| Antenna | 5.8G SMA *2 |
| WiFi | 2.4G |
Connect to DJI goggles V1/V2:
1. Connect dji air unit to DJI goggles V1/2;Power ON Hawkeye captain
2. USE USB-C cable.
3. Connect Hawkeye' USB port (not C port) to DJI goggles V1/V2' s C port
4. Run fpvout app and you can see the USB stream from goggles.
Connect to DJI goggles G2/G3:
1. Connect dji air unit to DJI goggles G2/3;Power ON Hawkeye captain
2. USE Type C-C cable.
3. Connect Hawkeye Type C(NOT USB port) to DJI goggles G2/G3 C port
4. Run DJIFLY app, select the goggles model.
Connect to Openipc camera
1. Power ON Hawkeye captain, and openipc camera
2. Run pixelpilot app
3. Select the camera' s channel.
Package included:
1 x Hawkeye Captain FPV Monitor
