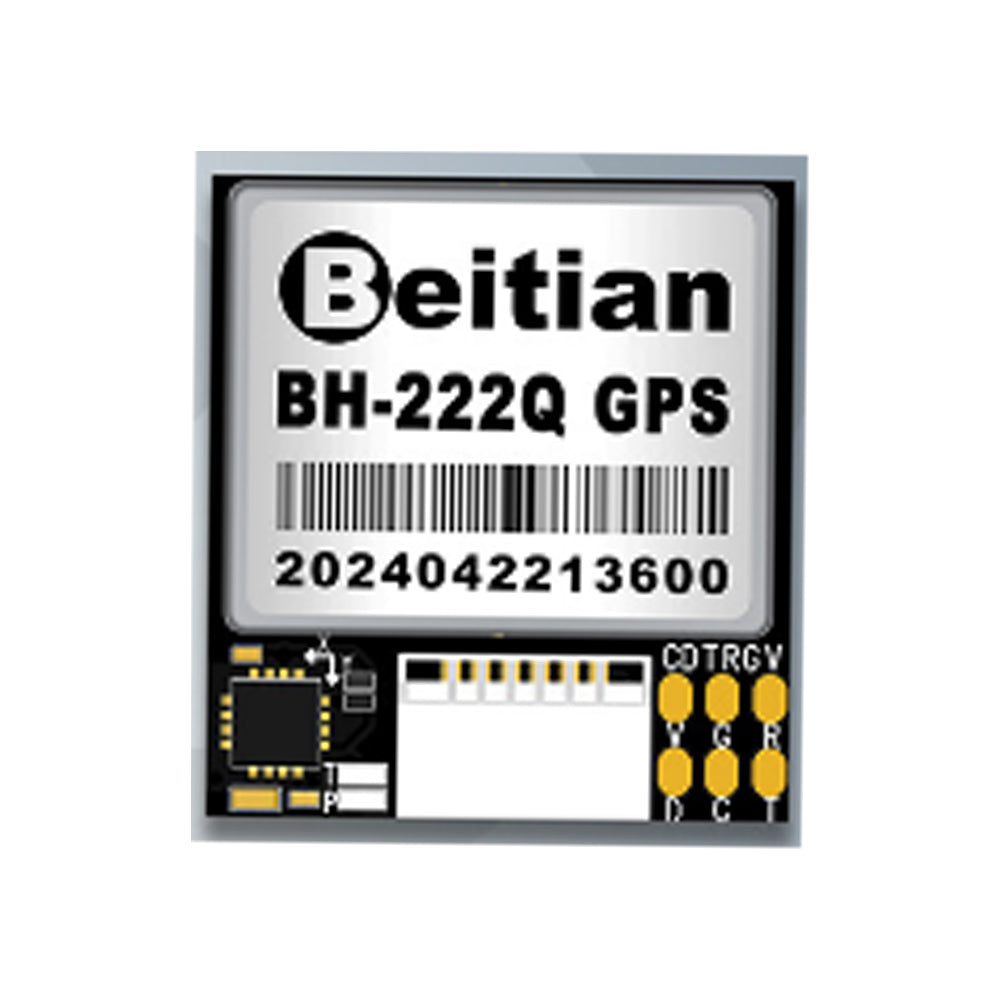

BH-222Q GPS Module With QMC5883 Compass NMEA UBX Dual Protocol for FPV Return Rescue Racing Drone RC Airplane Compatible F4 F7 H7 Flight Controller
Description
- RC Drone Spare Parts: GPS Module
Specifications:
Item |
Description |
|
|
Electrical Characteristic |
Chip |
BT-16CYJ |
|
Frequency |
GPS L1, GLONASS G1, BDS B1,Galileo E1,QZSS L1 |
|
Channel |
120 channel |
|
|
Sensitivity |
Tracking & Navigation |
-163dBm |
Reacquisition |
-159dBm |
|
Cold start |
-148dBm |
|
Hot Start |
-159dBm |
|
|
Accuracy |
Horizontal position |
1.5m CEP |
Speed Rate |
0.1m/s CEP |
|
|
Acquisition |
Cold start |
28s |
Hot start |
1s |
|
AGPS first positioning time |
1.5s |
|
|
Data Output |
Baud rate |
9600bps - 2000000bps,default 115200bps |
Level |
TTL level |
|
Protocol |
NMEA,UBX |
|
NMEA messages |
RMC,VTG,GGA,GSA,GSV,GLL |
|
Update rate |
1Hz-20Hz,default 10Hz |
|
FLASH |
With FLASH, the configuration can be changed, and the power will not be lost |
|
|
Operational Limits |
Altitude |
50,000m |
Speed Rate |
500m/s |
|
Dvnamics |
<4g |
|
|
Power Consumption |
Voltage |
DC 3.6V-5.5V, typical: 5.0V |
Current |
25mA/5.0V |
|
|
Physical Specications |
Dimension |
18mm*18mm*8.1mm |
Weight |
8.5g |
|
Connector |
1.00 pitch 4Pin socket |
|
|
Temperature |
Operating |
-40℃ ~+85℃ |
Storage |
-40℃ ~+90℃ |
|
|
LED |
Built-in LED |
TX LED: blue. The data output, TX LED flashing |
PPS LED:red. PPS LED not bright when GPS not fixed, flashing when fixed | ||
Compass |
Compass |
Internal electronic compass QMC5883 |
Package Included:
1x BH-222Q GPS Module
