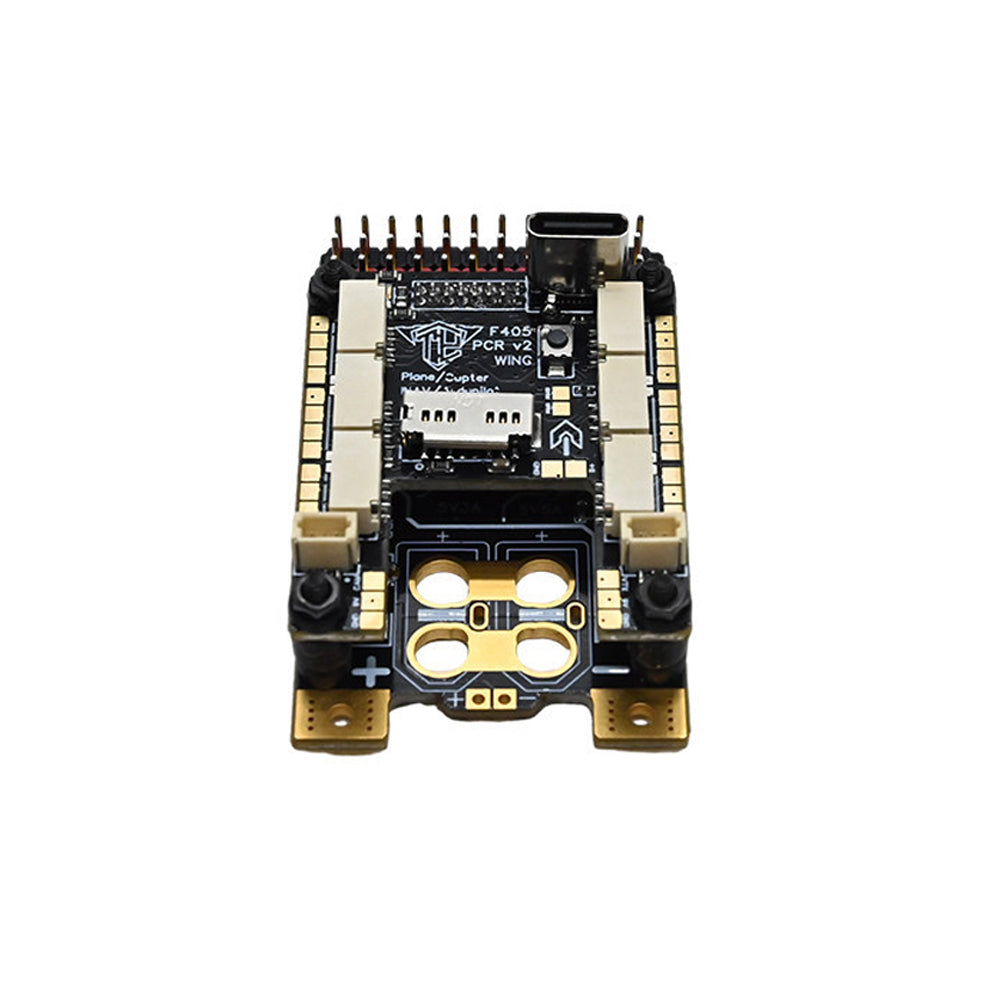

BaldwingRC F405 Flight Controller Ardupilot / INAV / Betaflight Firmware for RC Airplane Support VTOL

Specifications:

Model: BaldwingRC F405 Flight Controller

Plug Type: Standard Edition / Welded XT30 / Welded XT60 (Optional)

Firmware Support: Ardupilot / INAV / Betaflight (Optional)

Main Control: STM32F405

Barometer: High-precision DPS310, altitude accuracy within 10 centimeters

Gyroscope: ICM42688

Processor: STM32F405RGT6 / 168 MHz

OSD Chip: AT7456E

Sensors: DPS310 (barometric pressure)/ ICM42688 (gyroscope)/AT7456E (OSD)

Interfaces:Serial UART*6; PWM*11; I2C; BEC*3; SD Card Slot*1; External current detection

Rated Electrical Input: 2s-8s ((35V max))

Additional Support: Support all mainstream receivers and DJI HD, Snail HD, HDZERO, Analog OSD

Compatible with Additional Sensors: Airspeed sensors, GPS, compass, optical flow, etc.

Applicable Aircraft Types: Fixed-wing, multi-rotor, vertical takeoff fixed-wing, car, VTOL, etc.

Firmware:

BaldWingF405 FCR (INAV)

BaldWingF405 FCR (Ardupilot)

MATEKF405TE SD

Package Included:

1 x BaldwingRC F405 Flight Controller

Note: The Standard Edition does not have a soldered connector; the XT30 version has a soldered XT30 connector; the XT60 version has a soldered XT60 connector.
