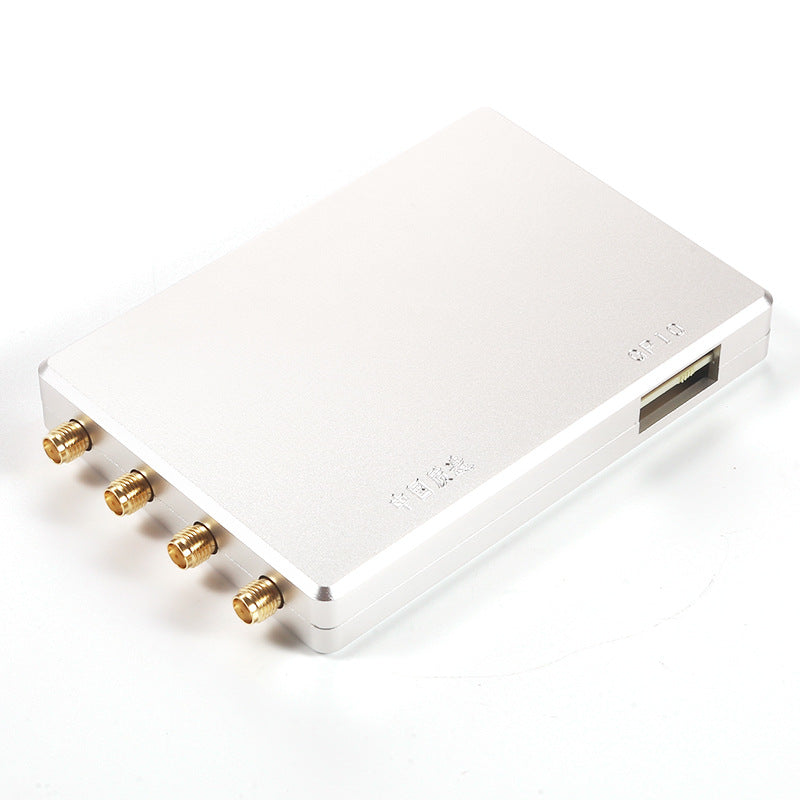

B220mini Wideband SDR 70MHz to 6GHz 2R2T 61.44MSPS Sampling Rate 12-Bit ADC DAC AI N78 Band Wireless Communication Device

Specifications:

Frequency range: 70MHz ~ 6GHz

Maximum sampling rate: 61.44 MSPS

Transmit and receive support: Up to 2R2T configuration with 12-bit ADC and DAC resolution

Transmit power: 15dBm at 1GHz, 10+dBm at 2.4GHz, and approximately 2dBm at 6GHz

AI testing capabilities on N78 band with commercial UE: Downlink bandwidth at ~125MHz and uplink bandwidth at ~24MHz

Features:

1. Wide Frequency Range

Supports an extensive frequency spectrum from 70MHz to 6GHz, enabling compatibility with diverse applications across various bands.

2. High Sampling Rate

Achieves a maximum sampling rate of 61.44 MSPS, ensuring precise data acquisition and processing for high-performance requirements.

3. 2R2T Configuration with 12-bit Precision

Features dual-channel transmit and receive functionality with 12-bit ADC and DAC resolution, delivering reliable signal quality.

4. Optimized Transmit Power Across Frequency Bands

Provides up to 15dBm at 1GHz and 10+dBm at 2.4GHz for steady transmission, with smooth performance even at 6GHz-band frequencies.

5. N78 Band Testing Capability

AI testing supports commercial UE with asymmetric bandwidth configurations—125MHz in downlink and ~24MHz in uplink—for advanced communication scenarios.

Package Included:

Board Only:

1 x B220mini

With Case Kit:

1 x B220mini DIY Kit
