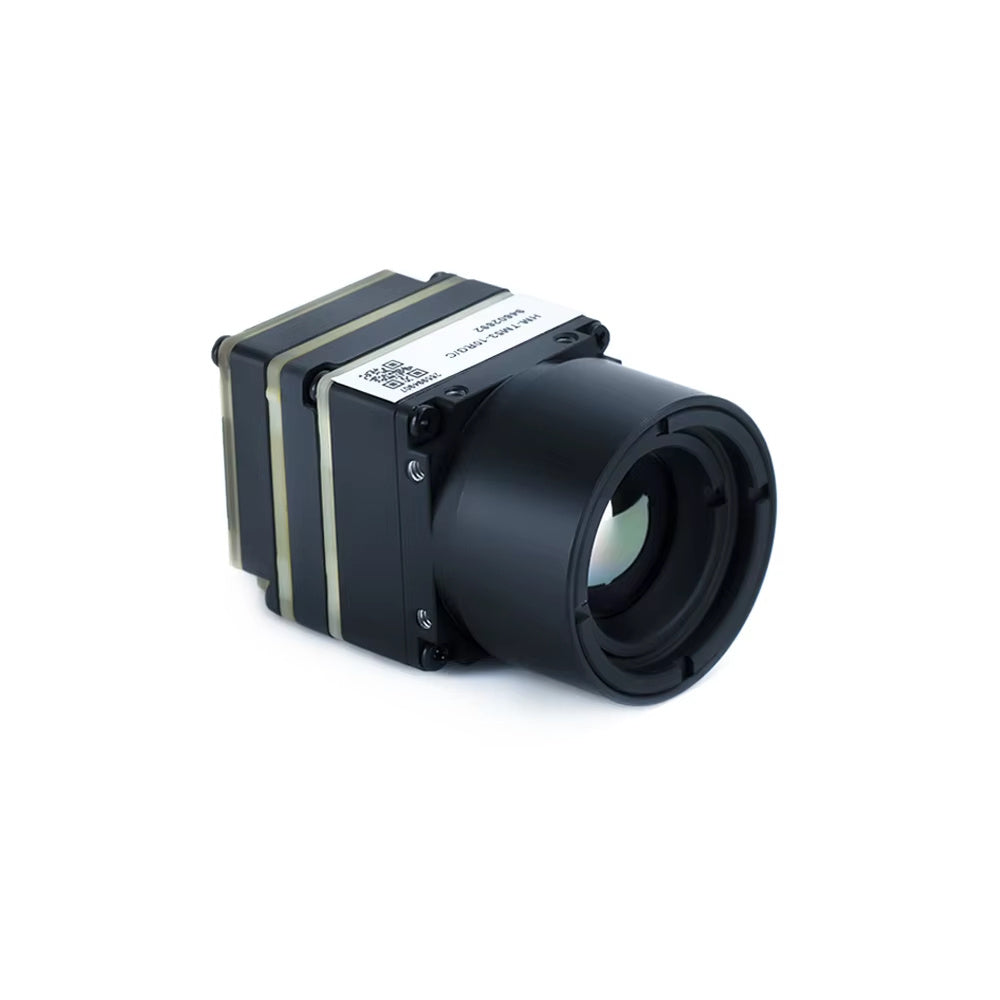

Axisflying High Res Mini Thermal FPV Camera Module 256*192 Options, OEM Series w/CVBS Analog Interface Low Power Consumption for Drones

Product
Axisflying TC256 Mini Thermal Imaging Camera – 256×192 High Sensitivity, Ultra-Low Power & Compact Integratable Thermal Module

Feature
- Professional-Grade Thermal Detection：

Equipped with high-performance vanadium oxide uncooled infrared focal plane detector, ultra-low 40mk NETD and 8–14μm spectral band deliver ultra-sensitive thermal imaging, capturing tiny temperature differences clearly in total darkness and low-visibility environments.
- Sharp & Smooth Imaging Performance：

Features 256×192 native resolution, 12μm ultra-fine pixel pitch and 25fps stable frame rate, paired with 9.7mm F1.0 large aperture lens and 18.1°×13.6° wide FOV, presenting detailed, fluent and wide-range thermal footage.
- Multiple Thermal Palettes & Accurate Correction：

Supports multiple color palettes including white heat, black heat, iron red and fusion modes to adapt to diverse detection scenarios. Built-in automatic, manual and background correction functions effectively eliminate image drift and ensure long-term stable and clear imaging.
- Ultra-Low Power & Wide Voltage Compatibility：

Ultra-low power consumption ≤0.8W greatly extends device working time. It supports 5V–16V wide voltage input and standard PAL CVBS analog video output, realizing plug-and-play signal transmission with strong compatibility.
- Micro Compact & Lightweight Design：

Super mini body size (20×20mm without lens, max 39×20×20mm overall) and ultra-light weight ≤23g, with ultra-small installation occupation, no burden for equipment integration.
- Extreme Environmental Adaptability：

Supports ultra-wide operating temperature range from -40°C to +80°C and storage temperature of -45°C to 85°C, maintaining stable working performance in high-temperature, low-temperature and harsh outdoor environments.
- Widely Integratable & Easy to Install：

Modular all-in-one structure with simple integration design, perfectly suitable for drone pod assembly, intelligent monitoring equipment, industrial detection and other commercial and industrial scenarios.

Specification:

Package included:

1 x Axisflying High Resolution Thermal Imaging Camera
