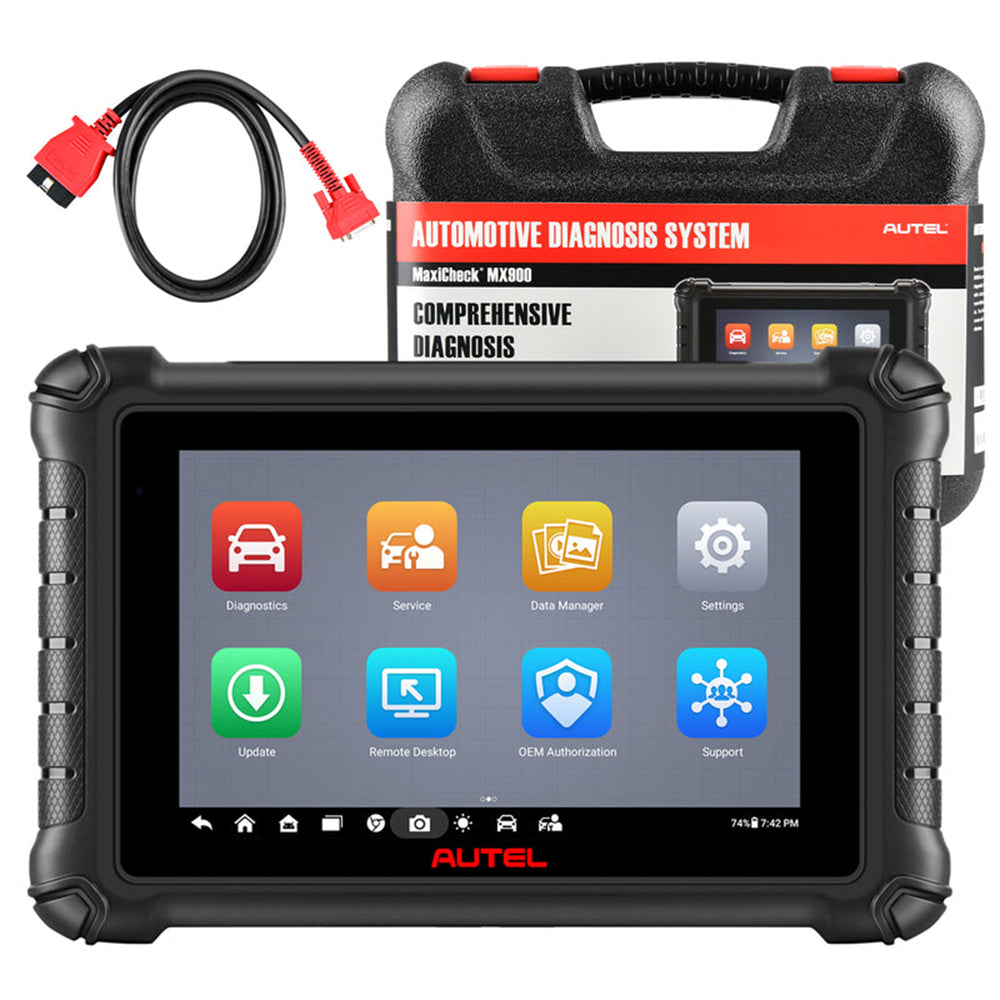

MaxiCheck MX900 OBD2 Automotive Diagnostic Scan Tool Active Tests 40+ Maintenance Services Support DoIP / CAN FD Protocols
Description
Specifications:
Model: MaxiCheck MX900
Product Name: Automotive Diagnostic Scan Tool
Item |
Specification |
Operating System |
Android 11 |
Processor |
Quad core Processor (1.8GHz) |
Memory |
4GB RAM & 64GB ROM |
Display |
8-inch LCD capacitive touchscreen with 1280×800 resolution |
Rear Camera |
8 MP |
Connectivity |
USB Type-C |
USB 2.0 | |
Wi-Fi | |
Mini SD card (supports up to 64GB) | |
Audio Input/Output |
Input: N/A |
Output: buzzer | |
Power and Battery |
3.7 V / 7700mAh lithium-polymer battery |
Charges via 5V DC power supply | |
Battery Charging Input |
5V / 3 A |
Operating Temp |
0 to 50°C (32 to 122°F) |
Storage Temp |
-10 to 60°C (14 to 140°F) |
Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, for Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD |
Feature:
1. OE-Level All Systems Diagnostic
Autel MaxiCheck MX900 diagnostic tablet scanner can access and scan all available electronic systems to read and clear codes, view live data stream, and retrieve ECU information.
2. Bi-Directional Control/Active Test
Thanks to the full bidirectional control feature, MX900 can do everything Autel MX808 does. Autel MX900 bidirectional scanner control various systems and components of the vehicle
3. 40+ Service Functions
Autel MaxiCheck MX900 car diagnostic tool also provides 40+ services including Oil Reset, EPB, SAS Reset, Diesel Particulate Filter Regeneration, Throttle Reset, ABS Bleed, Battery Registration, Injector Coding, WIN DR Roof,Cylinder, Headlamp and so on.
5. Enhanced Hardware
Autel MX900 is equipped with Android 11.0 OS, ROCKCHIP RK3566 CPU, 4G RAM & 64G ROM, 5X Faster, 8-inch LCD capacitive touchscreen and 8 MP Rear Camera.
6. Wide Coverage
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes after 1996. for Ford, for Ford(EU), for GM, for Chrysler, for Dodge, for Jeep, for BMW, etc.
7. AUTO VIN & AUTO SCAN
Autel MX900 diagnostic scan tool can quickly work on on specific vehicles to retrieve VIN information and perform comprehensive scan on all available systems for efficient and accurate diagnosis and services.
8. Extensive Functions
Support Pre & Post Scan, DoIP & CAN FD Protocol and Wifi Print, while MX800 does not support.
9. 1-Year Warranty
Offering 1-Year Warranty and 1-Year-free software update for Autel MX900.
Package Included:
1 x Main Unit
1 x Main Cable
1 x Quick Reference Guide & Packing List
1 x Power Adapter
1 x Mini USB Cable
1 x Soft Cloth
1 x Carrying Case
