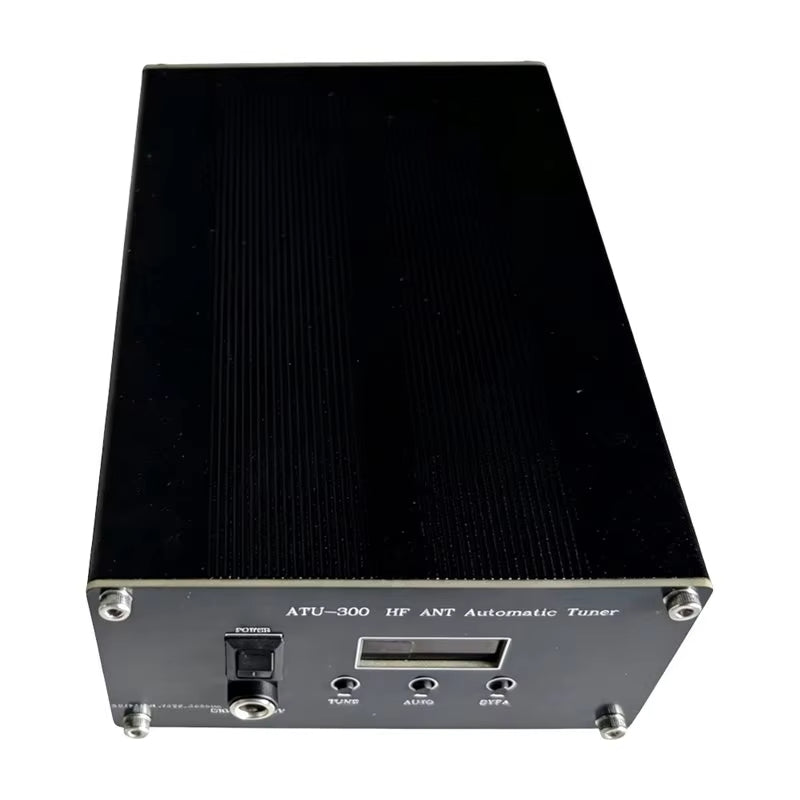

ATU-300W Automatic Shortwave Antenna Tuner Impedance Matcher 1.8-54MHz 5Ω-1200Ω 350W Peak OLED Display For GP Long Wire Antennas - Black

Specification

Product Name: ATU-300W Automatic Shortwave Antenna Tuner Impedance Matcher

Frequency Range: 1.8-54MHz full band

Impedance Matching Range: 5Ω-1200Ω

Antenna Compatibility: Compatible with coaxial GP antennas and long-wire antennas

Inductor: 12.4uH magnetic core inductor

Capacitor: 6KV high-voltage capacitor

SSB Peak Power: 350W

Maximum Continuous Carrier Power: 200W

Display: 0.91 inch OLED

Display Content: Power, standing wave ratio, LC matching parameters, frequency tuning count

Memory Function: Power-off memory

Enclosure Material: Aluminum alloy

Installation: Supports vehicle-mounted, indoor, and outdoor shortwave equipment use

Connection: Easy wiring, self-grounding, dedicated terminal for long-wire antenna

Power Supply: DC11V-14V

Power Consumption: Low standby power consumption

Tuning Mode 1: Automatic tuning, automatically matches standing wave greater than 1.8, tuning target SWR ≤ 1.5

Tuning Mode 2: Manual tuning, long press TUNE button to start matching

Bypass Mode: Disconnects matching circuit, only tests standing wave and power

Memory Capacity: Stores 50 current frequency point matching memories

Applicable Modes: SSB, CW, AM, FM, FT8 and other shortwave analog and digital communications

Features

1) Covers 1.8-54MHz full band with 5Ω-1200Ω impedance matching range.

2) Supports coaxial GP antennas and long-wire antennas for flexible use.

3) Built with 12.4uH magnetic core inductor and 6KV high-voltage capacitor.

4) 0.91 inch OLED shows power, standing wave ratio, LC parameters, and tuning count.

5) Supports automatic, manual, and BYPASS operation with 50-group memory storage.

Package Included

1x Main unit

1x Power cable

1x Banana plug
