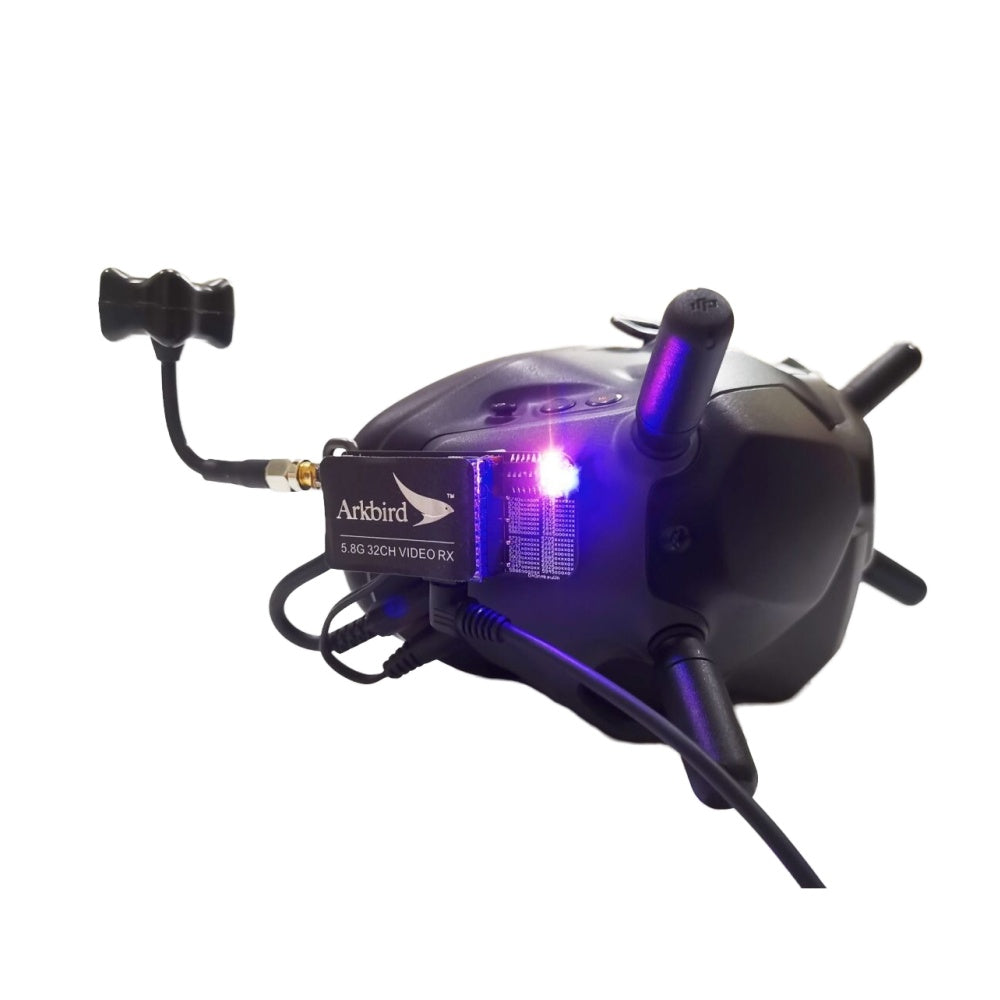

Arkbird HD Digital Signal Convert to Analog Signal 5.8Ghz 8CH Module FPV Receiver for DJI Goggles V1 V2

• Type: Analog Signal
• Brand: Others
• RC Drone Spare Parts: FPV Receiver
• Frequency: 5.8GHz

Notice Due to the stock shortage of 32-channel modules, the updated version is now equipped with 8-channel modules.The appearance and performance remain unchanged. Please select a frequency in the 4th channel area as shown in the figure for pairing(only the first 3 DIP switches need to be adjusted).All other operations are exactly the same as the original 32-channel module. Available frequencies:5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945  Arkbird-DJI has high-sensitivity 5.8G 8CH receiver connecting the analog signals to HD Goggles , allowing DJI glasses to support analog image transmission, plug and play, and easy to use. Just pull it out when you don' t need the analog. Compatible with DJI v1 and v2 Goggles .

Specification

Input voltag: 7.4-17.6S (with DJI power cord)

Output voltag: the same as the input, while supplying power to DJI Goggles . Module size with receiver: 60*28*12MM

Test

Distance test: Compared with the Eagle Eye dual-antenna receiver, the distance is more than 90%. Sensitivity is good. Comparison test of different antennas: the FatShark antenna (clover antenna) has the best distance, and the TBS Black Sheep 5.8G antenna is similar to the stick antenna. (Note: For reference only, different electromagnetic environments will affect the distance)

Package Included

1 x Receiver (antenna is not included)

Notice：Product has changed to 8CH
