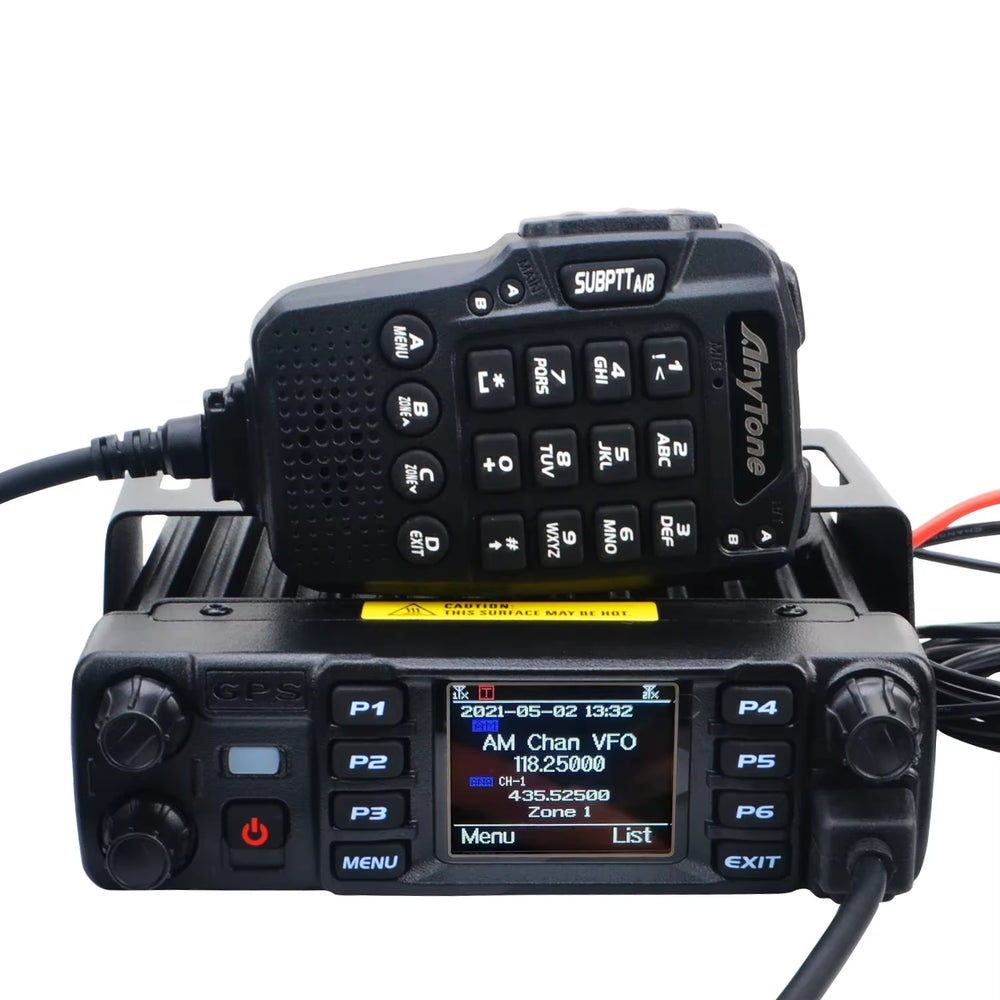

Anytone AT-D578UV Plus VHF UHF Air Band Receive GPS APRS bluetooth PTT DMR Digital Repeater Function FM Mobile Radio AES256 - Black
Description
Specifications:
General | ||
Frequency Range |
Air Band (Receive only):108-136MHz VHF:136-174MHz, UHF:400-480MHz |
|
Channel Capacity |
4000 channels |
|
Channel Spacing |
25KHz (Wide Band),12.5KHz(Narrow Band) |
|
Phase-locked Step |
5KHz,6.25KHz |
|
Operating Voltage |
13.8V DC ±15% |
|
Frequency Stability |
±2.5ppm |
|
Power Supply Current Requirement (Min) |
15 Amps |
|
Operating Temperature |
-20°c~+60°c |
|
Size |
188*141*40mm(radio only) |
|
Weight |
1.04kg (without Accessories) |
|
Receiving Part | ||
Wide band |
Narrow band |
|
Sensitivity |
≤0.25µV |
≤0.35µV |
Digital Sensitivity |
0.3uV/-117.4dBm (BER 5%) 0.7Uv/-110dBm(BER 1%) |
|
Adjacent Channel Selectivity |
≥70dB |
≥60dB |
Spurious Emission |
≤-57dB |
≤-57dB |
Spurious Rejection |
≥70dB |
≥70dB |
Blocking |
84dB |
|
Audio Power Output |
≥45dB |
≥40dB |
Audio Distortion |
≤5% |
|
Audio Power output |
2W/8Ω |
|
Transmitting Part | ||
Wide Band |
Narrow Band |
|
Power Output |
Turbo |
55W at 144-148MHz 40W at 430-440MHz |
High |
UHF/VHF 25W |
|
Middle |
UHF/VHF 10W |
|
Low |
UHF/VHF 1W |
|
Modulation |
±5.0KHz @25KHz |
±2.5KHz @12.5KHz |
Adjacent Channel Power |
≥70dB |
≥70dB |
Hum & Noise |
≥40dB |
≥36dB |
Spurious Emission |
≤-36dBm |
≤-36dBm |
4FSK Digital Modulation |
12.5KHz(data)7K60FXD, 12.5KHz (data+voice)7K60FXE |
|
Audio Distortion |
≤5% |
|
Error Rate |
≤3% |
|
Features:
-Enhanced version provided with "air-band AM"receiver frequency range 108-136MHz
-With USB Programming Cable
-144/430MHz Digital & Analog
-1.7''color TFT Panel
-2.5K,5K,6.25K,10K,12.5K,20K,25K,30K,50K total of 9 frequency steps
-With built-in bluetooth and GPS
-With hands-free bluetooth PTT
-AES256 Encryption
-DTMF/5TONE/2TONE
-ESI DMR Tier I and II compatible
-Dual-mode: Digital and Analog cross-band repeater function: Analog-analog/analog-DMR Mix/DMR-DMR
-Dual Rx simultaneously(Analog+DMR or analog+analog)
-4000Channels
-Full duplex (hands-free receiving and transmitting)
-10,000 Talk Groups with 500,000 digital contacts
-Automatic detection of digital or analog signals
-Ranging function between radios with GPS
-Roaming function
-GPS with analog & Digital APRS Location reporting
-FM Radio
-Voice Recording, the voice record is designed for security use purposes. Each call will be saved as a separated recording file with DMR ID and time details .The standard voice 10-hour record allows in the digital channel only. The optional 500 hours voice record allows in both digital and analog channels(it requires to implement of an optional recording board).
-Weather Alarm
-Scrambler function
-Compander
-Cooling Fan open
Package Includes:
1× AT-D578UV PlusTransceiver
1× Speaker MicrophoneSM-0153
1× DC Power Cable with Fuse Holder DYX-0006
1× USB Programming Cable QT-0019
1× Mobile Mounting Bracket SJXN-0071
1× Screw sets
1× Spare Fuses
1× English User Manual
1× BT PTT button
1× Velcros
1× USB charging Cable for Bluetooth PTT Button
