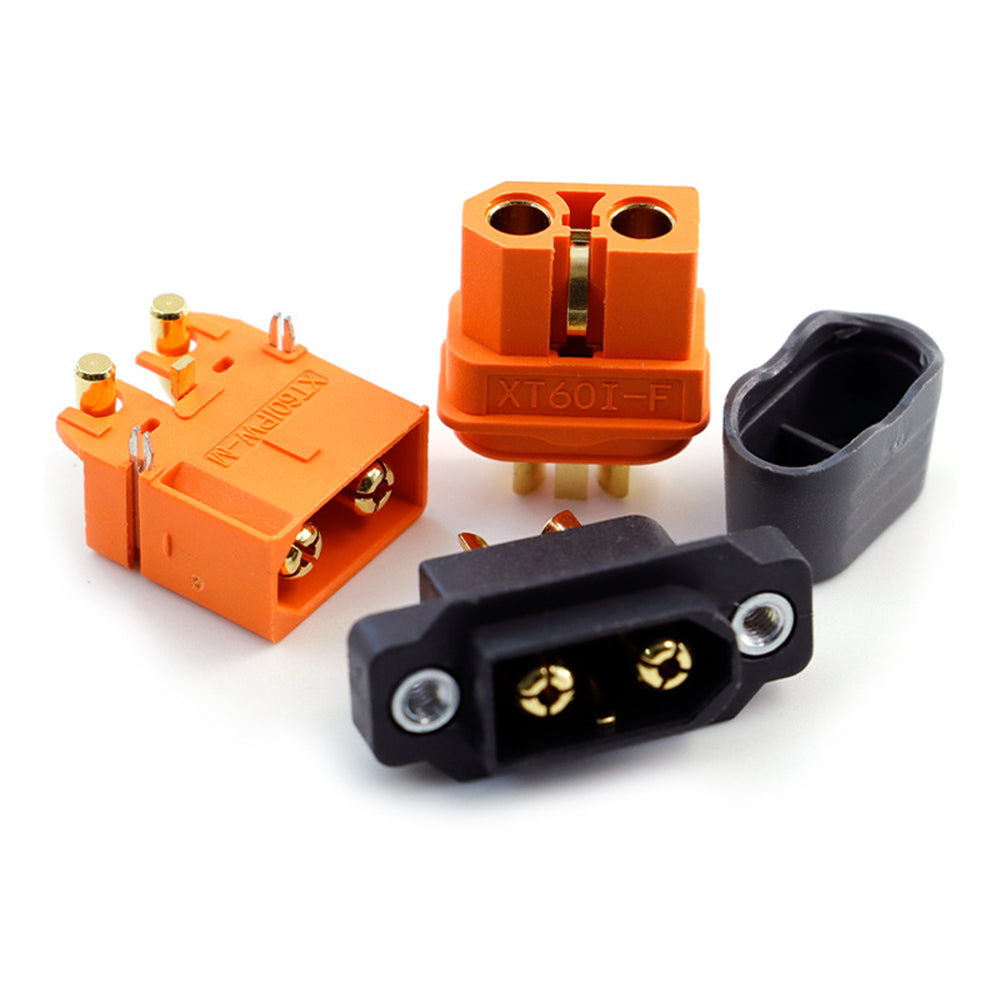

XT60I-F / XT60IPW-M / XT60IE-M Series Connector Plug with Signal Pins for RC Battery

Specification:
XT60I (Z) Product Series:
Item Name: XT60I (Z) Connector
Rated Current: 35A MAX (12 AWG / ΔT < 85°C)
Signal Pin Current: 1A
Withstanding Voltage: 500V DC
Insulation Resistance: ≥ 2000 MΩ
Contact Resistance: ≤ 1.0 mΩ
Service Life: 100 Times
Salt Spray Test: 48h
Protection Rating: IP40
Operating Temperature: -20°C to 120°C
Flammability Rating: UL94 V-0
Housing Material: PA
Pin/Socket Material: Copper Alloy
Color: Orange
Plating: Gold Plated

XT60IE-M Product Series:
Item Name: XT60IE-M Connector
Rated Current: 35A MAX (12 AWG / ΔT < 85°C)
Withstanding Voltage: 600V DC
Insulation Resistance: ≥ 2000 MΩ
Contact Resistance: ≤ 1.0 mΩ
Durability: 100 Times
Salt Spray Resistance: 48h
Protection Rating: IP40
Operating Temperature: -20°C to 120°C
Flammability Rating: UL94 V-0
Housing Material: PA
Pin/Socket Material: Copper Alloy
Color: Black
Plating: Gold Plated

Features:
XT60I (Z) Product Series
1. This series features a 180° cable exit, solder-type, injection-molded and assembled 2+1 pin connector. It serves as a current standard component for power lithium battery connections and is compatible with the solder-type XT60IE-M connector.
2. Applicable to wire-to-wire connection scenarios involving lithium batteries, controllers, and similar devices.

XT60IE-M Product Series
1. This series features a 180° cable exit, solder-type, injection-molded and assembled 2-pin waterproof connector. It is suitable for panel mounting and serves as a current standard component for power lithium battery connections.
2. Applicable to wire-to-wire connection scenarios involving lithium batteries, controllers, and similar devices.

Package Included:
1 x Amass XT60IPW-M / XT60I-F / XT60IE-M / XT60I-F(Injection Molding Model)
