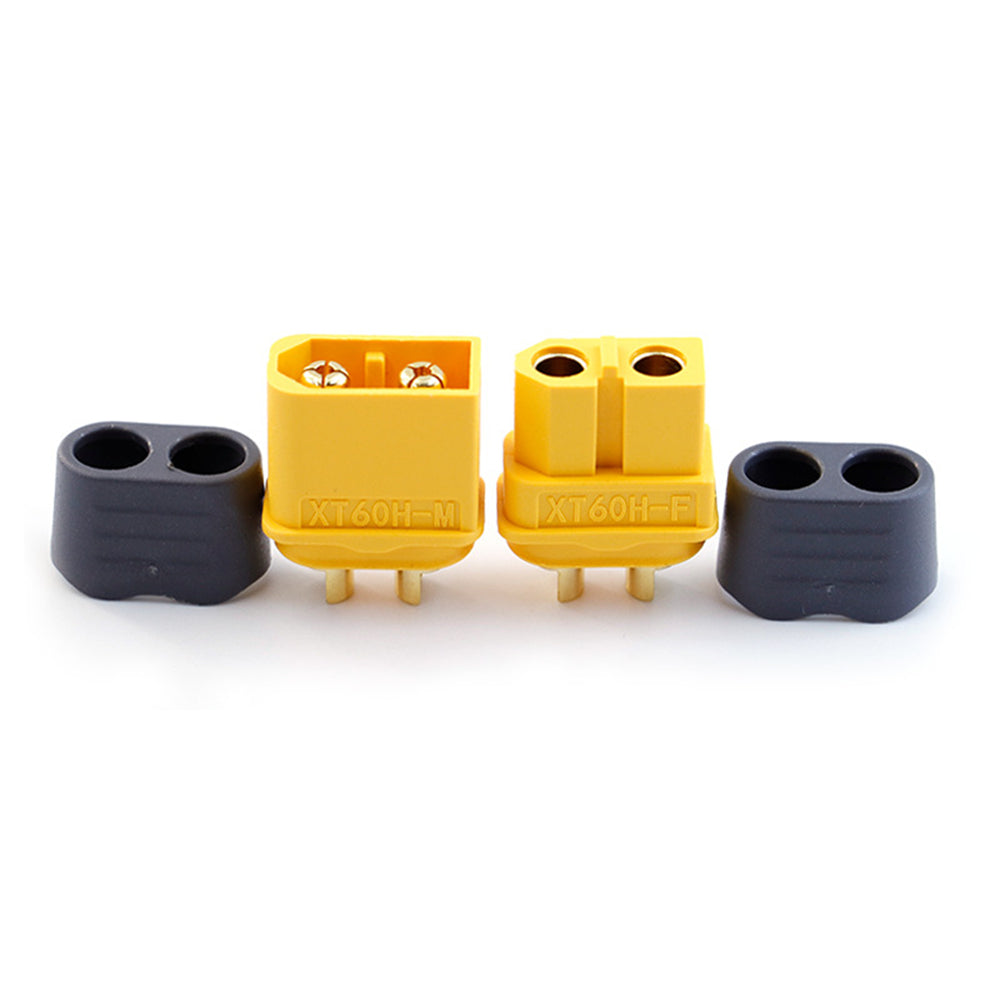

XT60H Connector Plug With Sheath Female & Male for RC Battery

Specification:
Item Name: XT60H Connector
Rated Current: 35A MAX (12AWG / ΔT < 85°C)
Withstanding Voltage: 500V DC
Insulation Resistance: ≥ 2000 MΩ
Contact Resistance: ≤ 1.0 mΩ
Service Life: 100 Times
Salt Spray Test: 48 hours
Protection Class (IP Rating): IP40
Operating Temperature: -20°C to 120°C
Flammability Rating: UL94 V-0
Housing Material: PA (Polyamide)
Pin/Socket Material: Copper Alloy
Plating: Gold-Plated

Features:
XT60H Series Products
1. This series features a classic design: an injection-molded, 2-pin connector with a 180° cable exit orientation and solder-type terminals. It includes an optional rear cover and currently serves as a standard component for high-power lithium battery connections. Additional variations—such as wire-to-board designs and locking-clip designs—are also available.
2. Suitable for use in wire-to-wire connection scenarios involving components such as lithium batteries and electronic speed controllers (ESCs).

Package Included:
1 x Amass XT60H Connector
