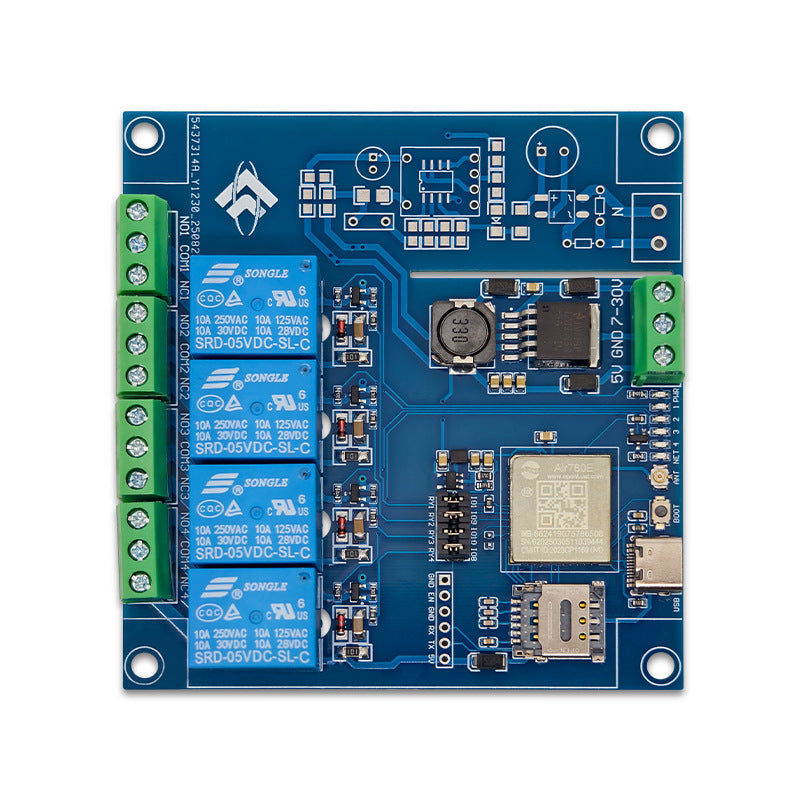

AIR780E 4G Full Netcom Four-Channel Relay Module LTE Cat.1 bis Communication Board Low Power Module Type-C DC7-24V GPIO Control Nano SIM Slot
$13.99
In Stock
Description
Specifications:
Model: AIR780E 4G Full Netcom Four-Channel Relay Module
Module: LTE Cat.1 bis communication module (AIR780E)
Connectivity: Compatible with 4G networks, supports multiple operators and services
Control Interface: GPIO1, GPIO9, GPIO10, GPIO8
Ports: Type-C (5V) + 2.54mm pin (5V) + DC7~24V
Dimensions: 93 x 87 mm
Mounting Hole Diameter: 4 mm
Weight: 78g
Features:
1.Versatile Development Options: Supports both AT command-based development and direct development using the AIR780E module, allowing flexibility for different projects.
2.Energy Efficient Design: Equipped with a low-power AIR780E module that reduces energy consumption with a sleep power as low as 600μA.
3.Nano SIM Integration: Easy-to-install flip SIM card holder supports nano SIMs for seamless connectivity.
4.Network Status Indicators: Built-in network status indicator light powered by AIR780E module (GPIO27) for real-time connectivity status.
5.Multiple Power Sources: Includes Type-C port, 2.54mm pin (5V), and DC7-24V input for compatibility with a variety of power sources and flexibility in installation.
Package Included:
1 x AIR780E 4G Full Netcom Four-Channel Relay Module
