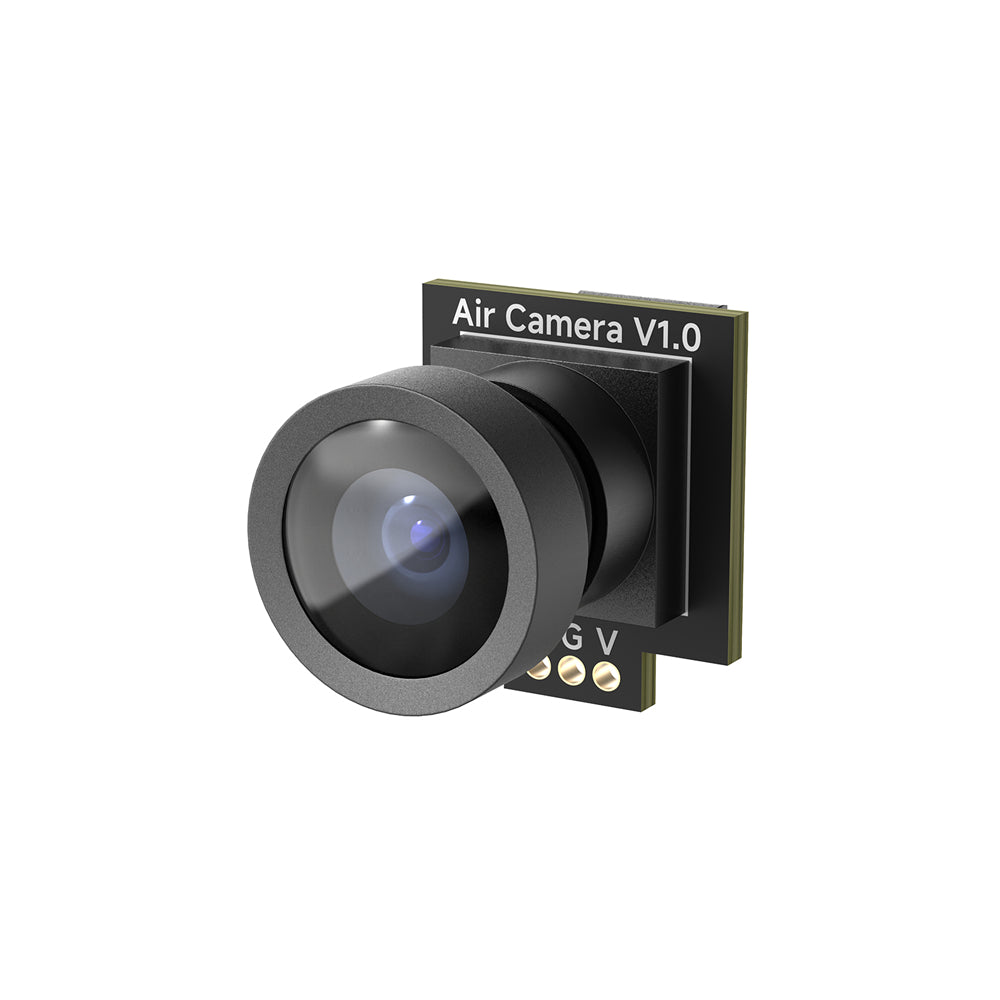

Air Camera 1/4.5" CMOS Sensor 600TVL FPV Camera FOV 173°/141° NTSC 16:9/4:3 Glass Lens Vivid Colors Air Camera For RC Drone

*Choice of Two Aspect Ratios (16:9 / 4:3) for Personalized Flying Vision This BETAFPV Air Camera comes with selectable 16:9 and 4:3 screen ratios to match diverse flight scenarios and flying preferences. The upgraded 16:9 widescreen option provides 33% wider horizontal vision compared to the classic 4:3 ratio, enabling you to record more track details and surroundings. It perfectly fits tight racing gates, successive turns and complicated freestyle moves, supporting quicker responses and more accurate control.

* Dual Ultra-Wide FOV for All Scenarios
Comes with two professional field-of-view options: 173° ultra-wide FOV for 16:9 and 141° standard FOV for 4:3. Eliminates visual dead angles completely, delivers immersive panoramic vision, and greatly improves flight safety during high-speed racing and indoor freestyle flying.

* Upgraded High-Efficiency CMOS Sensor — Vivid Color & Stable Heat Control
Built-in new-generation integrated CMOS image sensor with optimized color processing technology. It presents richer, more natural and stable color restoration with ultra-low power consumption. Effectively reduces operating heat, avoids overheating-induced color distortion and image flickering, and maintains consistent excellent imaging performance for long-duration flights.

* Premium Precision Glass Lens — Sharper & Durablee Imaging
Adopts high-grade precision glass lens, far superior to ordinary plastic lenses. It features higher light transmittance, clearer picture details and stronger image stability. More importantly, the glass lens is scratch-resistant and wear-proof, effectively resisting daily abrasion and crash damage, keeping your video always crisp without blurred lens degradation.

* Ultra-Light 1.48g Mini Body — Zero Burden for Tiny Whoop Drones
Extremely lightweight at only 1.48g with a tiny 11*13*12.5mm compact size. It will not affect drone balance, agilityy or flight endurance, perfectly matching Air Whoop and Meteor Whoop tiny micro drones, fully retaining the flexible flight characteristics of mini FPV aircraft.

* Low Power Consumption & Stable Voltage Adaptation
Supports DC 5–12V wide voltage input with only 60mA low working current@5V. Low power loss saves battery power, brings longer flight time, and ensures stable and continuous camera operation without jitter or black screen.

* High-Definition 600TVL Clear Imaging & 40.59dB SNR
Equipped with 600TVL horizontal resolution and 40.59dB high signal-to-noise ratio. It filters out image noise effectively, delivers clean, delicate and high-definition real-time FPV footage, and restores true scene colors in both indoor and outdoor environments.

* Plug-and-Play Easy Installation
Comes with standard JST-0.8mm connector and 40mm reserved cable length. Perfectly compatible with mainstream flight controllers including Matrix 1S 5IN1 & Matrix 1S 5IN1 II. No complicated wiring, easy installation and replacement for micro FPV builds.

Professional Usage Note
The 16:9 wide-screen mode requires matched FPV goggles or display screen support. Please confirm your display device compatibility before switching to 16:9 ratio to avoid image deformation.

Perfect Compatible Combo Parts (Not Included)
Best matched with Air II Canopy, Matrix 1S 5IN1 / Matrix 1S 5IN1 II flight controllers, perfectly tailored for Air Whoop and Meteor Whoop micro FPV drones for optimal overall performance.
