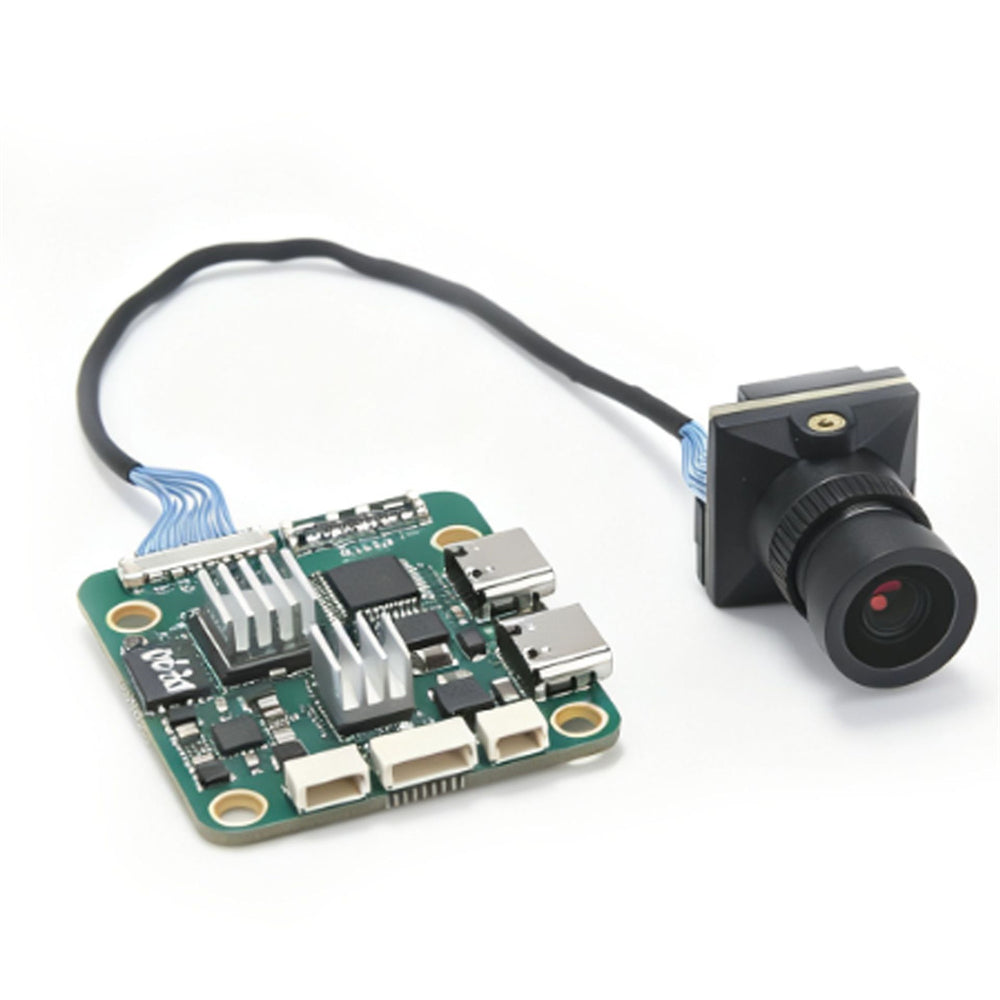

AI Auto-Tracking 1080P 60FPS HD Camera with 4-8S Flight Controller Support BetaFlight 2in1 Module for 5-18 Inch RC FPV Racing Drones
Description
Specification:
Product Name: Flight Controller Camera Module
Parameter Category |
Parameter Name |
Specification |
Basic Specifications |
Supported Model |
5-18 inch Quadcopter |
Built-in Flight Controller Firmware |
BetaFlight (No additional flight controller required) |
|
Operating Voltage |
4S-8S LiPo |
|
Module Power Consumption |
2W |
|
Weight |
10g |
|
Camera & Vision |
Supported Camera |
1080P Digital Camera |
Focal Length |
4mm |
|
Frame Rate |
60FPS |
|
Camera Mount Angle |
20 - 60° |
|
Field of View (FOV) |
96° |
|
Video Output |
CVBS |
|
Starlight Night Vision Function |
Yes |
|
AI Performance |
AI Locking Distance |
Vehicle: 450m | Person: 150m |
Minimum Tracking Pixels of Target |
20×20 Pixels |
|
Max Tracking Speed of Moving Target |
>80km/h |
|
AI Guidance Operation Mode |
Mode 1 Intelligent Assist Lock (CH10): AI box smart-attach locking, optimized for vehicles and personnel
Mode 2 AI Forced Lock (CH11): Crosshaiir forced lock, supports all target types (moving + static) |
|
Peripherals & Connection |
Supported Receiver Protocol |
ELRS(CRSF) |
ESC Protocol |
DSHOT 300/600 |
|
Servo |
2-Channel PWM Servo Control Signal |
|
Environmental Adaptability |
Operating Temperature |
-25°C ~ 55°C |
Package Included:
1 x Flight Controller Camera Module Set
