Adjustable Frequency Signal Generator Dual Channel Output 0.1Hz-99999Hz 7.83Hz Schumann Wave External Antenna Board Cascade Support

Specification

Product Type: Adjustable frequency signal generator mainboard

Waveforms: Sine wave and square waves output

Antenna Waveform: Sine wave

Power Interface: Android interface, compatible with Micro USB/Type-C

Power Supply Voltage: DC 5V

Rated Power Consumption: <1W

Default Frequency: 7.83Hz

Frequency Adjustment Range: 0.1Hz - 99999Hz

Sine Signal Voltage Amplitude: 3V

Square Waves Voltage Amplitude: 5V

Main Unit Size: 15.8 x 10.9 x 2 cm

External Antenna Board Size: 10 x 10 cm

Output Design: Dual-channel audio interface

Cascade Support: Up to 10 external antenna boards

Features

1) Wide adjustable frequency range from 0.1Hz to 99999Hz for low-frequency to high-frequency signal output.

2) Supports sine wave and square waves output to match different signal applications.

3) Dual-channel audio interface allows connection to an external antenna board for expanded signal coverage.

4) Default 7.83Hz Schumann resonance frequency with one-key reset for quick operation.

5) Supports cascading connection, with one main unit driving up to 10 external antenna boards.

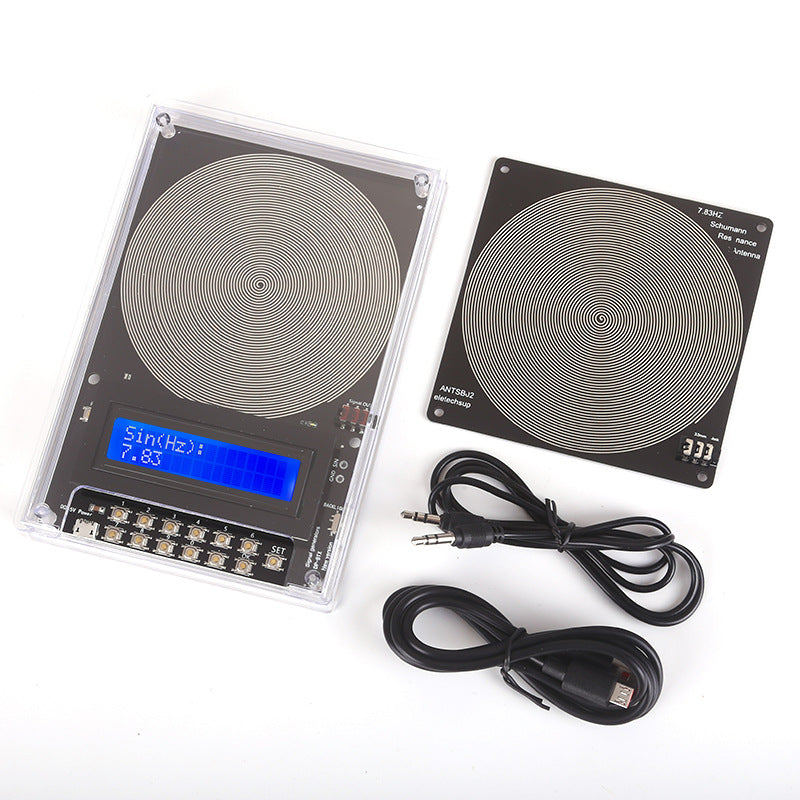

Package Included

1x Frequency Generator Main Unit with Case

1x External Antenna Board

1x Android Power Supply Cable
