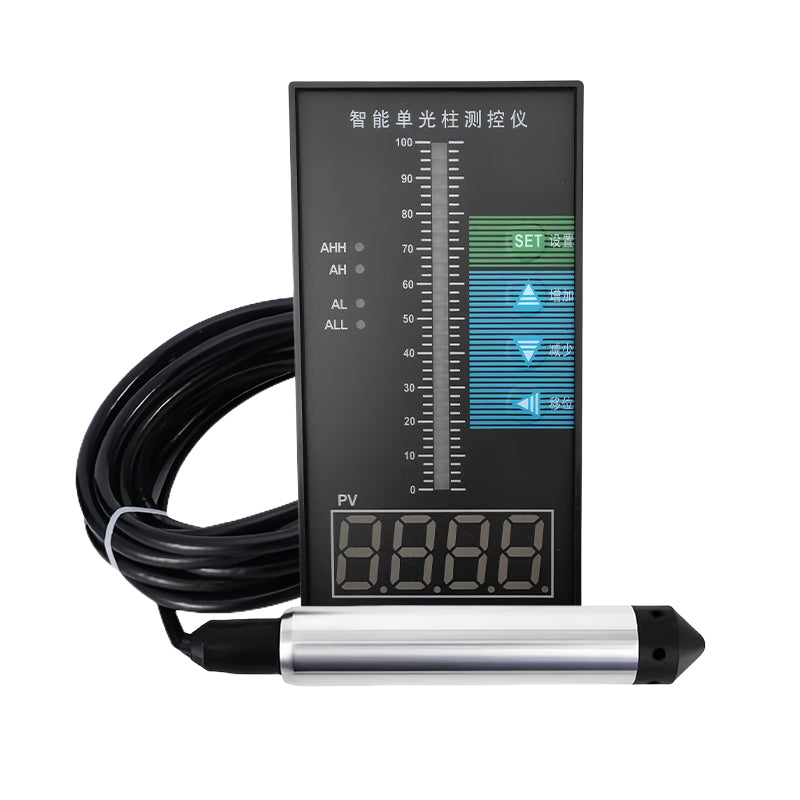

5-Meter Liquid Level Transmitter with IP65 Protection LED Display Anti-Clogging Design Quick Response Functionality Ideal for Deep Water Well Measurements

Features:

1. High Accuracy Liquid Level Transmitter: With integrated imported chips resulting in a measurement accuracy of 0.5%, this 5-meter level meter offers precise conversion circuitry and 0.01% linearity for the most accurate measurement results.

2. hard and Anti-clogging Design: Equipped with a 3mm pressure hole and a filter screen, the level meter is designed to resist clogging, ensuring seamless operation and longevity.

3. IP65 Protection: The integrated package features IP65 protection level. It offers a high-quality protective sleeve for joint protection, ensuring high-density packaging and anti-penetration for assured results irrespective of conditions.

4. Fast-Responding and Anti-blocking: Known for its integrated probe functionality, this transmitter provides a quick response to liquid level changes, and its anti-blocking properties ensure accurate measurements consistently.

5. Advanced LED Display: Fitted with a high-brightness LED digital display and high-resolution light column, this level meter provides a clear and intuitive reading of the measurement control values.

Specifications:

Measuring Range: -1999 to 9999

Measurement Accuracy: 0.5%FS ± 1 word

Power Supply: 220V (DC24V optional)

Signal Input: Universal signal

Control Output: Four-way relay

Dimensions: 80×160mm

Opening Size: 76×152mm

Panel Size: 75x149mm

Package Included:

1 x 5-meter Input Type Liquid Level Transmitter

1 x High-quality Protective Sleeve
