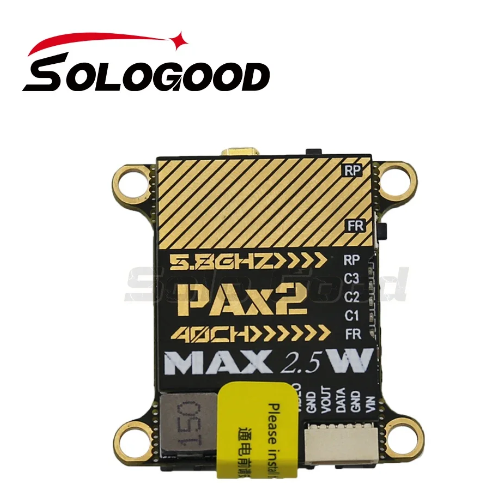

5.8Ghz SoloGood Max 2.5W 40CH OSD VTX 0/25/400/800/1500/2500mW Adjustable MMCX FPV Transmitter For DIY RC Long Range RC Drone

• Type: N/P Switchable
• Brand: Others
• Camera Resolution: Without
• RC Drone Spare Parts: FPV Transmitter
• Frequency: 5.8GHz
• Applicable User: Universal
• Interface Type: MMCX-Straight
• Application: Other
• Power: 0-200mw

Product Specifications:

Output Power: 0-25-400-800-1500-2500mW

Input Voltage: 6-36V

Parameter adjustment Mode: Double Buttons /OSD

0perating Current: less Than or equal to 450mA@12V, 800mW

Less Than or equal to 850mA@12V,2500mW

Output Frequency: 40CH(A-B-E-F-R)

Antenna Interface: MMCX

Installation Hole: 30.5 * 30.5mm

Video Format: NTSC/PAL. automatic Detection

Weight: 12.5g (excluding antenna and Power Cord)

Size: 35.5 * 36.5 * 10mm

Features:

1. Self-check Function of Power Supply Can Quickly Check Whether The image Transmission is Normal.

2. Frequency Locking Function, Which Will not Interfere With the Companion When Starting The Machine.

3. 0-2.5W Power is adjustable, Allowing you to Switch Seamlessly in Different Environments.

Package Included:

1 x SoloGood 5.8G 2.5W VTX

1 x MMCX -SMA feeder

1 x 4pin wire
