Feature:
- 1.2W Max Power + 4-Gear + Pit Mode 200/500/800/1200mW adjustable power with Pit Mode, 5.8G 48CH full band, stable analog video for short racing & medium-range flight. - 7-36V Ultra-Wide Voltage (2S-6S) Adapts to all mainstream drone battery systems, no extra voltage regulator needed, flexible power connectivity for all FPV builds. - 8.6g Extreme Lightweight + 35×23.5mm Compact Ultra-slim size adds negligible payload, preserves drone agilityy and high-speed maneuverability for FPV racing. - Integrated Optimized Heat Sink Efficient thermal management for prolonged high-power operation, prevents overheating and ensures consistent signal output.

- Low Current Consumption Energy-efficient performance at 12V input (600mA max @1.2W), saves battery power and extends flight time. Specification:

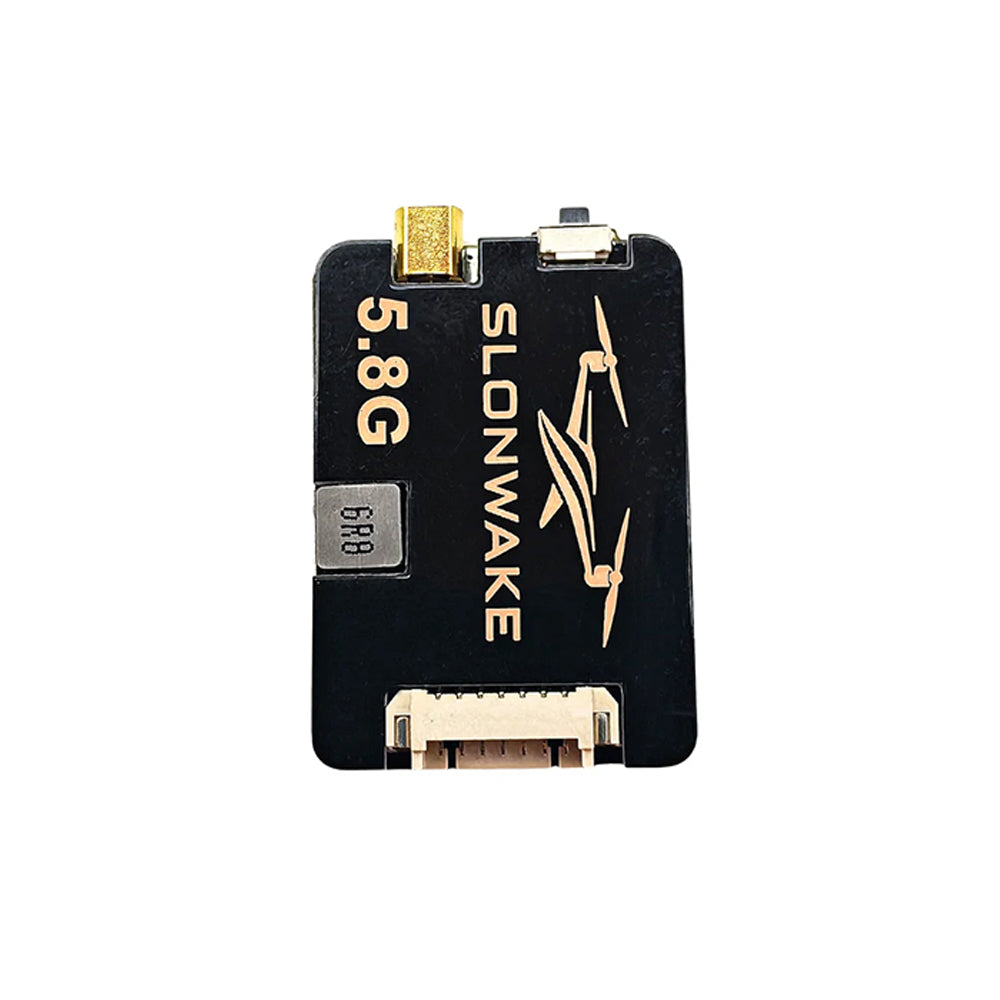

Model: 5.8GHz 1.2W VTX
Frequency: 5.8GHz
Channels: 48CH
Power Output: 200mW / 500mW / 800mW / 1200mW (Pit Mode enabled)
Operating Voltage: DC 7-36V
Current Consumption (12V): 240mA (200mW), 320mA (500mW), 410mA (800mW), 600mA (1200mW)
Weight: 8.6g
Dimensions: 35mm x 23.5mm

Wireless Frequency Table (MHz) - 48CH

Package Included:
1 x FPV Transmitter
1 x Antenna
1 x Wire Cable Harness
