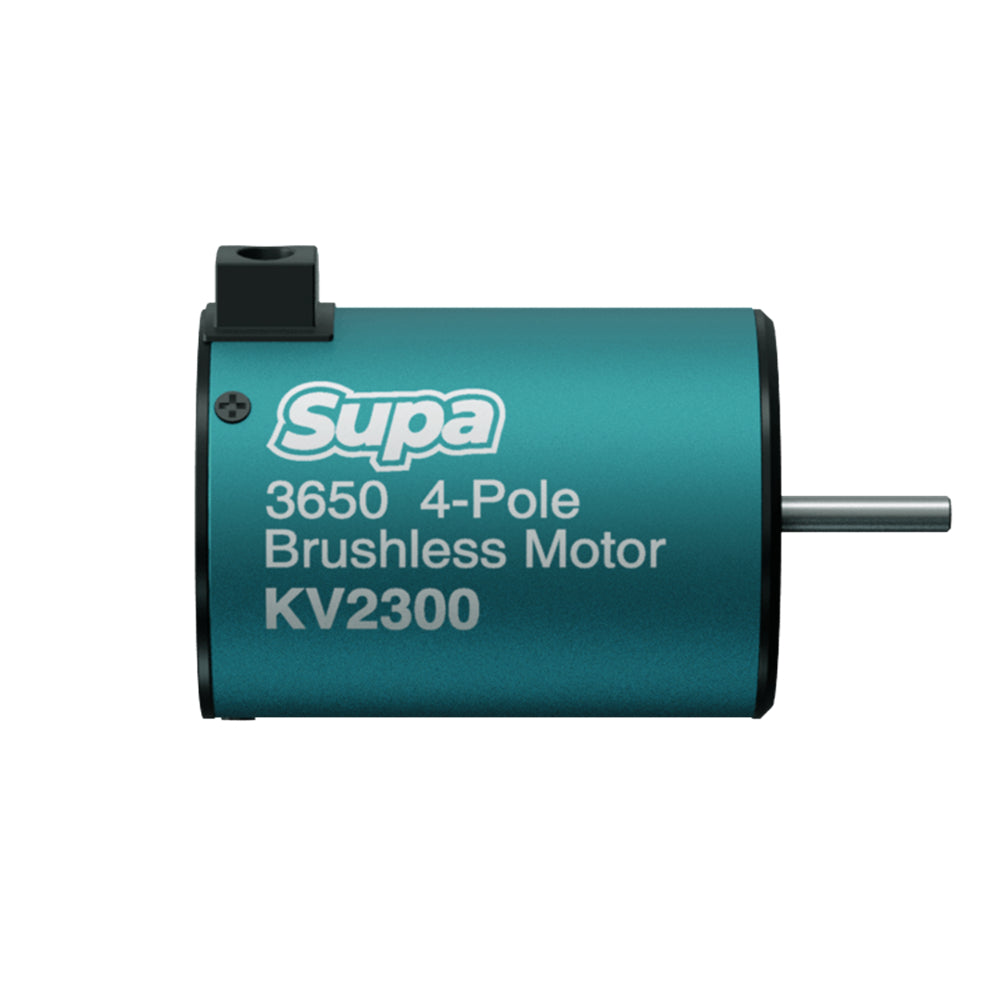

400035-03 FuriaX Supa 3650 Sensorless Brushless Motor 2300KV / 3100KV / 3600kV / 4000KV / 5400KV 4-Pole Suitable for FuriaX Supa 60A ESC
Description
Description:
The SkyRC FuriaX Supa 3650 is a versatile 1/10 scale brushless motor. Compared to conventional two-pole motors, its four-pole, 12-slot design offers significantly higher torque and smoother power delivery. The result: faster acceleration and more stable climbs, along with more precise control, even at low RPMs.
Thanks to factory-soldered 4.0mm gold connectors, no soldering is required- simply plug it in! The ABC phase leads ensure clear and tidy cable routing!
Feature:
- Maximum performance at high temperatures up to 220 °C
- Precision-balanced, replaceable rotor for optimal stability
- Plug & Play, easy installation
- Fits most 1/10 scale chassis!
Specification:
Model: FuriaX Supa 3650 Motor
KV: 2300KV / 3100KV / 3600kV / 4000KV / 5400KV
Type: Brushless, sensorless
Recommended controller: FuriaX Supa 60A
Operating temperature: -10°℃-80°℃
Operating humidity: 20%-90% (non-condensing)
Storage temperature: 0°℃-50°℃
Storage humidity: 30%-60% (non-condensing)
Case diameter: 36mm
Case length: 50mm
Area of application: 1/10
Weight:
2300KV 3100KV: 180g±5g
3600KV 4000KV 5400KV: 150g±5g
KV |
Parameter |
2300KV |
Voltage: < 22V No-load Current: 1.0A Load Current: 41A Max. Power: 900W Max. Rotor(mm): Ø15*Ø5.00*21 |
3100KV |
Voltage: <16V No-load Current: 1.5A Load Current: 56A Max. Power: 900W Max. Rotor(mm): Ø15*Ø5.00*21 |
3600kV |
Voltage: <13V No-load Current: 1.7A Load Current: 69A Max. Power: 900W Max. Rotor(mm): Ø15*Ø5.00*16 |
4000KV |
Voltage: <12V No-load Current: 2.0A Load Current: 75A Max. Power: 900W Max. Rotor(mm): Ø15*Ø5.00*16 |
5400KV |
Voltage: <9.0V No-load Current: 3.5A Load Current: 100A Max. Power: 900W Max. Rotor(mm): Ø15*Ø5.00*16 |
Package included:
1 x Motor
