    30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
    30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones 30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones 30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones 30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones 30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones

    30.5x30.5mm Mamba F405 MK2 V2 3-6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones

    $26.03
    In Stock

    Description

    Description:

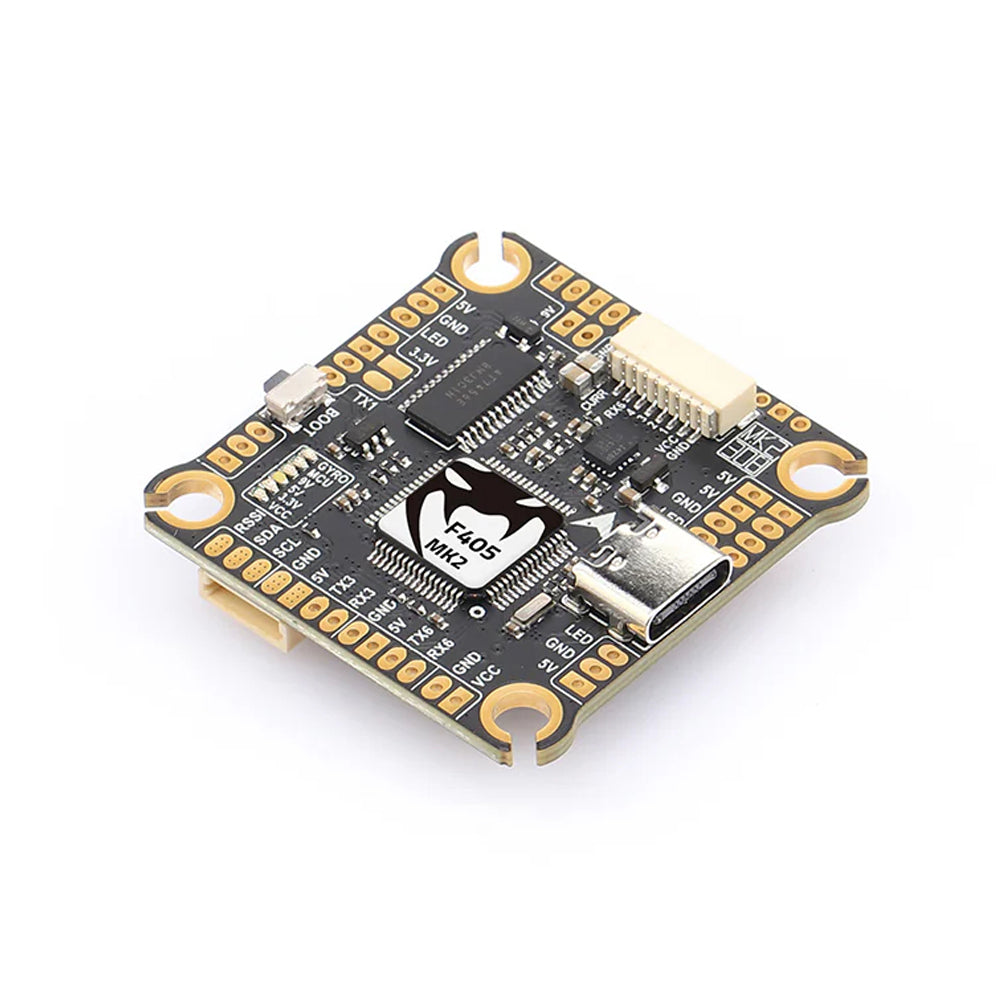

    Mamba F405 MK2 is an affordable F4 flight controller with ICM-42688-P gyro. The flight controller has 16MB memory for blackbox, OSD, 5V and 9V BEC. It uses a USB-C connector to connect to a PC. The board also has a connector for easy connection of digital video transmitters and an I2C bus for connecting a compass or barometer. For easy LED installation, pads are available on four sides of the board. The board can be powered by 3-6S batteries and is protected by a TVS diode.

    Specification:
    Item Name: F405 MK2 V2 Flight Controller
    Processor: STM32F405
    IMU: ICM-42688-P
    Blackbox memory: 16MB
    Number of UARTs: 3
    BEC: 5V@2.5A, 9V@2A
    Input voltage: 3-6S
    BF Target: FURYF405OSD
    Mounting holes: 30.5x30.5mm M3
    Size: 38x38x7mm

    Package Included:
    1x Flight controller
