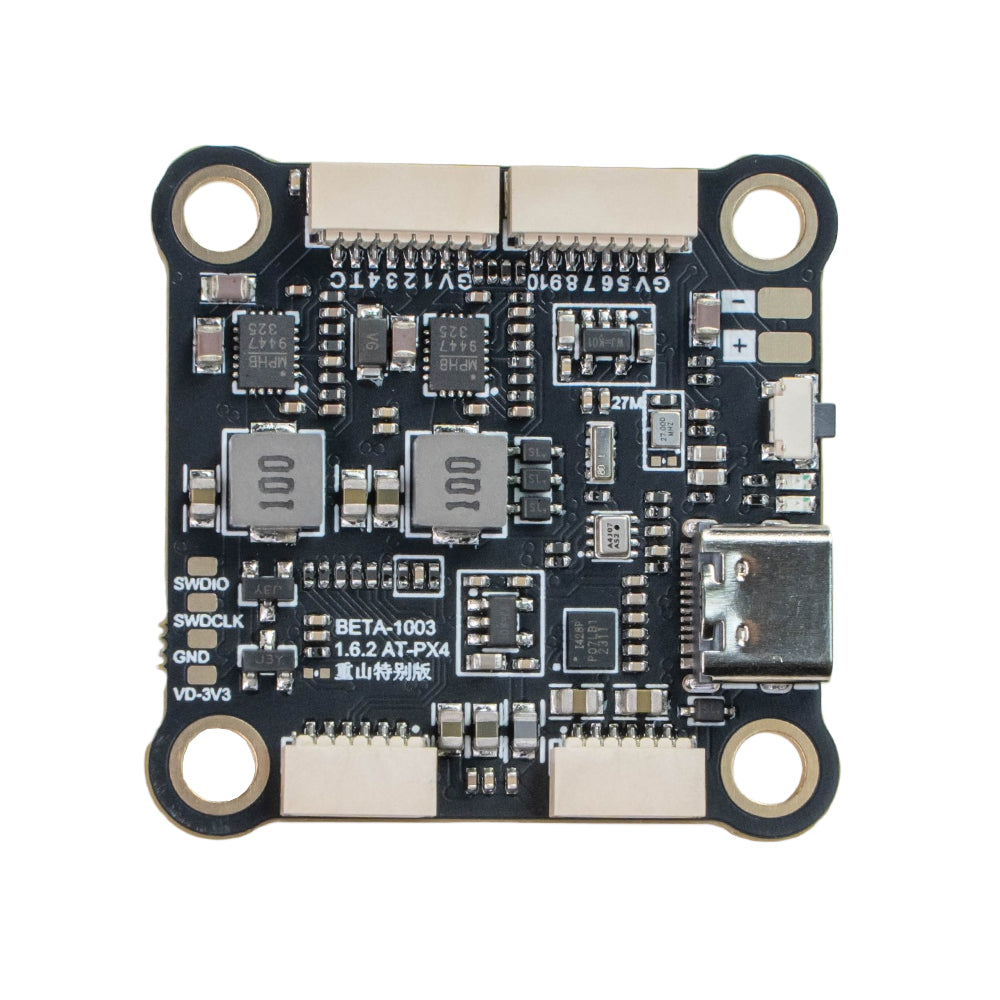

30.5mm*30.5mm AT32 F435VMT7 3-6S Flight Controller with 5V 9V BEC Output for RC FPV Racing Drone

Feature:
- Support X8 mode, with two SH1.08P interfaces, support X8 direct plug.
- Support analog image transmission/for DJI HD image transmission/Avatar HD image transmission, with HD image transmission direct plug interface.
- Support SBUS input signal, Pbus/Wbus/lbus/elrs (CRSF)/TBS, do not support PWM signal and PPM signal input !
- All 5 uart interfaces are led out on the interface, and 5 uart serial devices can be connected, including GPS/elrs/optical flow/image transmission parameter adjustment/camera parameter adjustment/mavlink telemetry/4G image transmission.
- Lead out one l2C, support external magnetic compass.
- 5 LED interfaces, support RGB-LED, support four-arm lights, so that the aircraft routing is clear and organized.

Specification:

MCU: AT32F435 VMT7 OSD: AT7456E FLASH: W25NO1G BlackBox: W25Q128JVPIQ Barometer: DPS310 Gyroscope: 42688-P BEC: 9V 4A 5V 4A Dual BEC Bec/3.3V: 0.6A Bec/5V: 3.5A Bec/9V: 3.5A Input: 3-6S (10-26.1V) TVS: Onboard 28V TVS Fre: 288MHZ Uart: 5/10(set) Mounting Hole: 30.5X30.5mm Material: PCB Weight: 7.10 Default port: UART1 (Receiver) UART3 (DJI/HD Transmission)

Package Included:
1 x AT32 F435VMT7 Flight Controller
