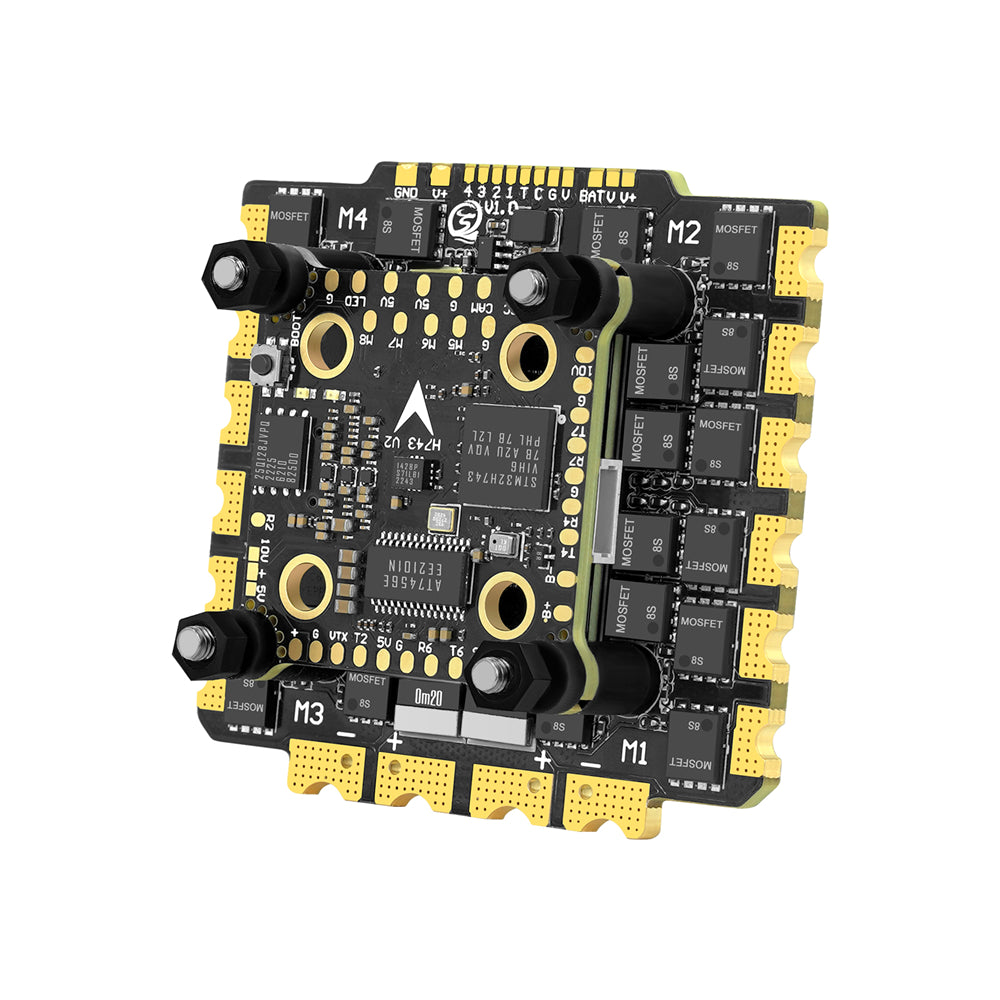

30.5*30.5mm H743 V2 & E130 G2 / E160 G2 Stack H743 ICM42688P FC 8S 12S 130A / 160A ESC with AM32 / BLHeli_32 for RC FPV Racing Drone
Description
Parameters of Product:
Model: H743 V2 & E130 G2 / H743 V2 & E160 G2 Stack
Product Name |
SEQURE H743 V2 FC |
Processor |
STM32H743 |
Gyroscope |
ICM-42688-P |
Barometer |
BMP280/DPS310/DPS368 |
OSD Chip |
AT7456E |
Black Box |
16MB |
Firmware Type |
Betaflight (default), INAV, ArduPilot |
Firmware Name |
SEQUREH7V2 |
Input Voltage |
4-8S Lipo/LiHV |
BEC Output |
5V/2.5A，10V/2A |
UARTS |
6 |
Control Motor |
M1-M8 |
LED |
WS2812 LED Strip |
Buzzer |
Support |
ESC Telemetry |
RX8 |
USB |
Type-C |
Installation Hole Distance |
20x20mm,Φ4mm/M3 | 30.5x30.5mm,Φ4mm/M3 |
Product Size |
36.5*36.5*6mm |
Product Weight |
7.3g |
Model |
E130 G2 ESC |
E160 G2 ESC |
Processor |
STM32G071 |
|
Working Voltage |
4-8S（14-35.2V）Lipo / LiHV ，4-12S（14-53V）Lipo / LiHV |
|
Continuous Current |
130A |
160A |
Peak Current |
220A |
280A |
Firmware Version |
AM32 or BLHeli_32 |
|
Support Protocol |
Dshot（All），PWM，Oneshot，Multishot,etc. |
|
Telemetry Return |
YES |
|
Galvanometer |
YES |
|
BEC |
16V 2A |
|
Mounting Hole Spacing |
30.5*30.5mm，ø4mm/M3 |
|
Product Size |
54*57*7mm(L*W*H) |
54*57*10mm(L*W*H) |
Product Weight |
43g |
66g |
Product Description:
SEQURE H743 V2 FC
1. High-Performance STM32H743 Processor: 480MHz operation frequency delivers ultra-fast control response and powerful processing capability for demanding flight tasks.
2. ICM42688P Gyroscope & Onboard Barometer: Precise attitude sensing with stable control; integrated OSD and 16MB black box for comprehensive flight data recording.
3. 6 UARTs & 8 Motor Outputs: Supports most peripheral devices and easily builds X8 configurations for versatile multi-rotor setups.
4. Plug-in VTX Connector with Dual BEC: Independent 10V output allows direct plug-and-play connection for DJI O3/O4/O4 Pro and analog VTX systems.
5. 4–8S Wide Voltage, Compact Design: Supports 20mm and 30.5mm mounting holes; mini form factor fits racing, freestyle and aerial photography frames.
E130 G2 / E160 G2 4IN1 ESC
1. STM32G071 Processor, AM32|BLHeli_32 Firmware: 32-bit high-performance chip ensures rapid response, precise switching and smooth throttle control with zero desync.
2. 4–12S Wide Voltage, Massive Current Output: E130 G2-130A continuous / 220A peak per channel; E160 G2-160A continuous / 280A peak per channel.
3. Low-Resistance MOSFET & Copper Bar PCB Design: Ultra-high efficiency conversion with multi-layer thick copper boards maximizes current capacity and heat dissipation.
4. Built-in Telemetry & Full Signal Protocol Support: Real-time motor RPM, temperature and current data; auto-detects DShot, PWM, OneShot and MultiShot signals.
5. Dual-Pad Parallel Battery Input, 30.5mm Mounting: Easy soldering with greater current-carrying capacity; standard mounting pattern fits most frames.
Package Included:
1 x SEQURE H743 V2 FC
1 x E130/E160 G2 4IN1 ESC
2 x 63V 1200UF Electrolytic Capacitor
1 x XT90H-M Male Connector
10 x M3*10mm Shock Absorbing Washer (black)
4 x M3*30mm Screw
4 x M3 Nylon Nut
1 x 30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable
2 x 30AWG 100mm Single-head SH1.0-4P Flat Cable
2 x 8AWG 150mm Power Cable (black/red)
1 x 60mm Length 12095 5V Buzzer
